13
14

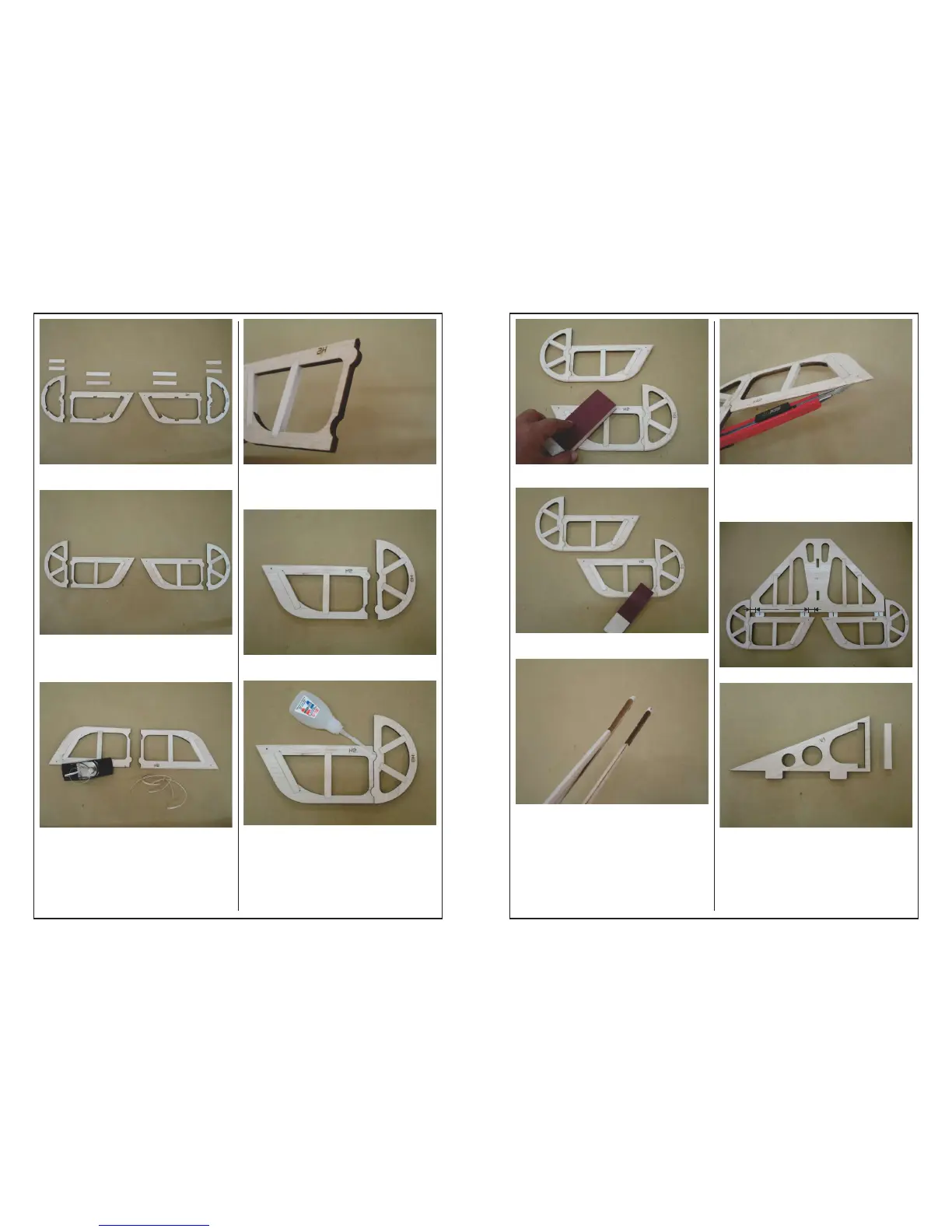

Place H2, H3, H6 and H7 on the working
table for assembling elevator.
Try to fit the H6 into the slots on the H2; fit
H7 into the slots on the H3. Drop some
instant glue to secure the H6 and H7 in
place. Don't secure H2 to H3 right now.
Use wooden planning tool to trim the tips
into V shape on H2 (angle is around 30
degree on one side).
Close view of the V shape on the tip. It is
also workable to use sanding paper to trim
the tips into V shape; but be careful, don't
trim too much.
Place H2 and H3 combinations on the
working table.
Try to fit the H2 into H3 and use instant
glue to secure them in place.
Use sandingpaper to trim the surface.
Don't trim too much.
Use sanding paper to trim the edges into
round edges (R5).
Close view of the round edges.
Please refer to the drawing on next step
and mark the correct locations for hinges
on the elevator and horizontal. Use hobby
knife to cut the hole (width is around
0.5mm) for inserting the hinge (0.35mm).
Try to fit the hinges into the holes.
Place V1 and H6 on the working table for
assembling the vertical.
10mm10mm
