Contents Supplied

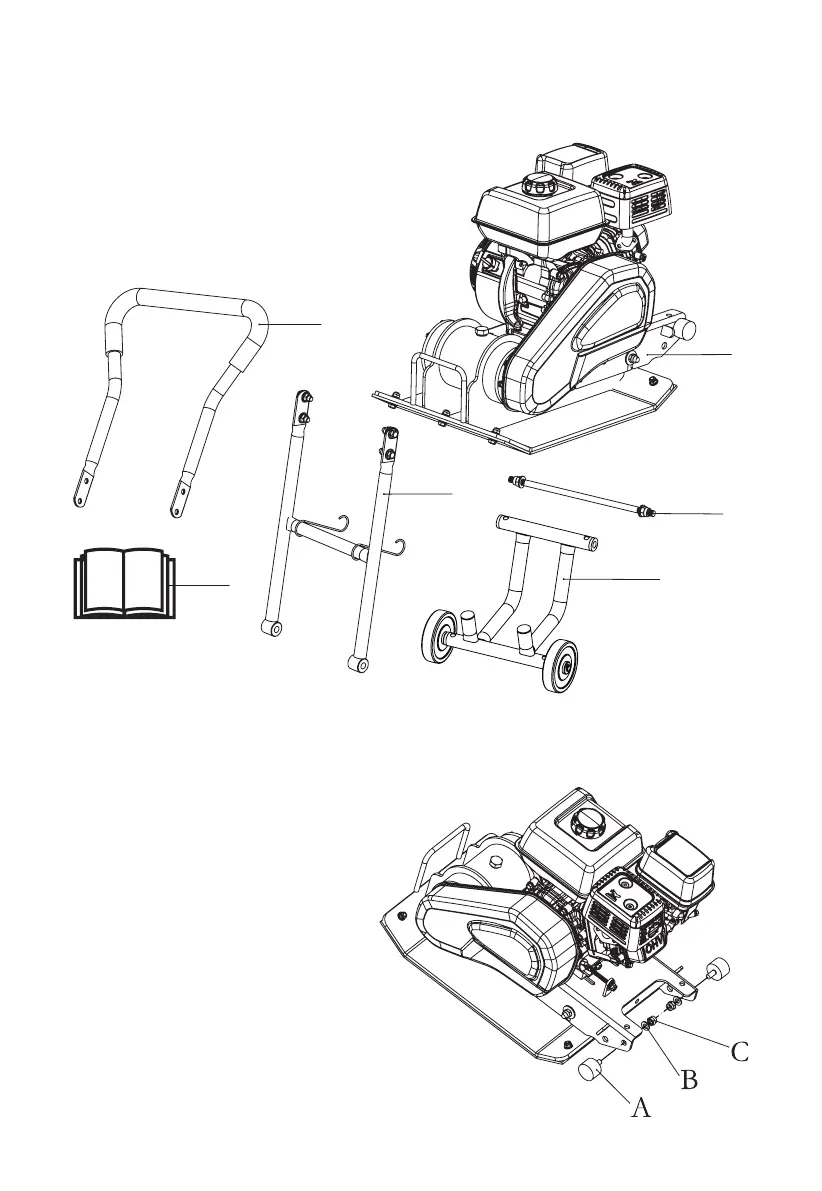

The plate compactor comes partially assembled and is shipped in carefully packed carton. After
all the parts have been removed from the carton, you should have:
1. Plate Compactor Chassis with Engine and Transmission
2. Handle
3. Handle Bracket
4. Handle Connecting Shaft
5. Wheels Kit
6. Operator's Manual
Assembly
Following the assembly directions below, you will assemble the plate compactor in a few
minutes.
1. Handle Bracket & Wheels Kit
Remove the two handle rubber blocks (A), then
remove the two M10 flat washers (B) and the
two M10 hex lock nuts (C).
3
2
1
4
6
5
