6

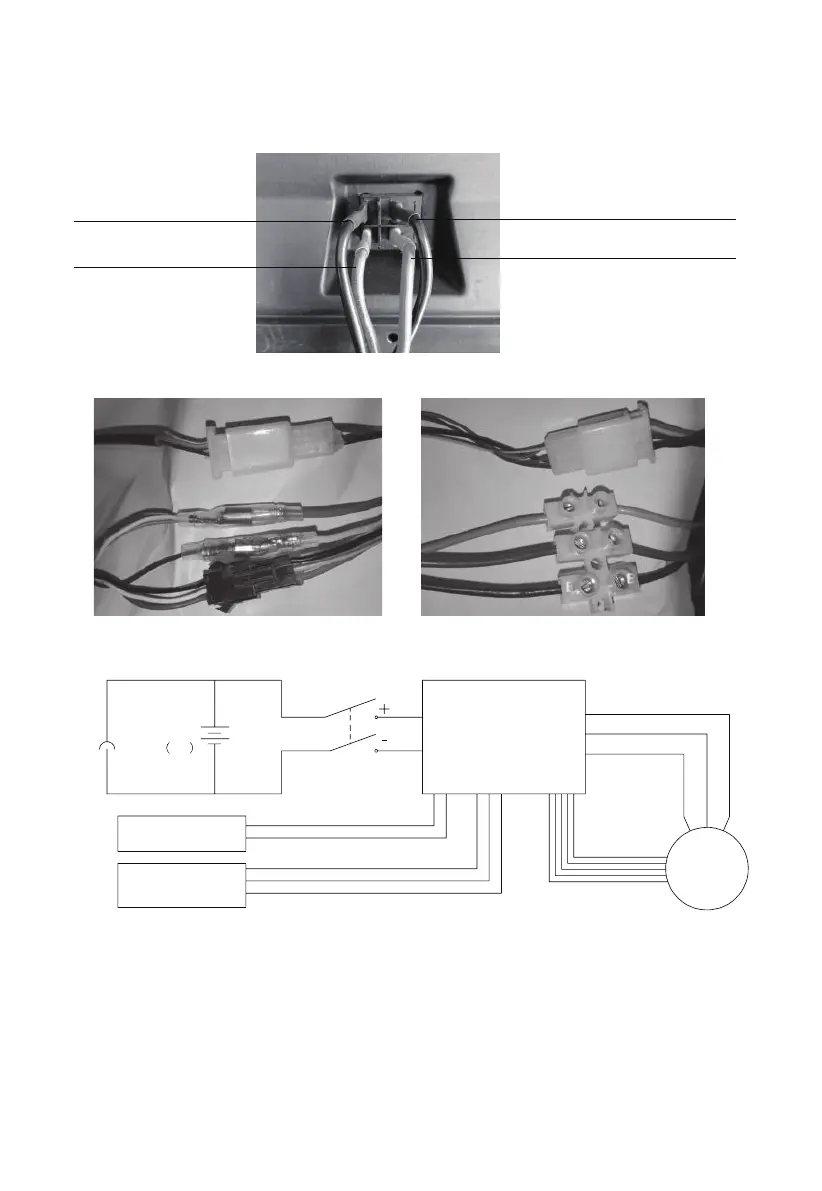

Power Switch Connection
Caution: Incorrect power switch cable connection may cause a short-circuit, it may lead
battery destroy, fir or physical danger.
OPERATION
Preparation before operation
1. Before operation, check that all bolts are fastened tightly, and the ball head rod is secured.
2. Be sure that the tires are free of defects such as cracks and bulges, and the tire pressure is
kept at 30±2psi (2.1±0.1kg/cm2).
3. Be sure the battery is charged in full, and check whether all switches are operated
effectively.
4. Perform no-load test run, to confirm that the Swivel wheel rotates flexibly and entire unit
moves forward and backward freely.
Battery “-”（Black）
Battery “+”（Red）
Controller “-”（Black）
Controller “+”（Red）
Contol Switch Controller Motor Connection
Y
G
B
Y
G
B
Electrical schematic diagram
Power switch
Steering switch
Speed regulating
switch
Controller
Phase line
Holzer line
Battery
pack
24KXS
M
B Y G
To Next Page
