Super SD - Page 5

4
•HD Specication
Testing Fluid: Water
(
SG
1.0)
50HZ/60HZ
1000
5
10
300200 400 500 600 700 800
1000
5
10
300200 400 500 600 700 800
15 15
G
J
A
F
H
D
I
K
B
h
g
f
e
d
i
j
b
k
a
m l

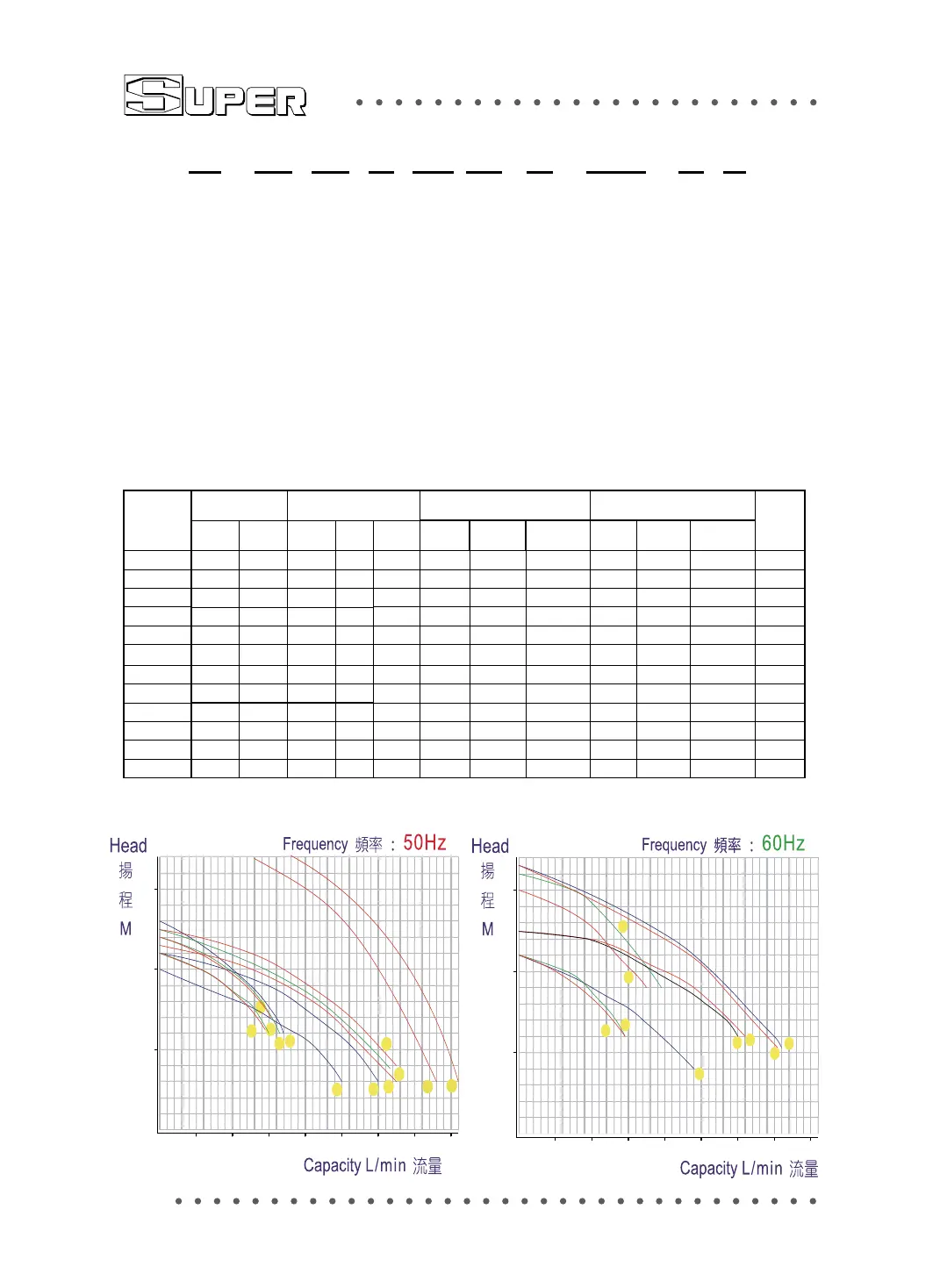

•HD Performance Curves
•Model
(1) TYPE -HD
(2) In-Outlet
40-1.5", 50-2",65-2.5"
75-3"
(3) Power (HP)
1-1HP,
2-2HP, 3-3HP
5-5HP, 7.5-7.5HP
(4) Pole
4-4P, 2-2P
(5) Elastomer
V - VITON
N - NBR
E - EPDM
(6) B-No Check Lid
(7) L - Low head
H - High head
(8) Seal Combination
CCH, SCH,SSH
(9) Frequency
5-50HZ, 6-60HZ
(10) N-Normal
S-Special
Model
In/Outlet
(mm)
Power 50HZ 60HZ
Weight
kg
In Out Phase HP POLE Curve
Max.Head
M
Max.Flow
L/min
Curve
Max.Head
M
Max.Flow
L/min
40014 40 40 3ø 1 4 a 11 320 A 11 340 30
40024 40 40 3ø 2 4 b 12 360 B 15 400 39
50014 50 50 3ø 1 4 d 11 330 D 11 340 30
50024 50 50 3ø 2 4 e 12 360 B 15 400 39
50034 50 50 3ø 3 4 f 13 380 F 16 440 43
65014
65 65 3ø 1 4 g 10 520 G 11 500 31
65024
65 65 3ø 2 4 h 11 620 H 12.5 650 40
65034
65 65 3ø 3 4 k 11.5 680 K 16.5 740 43
75024
75 75 3ø 2 4 i 12.5 660 I 12.5 680 40
75034
75 75 3ø 3 4 j 11.5 700 J 16.5 760 44
65052
65 65 3ø 5 2 m 26 760
75072
75 75 3ø 7.5 2 l 30 820
HD - 40 02 4 V B L - SSH - 6 N
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10)
(8) Fixed-seal
C - Ceramic
S - SSIC
(9) Rotational-seal
C - Carbon
S - SSIC
(10) Bellows Spring
H - Hastelloy - C
S - SUS316
