SuperATV Rear Windshield - Installing Small Brackets and Final Tightening; Product Care and Legal Information; Windshield Cleaning Procedures

IN-RWS-CA-DEF 5

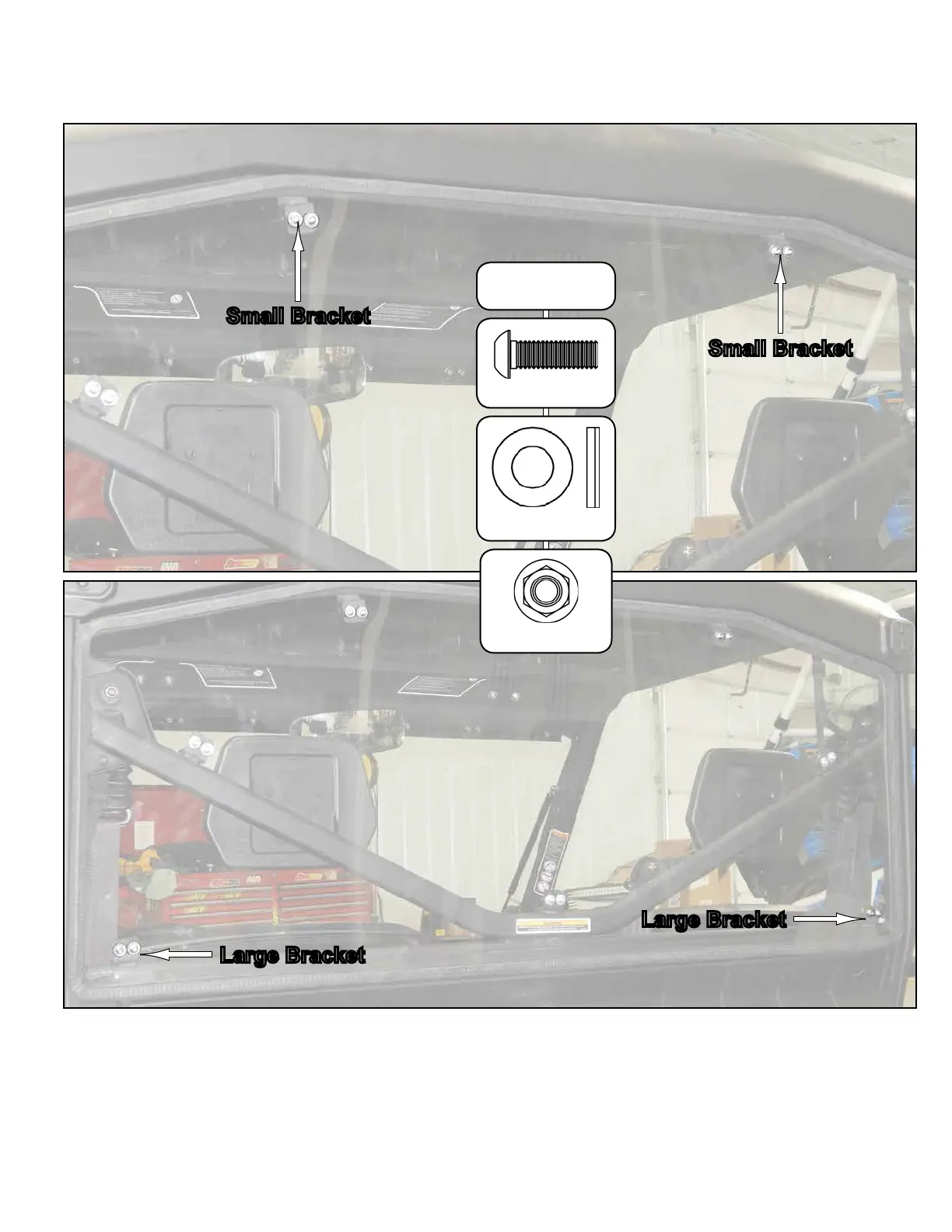

Large Bracket
- Install Small Brackets to top of Windshield with hardware shown.
- Install remaining Large Brackets.
- Tighten all hardware completely.
Sealing Washer
M6 Nylock Nut
M6 x 20mm
qty (2)
each Bracket
Windshield Cleaning:
- Donotusewindowcleaninguids(Windex,409,etc)oranysolvents(gasoline,denaturedalcohol,acetone,etc).
- Neveruseabrasivecleaners,abrasivepads,orgrittycloths.
- Neveruserazorblades,scrapers,sqeegees,brushes,etc.
1.ThouroughlyrinseWindshieldtooato󰀨dirtandmud.
2.Usingasoftcloth,ormicrobercloth,cleanWindshieldwithwarmwaterandagentledetergent.Babyshampoo
or hand washing soap are recommended.
3.Topreventwaterspots,useachamoistoblotWindshielddry.
Small Bracket
Small Bracket
Large Bracket
