Installation & Operation Manual
O-360 and IO-360 Series Engines
© March 2004 Superior Air Parts Inc. Chapter 1 • Engine Description
10

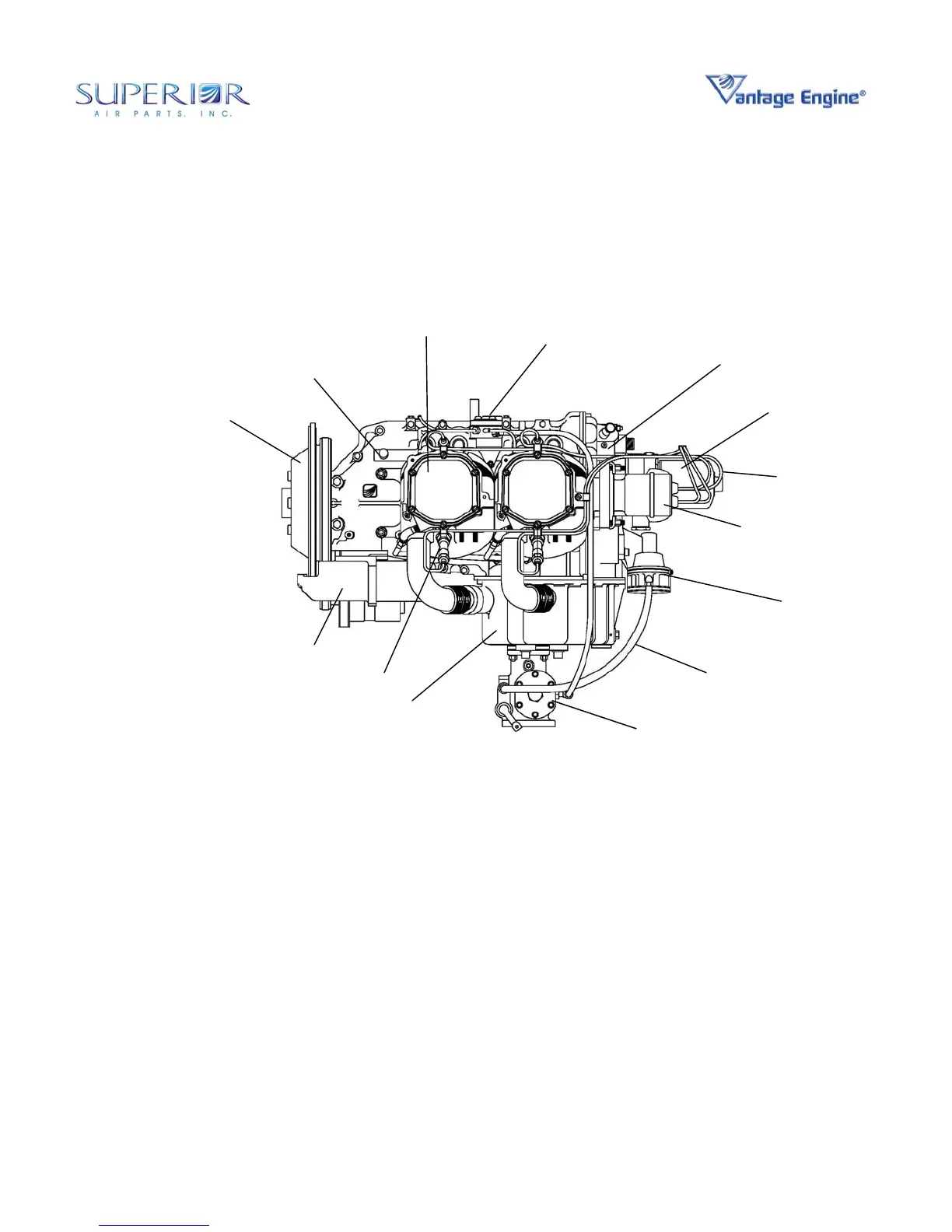

Figure 1- 7 • IO-360 Engine Left Side View
FUEL INJECTION
MANIFOLD
FUEL INJECTION
SERVO
FUEL LINE
FUEL PUMP
MAGNETO
WIRING
HARNESS
OIL FILTER
ACCESSORY
HOUSING
CYLINDER
ASSEMBLY
CRANKCASE
ASSEMBLY
STARTER SUPPORT
ASSEMBLY
STARTER
SPARK PLUG
OIL SUMP
