Installation & Operation Manual
O-360 and IO-360 Series Engines
© March 2004 Superior Air Parts Inc. Chapter 1 • Engine Description
9

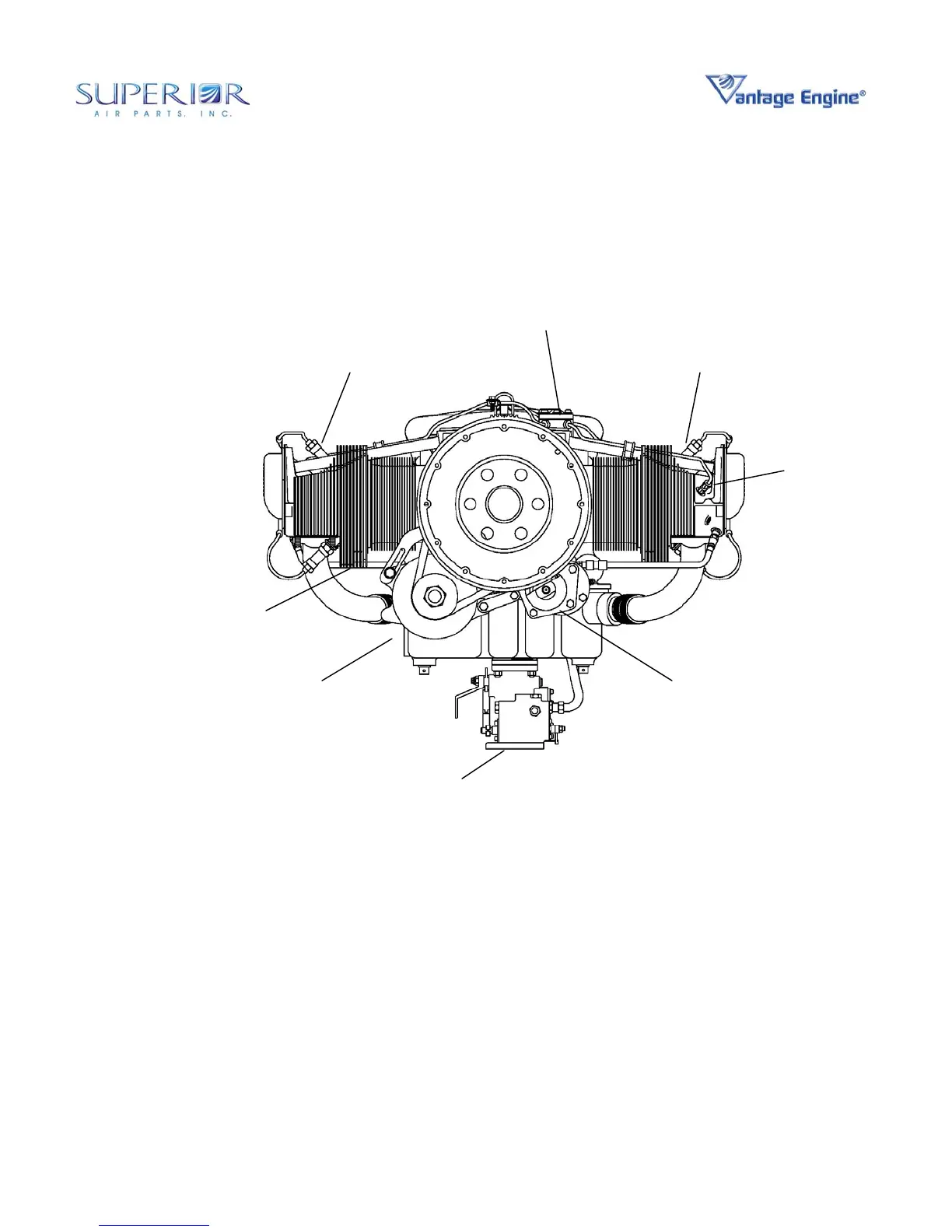

Figure 1-6 • IO-360 Engine Front View
SPARK PLUG
FUEL
INJECTOR
STARTER
FUEL INJECTION
SERVO
SPARK PLUG
FUEL INJECTION
MANIFOLD
ALTERNATOR & BELT
NOT PROVIDED WITH ENGINE
CHT PROBE LOCATION
(TYPICAL EACH HEAD)
