126861-01L
14

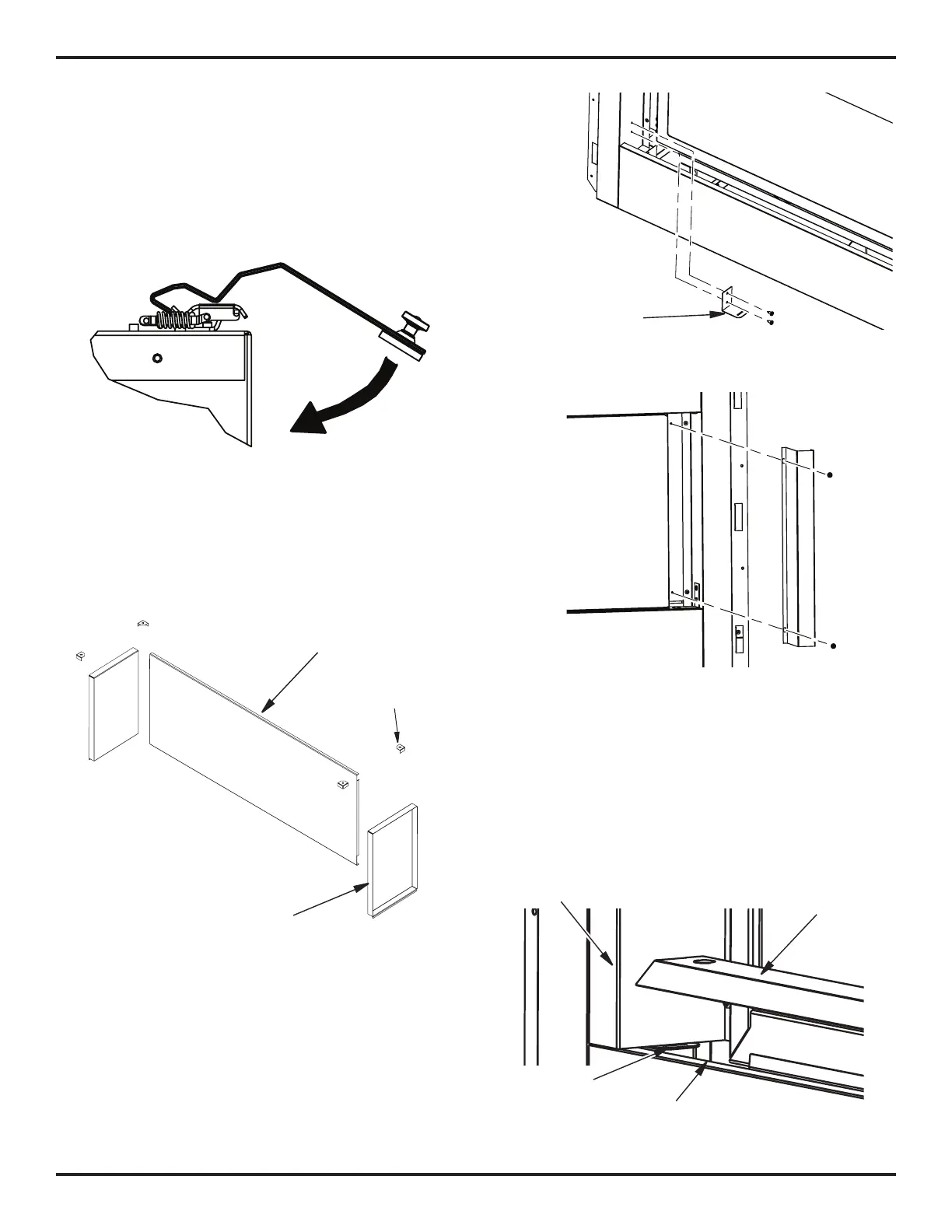

INSTALLATION Continued
Removing False Door
1. In the rear of the fireplace, Unlock 3 door latches on top of
firebox using your fingers or the latch opener provided.
2. Hook opener over latch as shown in Figure 20. Swing the
bottom of the opener down toward the door. You will not need
to pull down.
3. Tilt open false door 45° from the top of firebox and lift up to release
door from retaining channel.
Figure 21 - Removing Rear Interior Wall for See-Thru
Applications
Rear Panel
Side Panel
Bracket
Figure 20 - Latch Opener
Figure 22 - Installing Access Door Retaining Brackets for See-
Thru Applications
Retaining Bracket
Figure 23 - Installing Side Face Filler for See-Thru
Applications
Removing Rear Interior Wall
1. Through firebox opening in the front of the fireplace, unscrew 4
corner brackets from the firebox top (See Figure 21).
2. Remove 2 side walls and then the rear wall. Discard rear wall.
3. Replace 2 side walls and reinstall the corner brackets.
Installing Access Door Retaining Brackets
1. Screw access door retaining brackets into the inner side face using
2 screws on both the left and right side as shown in Figure 22.
Installing Side Face Filler
1. Screw side face filler into firebox side baffle using 2 screws on
both the left and right side as shown in Figure 23.
Installing Access Door
1. Place access door in front of fireplace opening with the slanted
side facing forward. The slanted surface will slide underneath the
flange of the bottom face Insert tabs on side of access door into
slots on retaining brackets (See Figure 24).
Installing Hood
1. If required, install hood as shown on Figure 17, Page 13.
Figure 24 - Access Door for See-Thru Applications
Access Door
Flange on Face
Bottom
Side Filler
Retaining
Bracket
To Next Page
