Chapter 2: Installation
Overview of the Processor Heatsink Module (PHM)

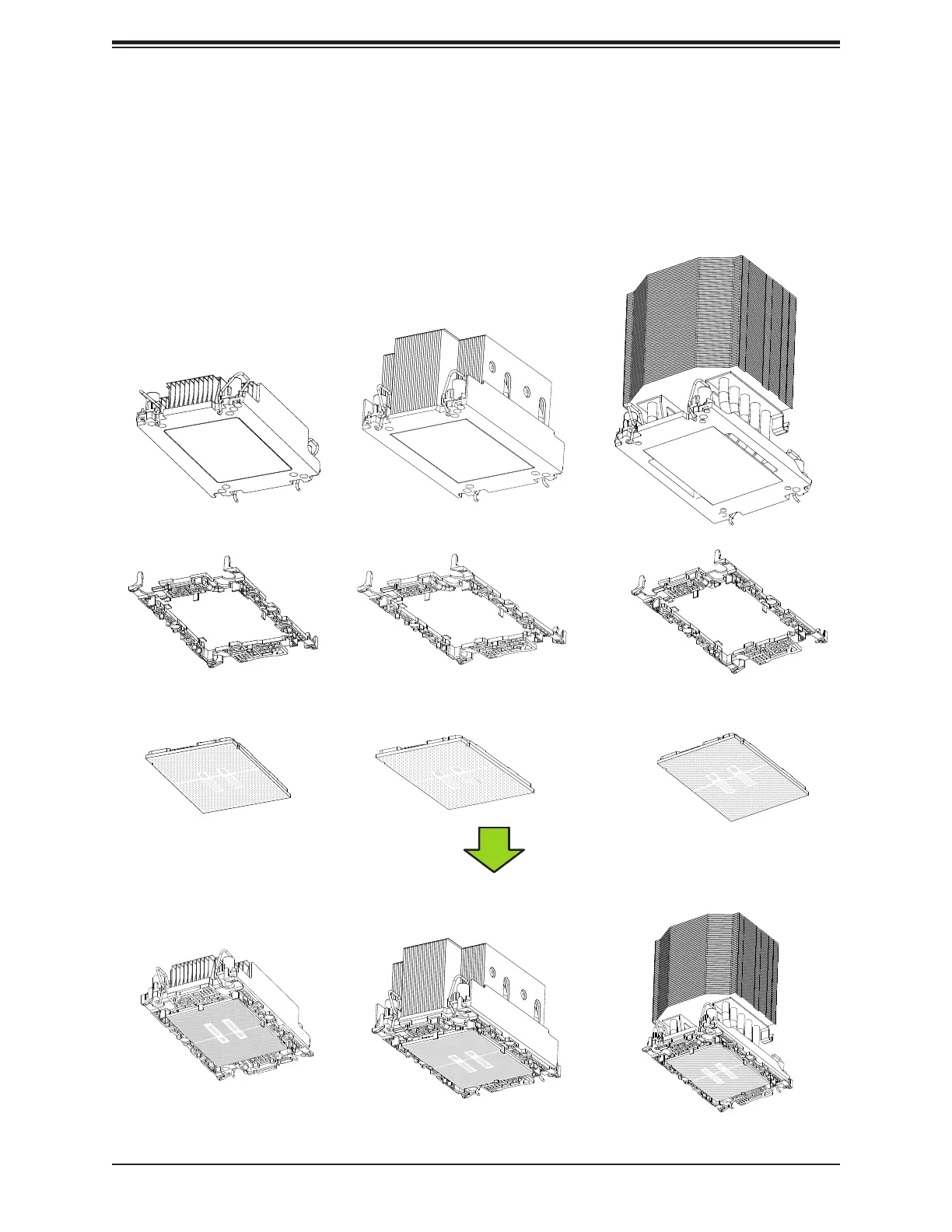

The Processor Heatsink Module (PHM) contains a heatsink, a CPU carrier, and a
4th Gen Intel Xeon Scalable processor.
1U Heatsink
1. Heatsink (Bottom View Shown Below)
2. Processor Carrier E1A
4. Processor Heatsink Module (PHM) (Bottom View Shown Below)
3. The 4th Gen Intel Xeon Scalable Processor (SP XCC) (Component Side Shown Below)
2U Heatsink
4U Heatsink
1U Heatsink
2U Heatsink
4U Heatsink
To Next Page
