Chapter 2: Installation

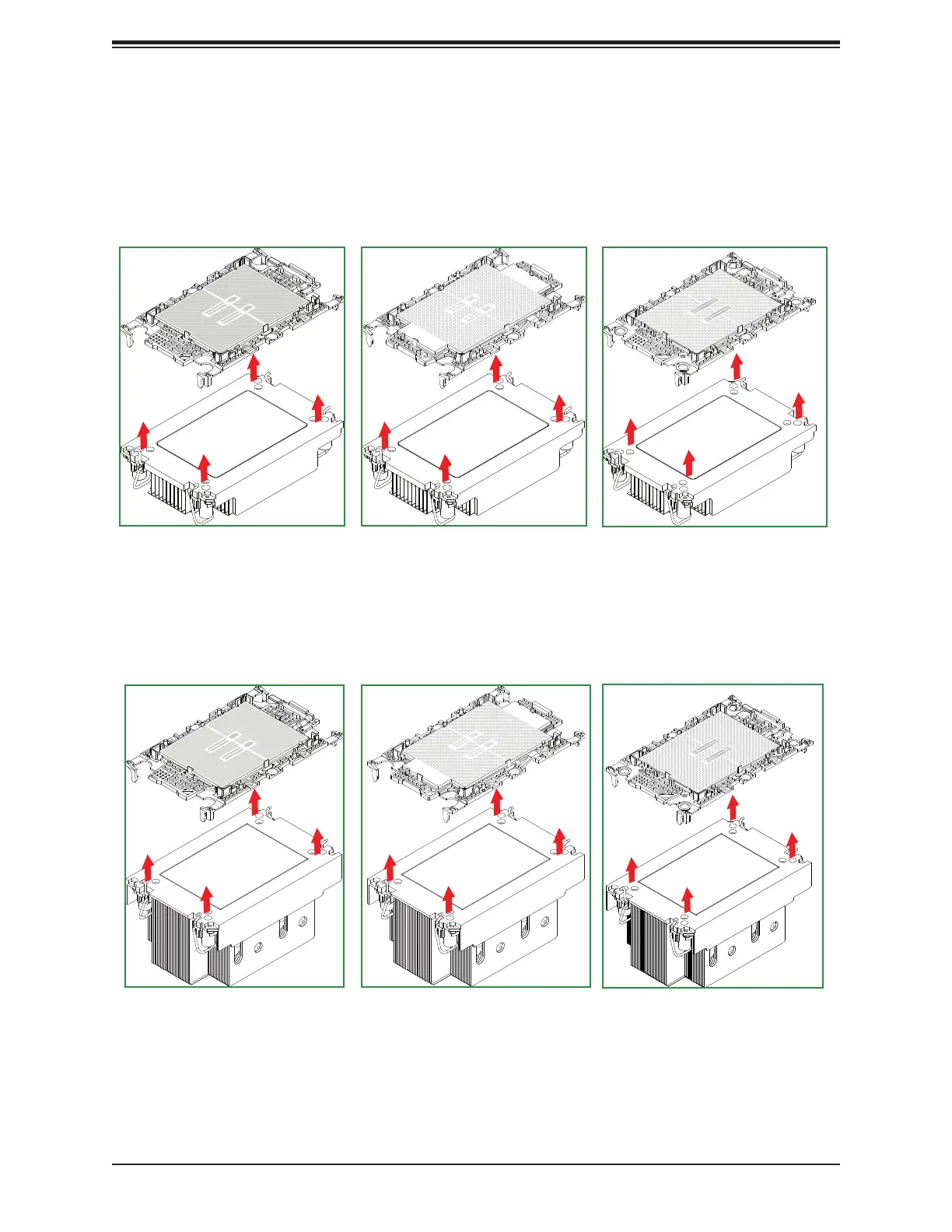

2. When all plastic clips are detached from the heatsink, remove the CPU carrier assembly
from the heatsink.
1U Heatsink (View of Component Side & Heatsink Bottom Side)
2U Heatsink (View of Component Side & Heatsink Bottom Side)
SP XCC SP MCC
Max Series (HBM)
SP XCC SP MCC
Max Series (HBM)
