Model: Supreme Plus Revised, August 2008
6

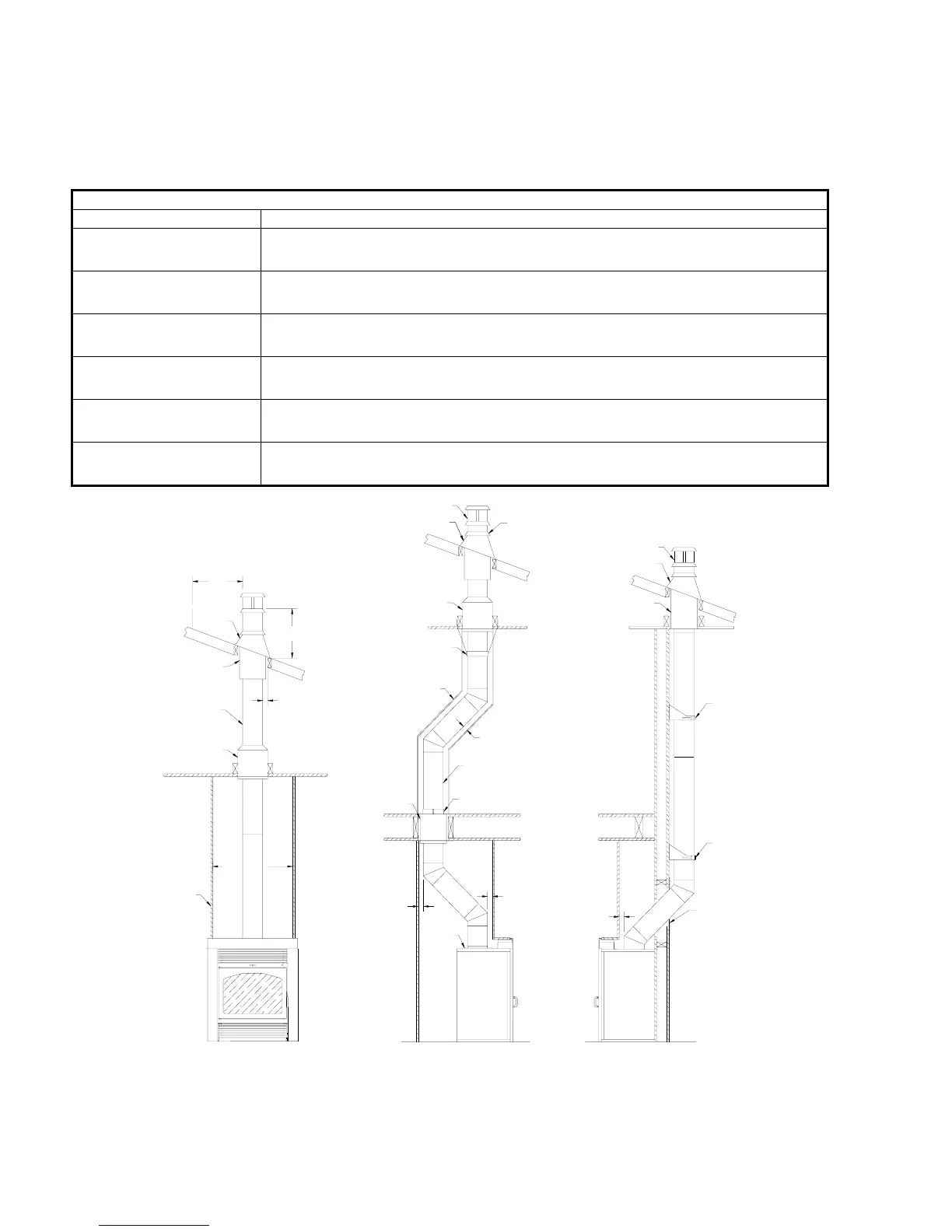

CHIMNEY INSTALLATION
The fireplace has been tested in accordance to ULC S610-M87 R-94 and UL 127-1999 standards for factory-built fireplaces
and can be installed with any of the 6 in. chimneys listed in the below table.
Table 1 – Chimneys
Manufacturer Models
ICC Excel 2100-2
Security Chimneys Intl Secure Temp ASHT, Secure Temp S-2100, Oliver MacLeod HT6000
Selkirk
SuperPro SPR, SuperPro 2100 ALT, SuperVent JSC, SuperVent 2100 JM,
Ultra Temp, CF Sentinel
Simpson Dura-Vent Duratech HT, Duraplus HTC
Metal Fab Temp Gard class A
American Metal Ameritech HS, HSS
Figure 3
Figure 4 Figure 5
STORM
COLLAR
2'' MIN.
WALL SUPPORT
FIRESTOP
WALL SUPPORT
FLASHING
RAIN CAP
ROOF
FIRESTOP
VENTILATED FLASHING
VENTILATED FLASHING
ATTIC RADIATION
SHIELD
RAIN CAP
VENTILATED FLASHING
SUPPORT
STRAP
ROOF
FIRESTOP
10'
3' MIN.
LENGTH
ENCLOSURE
FIRESTOP
ROOF SUPPORT
ANCHOR PLATE
2'' MIN.
LENGTH
ATTIC RADIATION
SHIELD
ENCLOSURE
32'' MIN.
2'' MIN.
2'' MIN.
2'' MIN.
