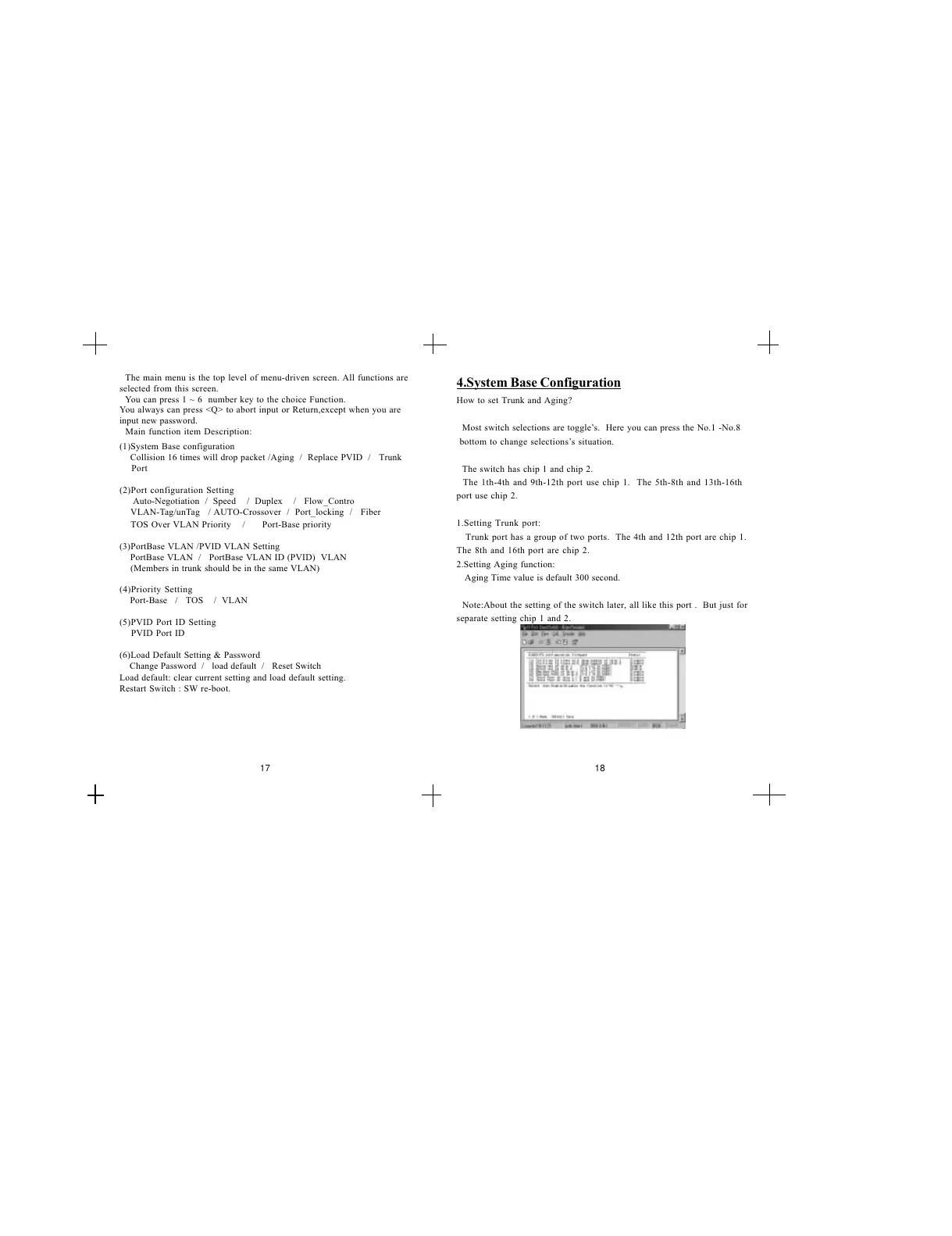

The main menu is the top level of menu-driven screen. All functions are
selected from this screen.
You can press 1 ~ 6 number key to the choice Function.
You always can press <Q> to abort input or Return,except when you are
input new password.
Main function item Description:
(1)System Base configuration
Collision 16 times will drop packet /Aging / Replace PVID / Trunk
Port
(2)Port configuration Setting
Auto-Negotiation / Speed / Duplex / Flow_Contro
VLAN-Tag/unTag / AUTO-Crossover / Port_locking / Fiber
TOS Over VLAN Priority / Port-Base priority
(3)PortBase VLAN /PVID VLAN Setting
PortBase VLAN / PortBase VLAN ID (PVID) VLAN
(Members in trunk should be in the same VLAN)
(4)Priority Setting
Port-Base / TOS / VLAN
(5)PVID Port ID Setting
PVID Port ID
(6)Load Default Setting & Password
Change Password / load default / Reset Switch
Load default: clear current setting and load default setting.
Restart Switch : SW re-boot.
4.System Base Configuration
How to set Trunk and Aging?
Most switch selections are toggles. Here you can press the No.1 -No.8
bottom to change selectionss situation.
The switch has chip 1 and chip 2.
The 1th-4th and 9th-12th port use chip 1. The 5th-8th and 13th-16th
port use chip 2.
1.Setting Trunk port:
Trunk port has a group of two ports. The 4th and 12th port are chip 1.
The 8th and 16th port are chip 2.
2.Setting Aging function:
Aging Time value is default 300 second.
Note:About the setting of the switch later, all like this port . But just for
separate setting chip 1 and 2.
