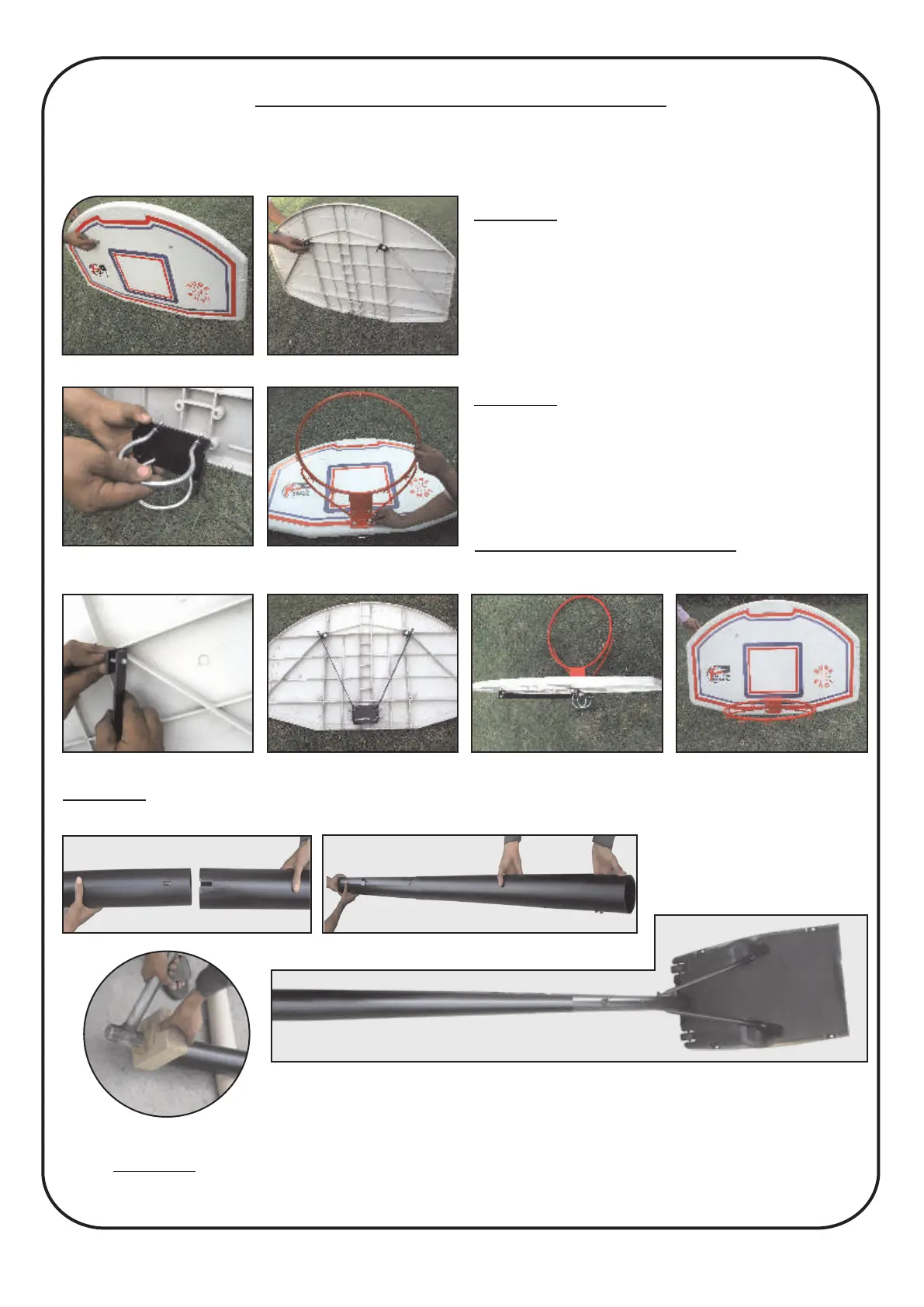

STEP-8
Attach top pole with middle pole to attach with lower pole
which is attach to base (P1) using block wood & hammer
Attach long steel strip (P4) with (P8) & (P9) using nut & bolt (B).
STEP-7
Page-5
Backboard and goal should be assembled at ground level.
Assembly at top of pole could result in injury.
Insert bolt (C) through top holes of
back board to attach angle bracket
(P9) at the back side of the back board.
STEP-5
Insert 8mm U-bolt (E) through (P8)
and back board. Attach ring (P2)
from front side of back board with
U-bolt (E).
STEP-6
Note: Do not tight the nut.
