A-ON C B A 1 2 3 4 5 6 7
SX2120-SEQ

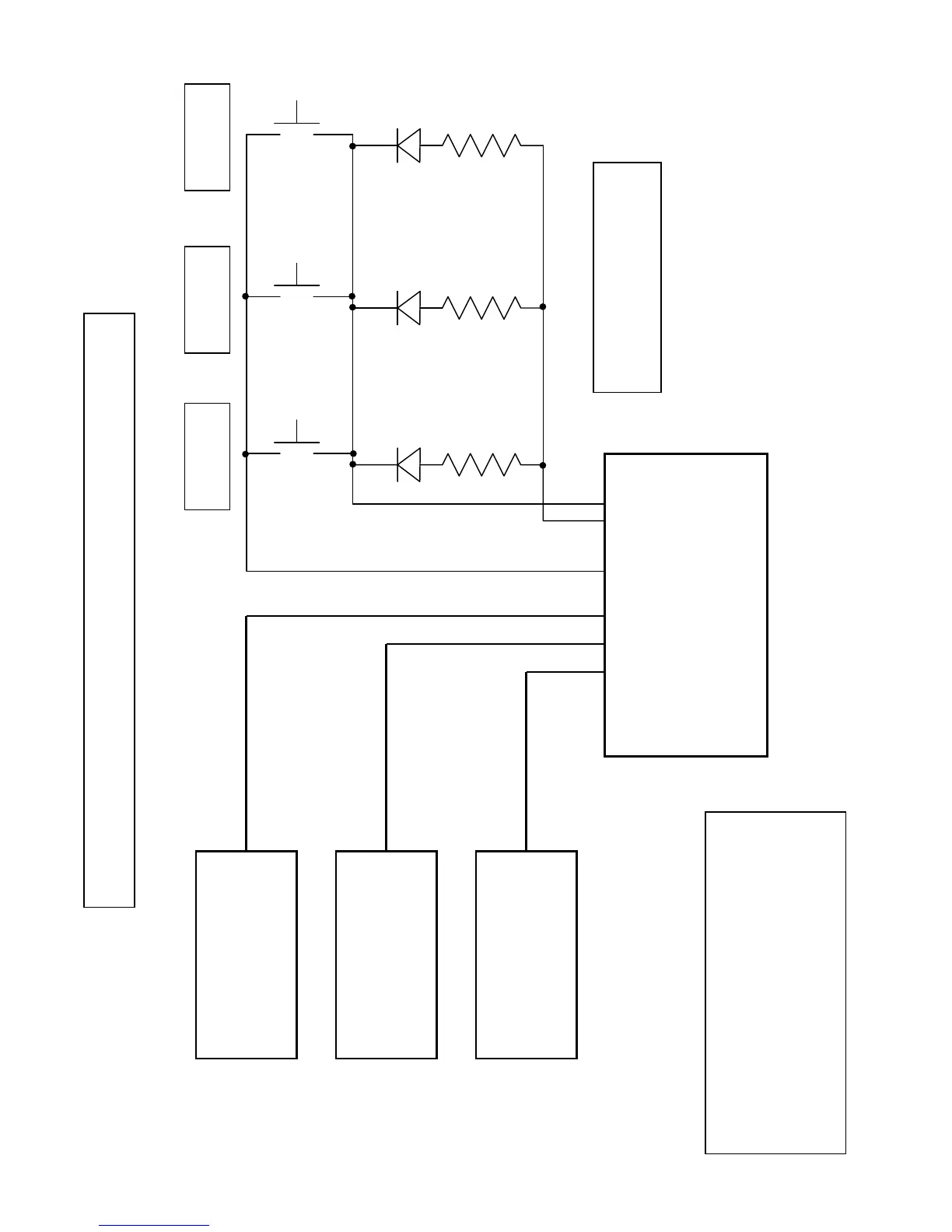

Single-Unit System Controlled by Momentary Switches
Location 3Location 2Location 1
Mixer
Signal Processing
Amplifier
Use an LED and 1K, ¼W resistor at each location
Program: Up & Down Inputs = One Momentary 12V dc Output = LED
Figure 1
