Surna 250 PPD - Page 16

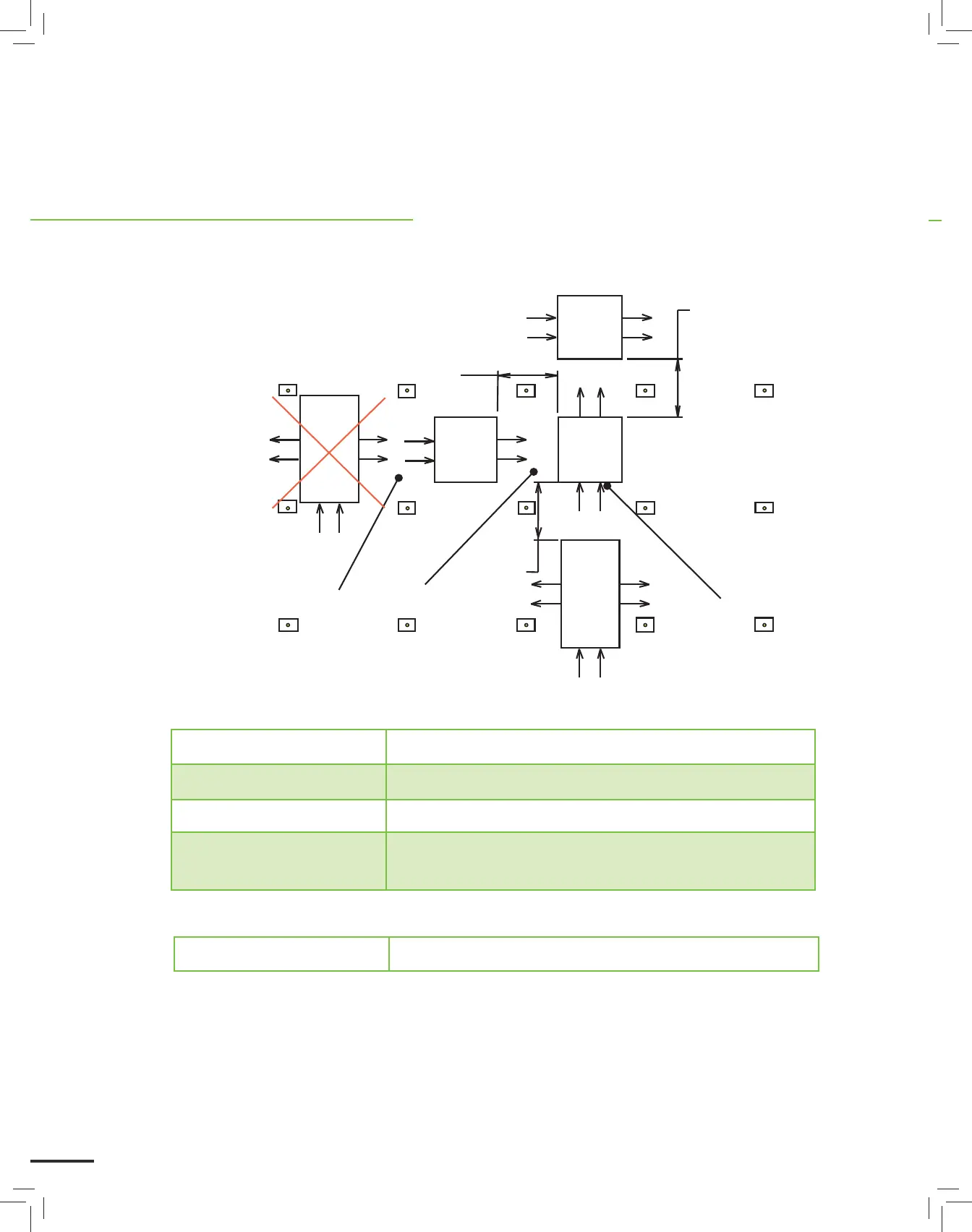

Figure 6 - Bird’s eye view of proper installation of Surna dehumidifier with recommended clearances
BIRD’S EYE UNIT CLEARANCES
FLOW FLOW FLOW
FLOW
FLOW FLOW
FLOW
FLOW FLOW
FLOW
FLOW FLOW
A
1
1
1
A
2
4
A
3
4
2
3
4
A
Minimum 24 inches (recommended 72 inches)
1
2
Surna Fan Coil
Surna Dehumidifier
Oppose flow by 90 degrees for neighboring units
No conditioned air discharge or circulating fans within 3
feet minimum (recommended 72 inches) from intake or
discharge of unit
A
Minimum 24 inches (61 cm) (recommended 72 inches (91.5 cm))
1
Surna dehumidifier
2
Surna fan coil
3
Oppose flow by 90 degrees for neighboring units
4
No conditioned air discharge or circulating fans within
minimum 36 inches (91.5 cm) (recommended 72 inches (182.8
cm)) from intake or discharge of unit.
16
