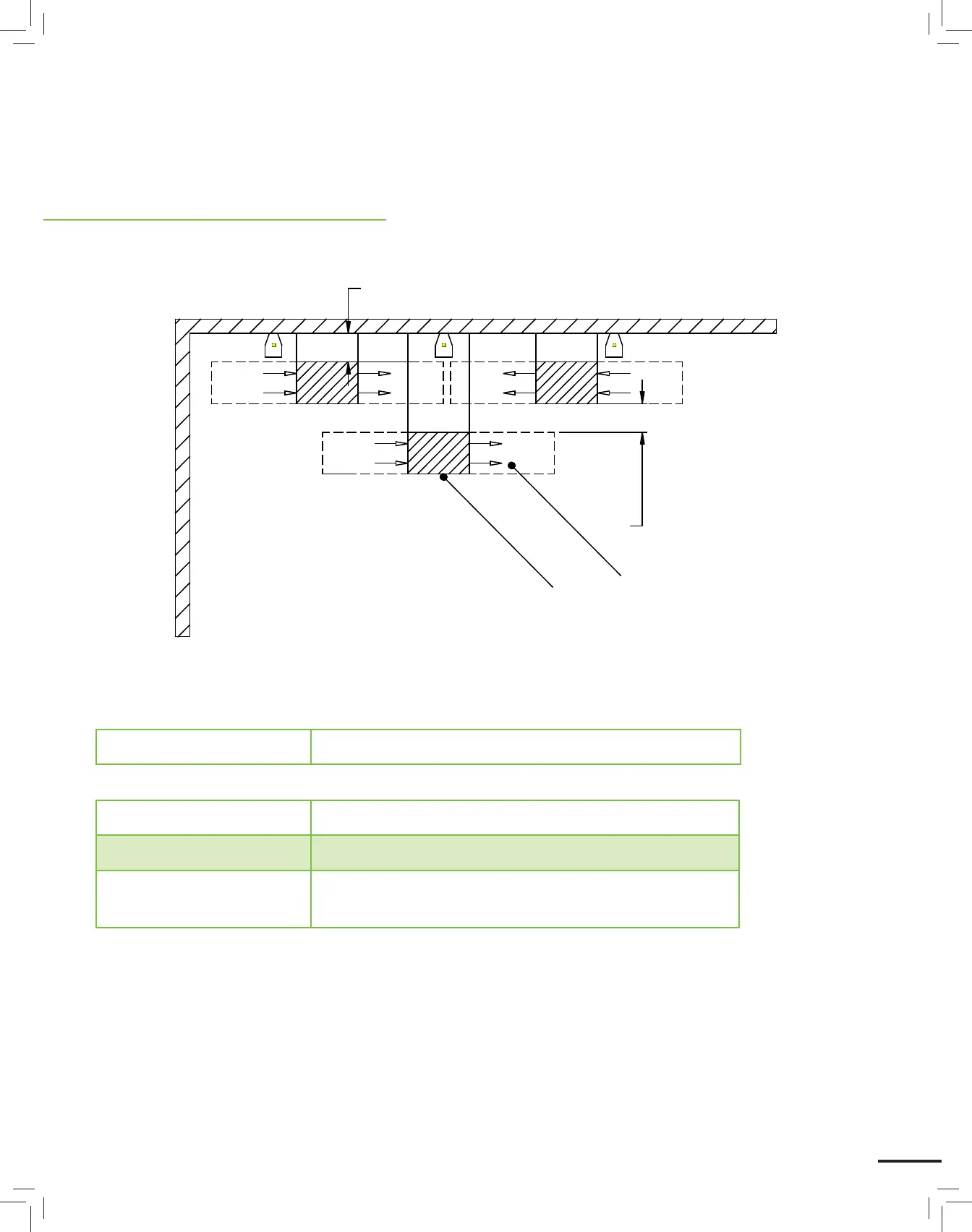

Figure 5 - Limited clearance osets for Surna dehumidifier
PROPER VERTICAL OFFSET
1 or 2
reifidimuheD anruS1
reldnaH riA anruS2
3
No conditioned air discharge or circulating fans within 3 feet
(recommended 72 inches) from intake or discharge of unit
A
Min 12 inches of clearance above and below
FLOW
FLOW
FLOW
FLOW
FLOW FLOW
A
A
3
A
Minimum 12 inches of clearance above and below
1
Surna dehumidifier
2
Surna fan coil
3
No conditioned air discharge or circulating fans within
minimum 36 inches (91.5 cm) (recommended 72 inches (182.8
cm)) from intake or discharge of unit
