Surna 250 PPD - Wiring Diagram

WIRING DIAGRAM
TOGGLE
SWITCH
Supplied 230 VA
C
Plug/Power Cord
CONTACTOR
TRANSFORMER
208 / 230 VAC
24 VAC
DELAY RELAY
HUMIDITY
CONTROL
FAN MOTOR
COMPRESSOR CAP
FAN RELAY
COMPRESSOR
RANCO
TEMP
CONTROL
RED
YELLOW
BLUE
BLK
WHITE
RED
BLUE
BLK
RED
BLUE
LINE
NEUTRAL
WHITE (COM)
ORANGE (240 VAC)
RED (24 VAC)
BLUEBLUE
BLUE
BLK
GREEN
SCHEMATIC DIAGRAM: 3-250
RED
+
_
BLK
WHITE

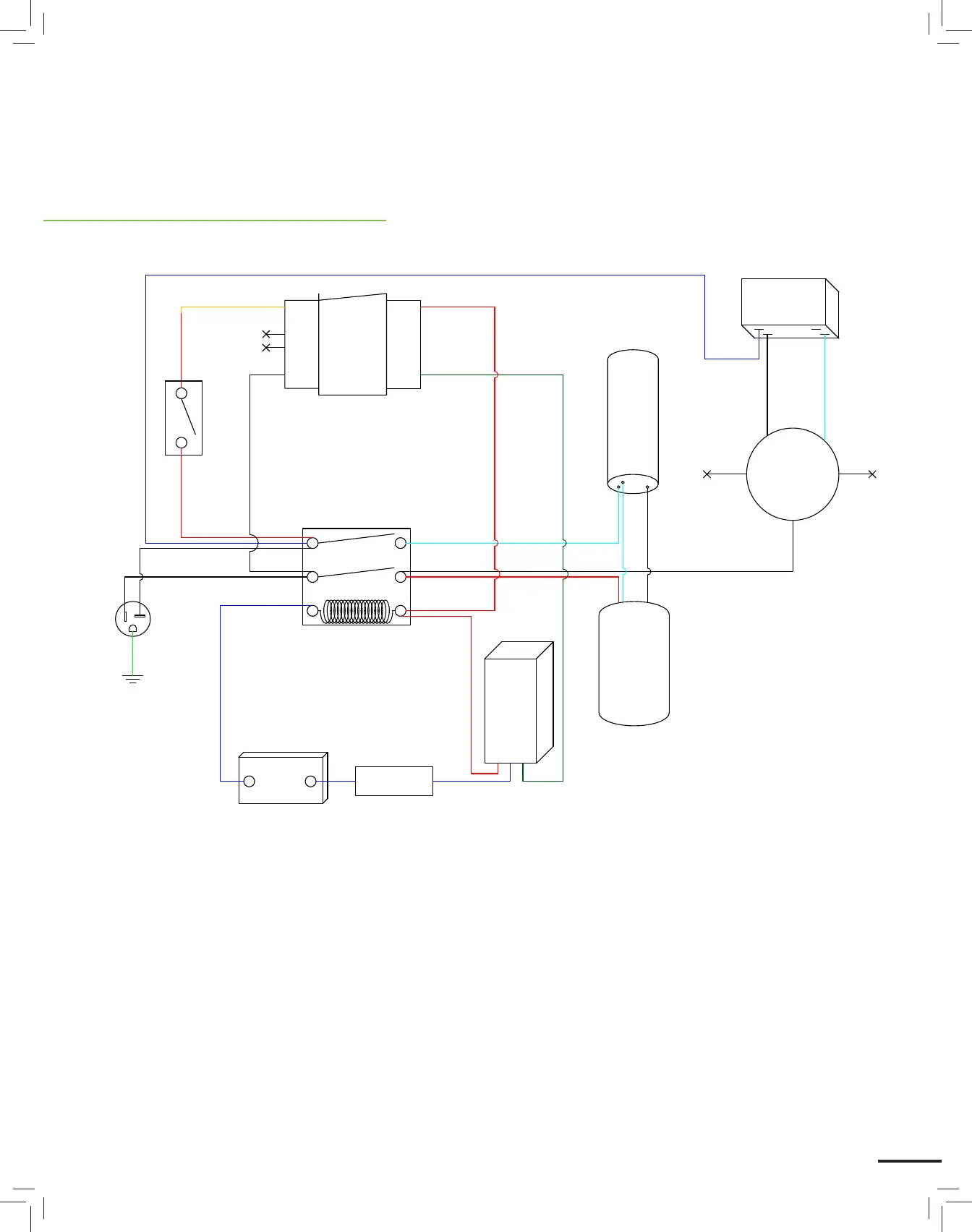

Figure 7 - Surna dehumidifier wiring diagram
