Surna 250 PPD - Page 14

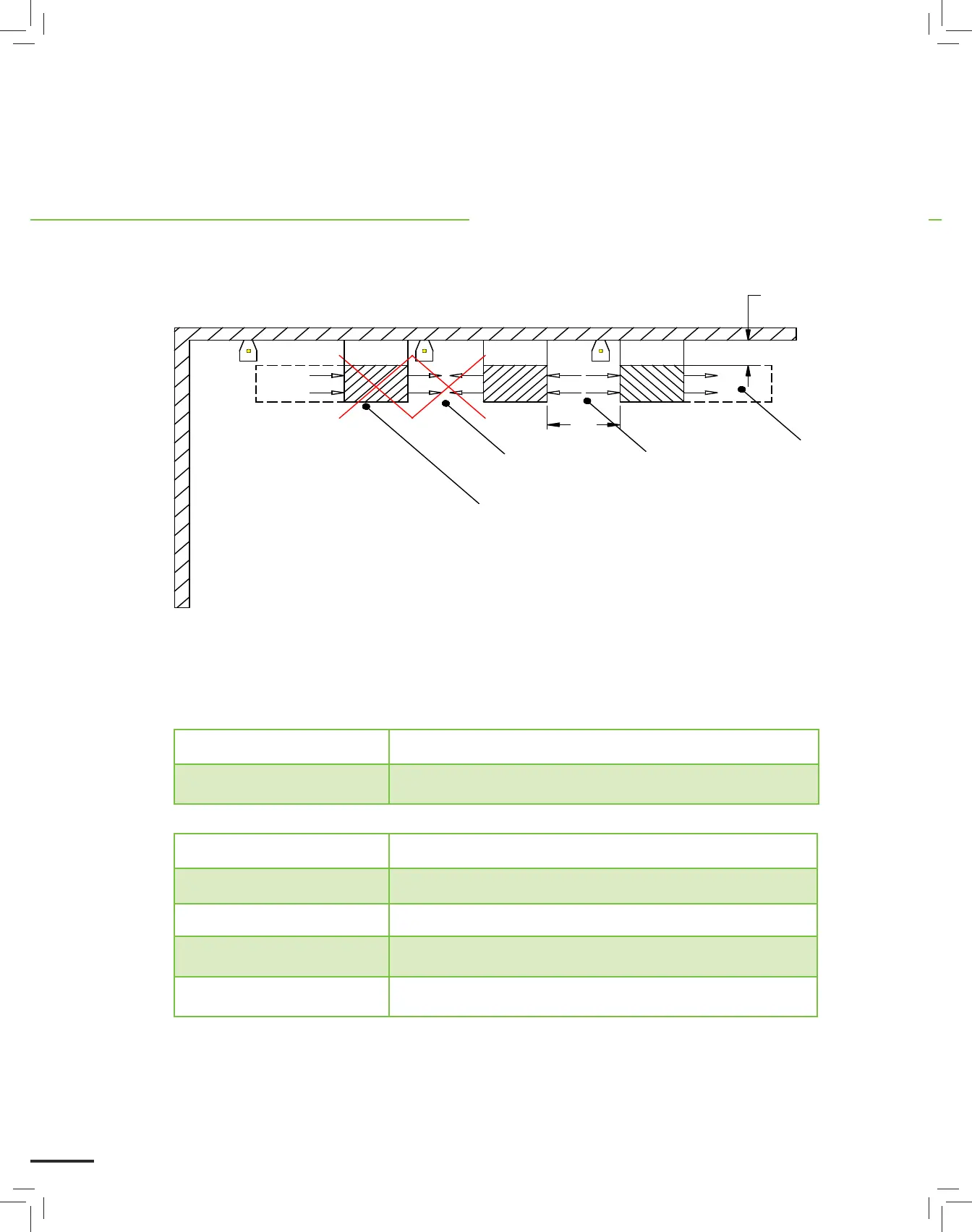

Figure 4 - Proper unit positioning with regard to airflow for Surna dehumidifier
PROPER UNIT AIRFLOW
reifidimuheD anruS1
reldnaH riA anruS2
3
No conditioned air discharge or circulating fans within 3
feet from intake or discharge of unit
4
Units may disregard "3" if intakes are opposing and a
minimum 24 inches (recommended 72 inches)
5
DO NOT exhaust into units intake or exhaust
woleb dna evoba ecnaraelc fo sehcni 21 niMA
B
Min 24 inches (recommended 72 inches) between 2
units with adjacent intakes
FLOW FLOWFLOW FLOW
B
4
FLOW FLOW
3
1 or 2
5
A
A
Minimum 12 inches (30.5 cm) of clearance above and below
B
Minimum clearance of 24 inches (61 cm) (recommended 72
inches (182.8 cm)) between 2 units with adjacent intakes
1
Surna dehumidifier
2
Surna fan coil
3
DO NOT exhaust into units intake or exhaust
4
Units may disregard “3” if intakes are opposing and a minimum
of 24 inches (61 cm) (recommended 72 inches (182.8 cm)).
5
No conditioned air discharge or circulating fans within
minimum 36 inches (91.5 cm) from intake or discharge of unit
14
