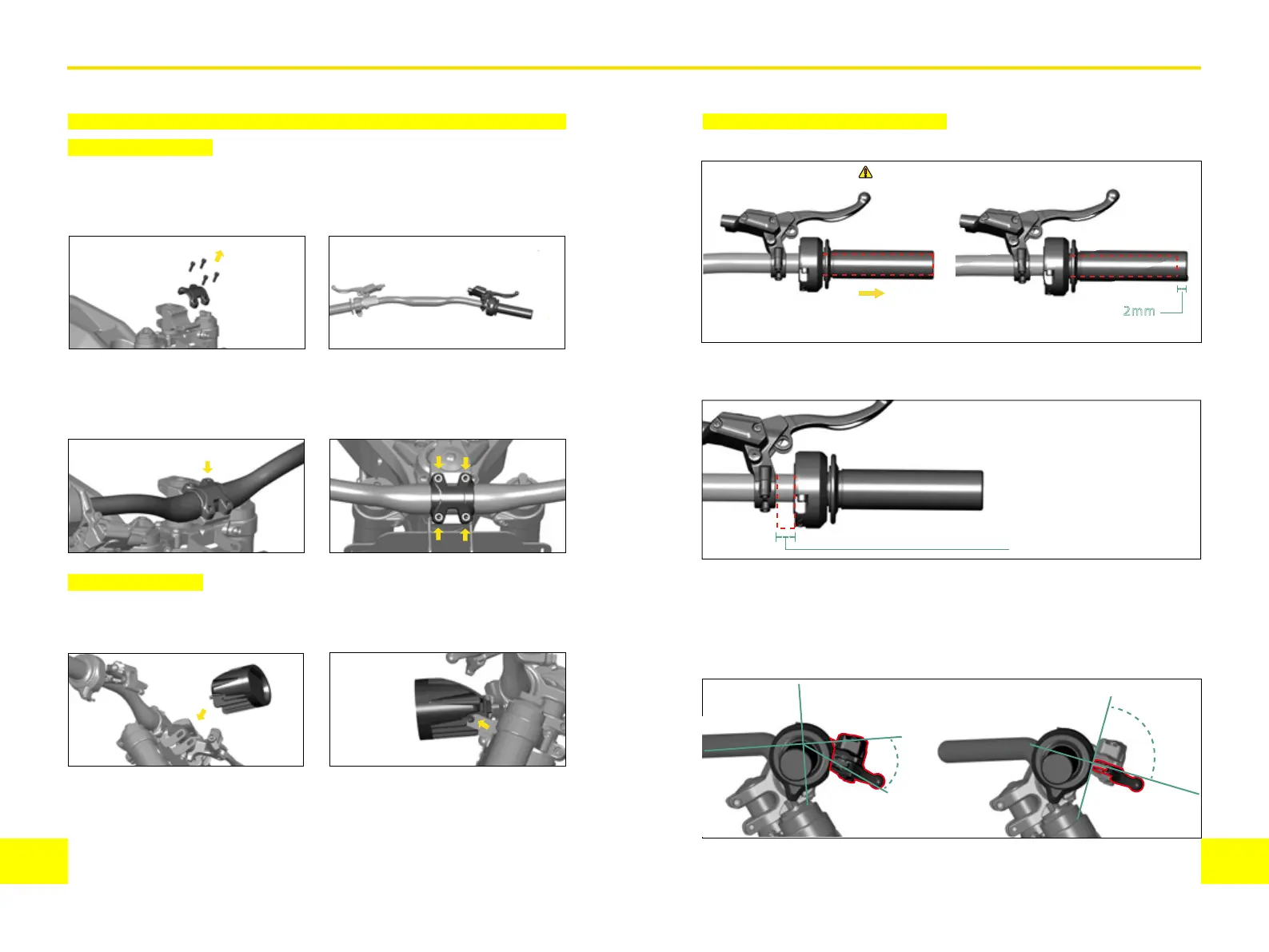

Install Handlebars
3.Install handlebars, fix the stem cap,
adjust the angle and position of handle-
bars according to personal riding habits.
1.Use a 4# inner hexagon wrench, loose
and remove the four screws and then take
off the stem cover.
2.Fix the front brake and throttle on the
handlebar.
4.Tighten the four screws with a torque of 6
to 8 Nm.
Installation Instructions
Install Headlight
1.As shown in the picture, after installing the throttle, roll it back 2mm.
09 10
2.Adjust the position and tighten the
screws on both sides.
1.Fix the headlight to the mounting bracket
of the connecting plate on the front fork.
Install Front Brake and Throttle
2.As shown in the figure above, the gap between the front brake cylinder and the throttle
grip is no less than 12mm. (It can be adjusted according to personal riding habits).
Not less than 12mm
3.When installing front brake, the distance between brake and throttle should not closer
than 12mm. (It can be adjusted according to personal riding habits.)
And to avoid interference between the front brake lever and the throttle case, the front
brake lever should be perpendicular to the flat side of the throttle case.(It can be adjust-
ed according to personal riding habits.)
90°
35°
2mm
②①
Turn Back
If do not turn back 2mm, it will probably
cause sluggish when rotating the throttle
control
