• LIQUID LEVEL / LWCO CONTROLLER
The electronic controller automatically maintains proper
water level, and shuts off the generator when water
supply in the boiler drops below a safe operating level.
• WATER LEVEL SIGHT GLASS
Allows constant observation of water level while
boiler is in operation.
• ON-OFF SWITCH
Complete with pilot light, for switching on the
generator.
• INTEGRAL ELECTRICAL CONTROL
Magnetic contactor energizes the element and is
integrally mounted in the control unit.
• BLOWDOWN/DRAIN VALVE
Facilitates emptying the pressure vessel during blowdown/drain sequence.
• J-BOX
for motor/pump connection.
• LONG LIFE HEATING ELEMENTS
Industrial grade, heavy duty stainless steel heating elements equipped with one
piece resistance welded terminations for added strength and safety.
• OPERATING PRESSURE CONTROL
Operates automatically to maintain steam pressure within generator.
• MANUAL RESET PRESSURE CONTROL
Provides high limit pressure cut-out with manual reset.
• STEAM SAFETY VALVE
ASME Code valve, automatically opens to reduce pressure should excessive
steam cause pressure build-up.
• STEAM PRESSURE GAUGE
Allows visual observation of steam pressure over full range.
• ENERGY SAVING AND MINIMUM MAINTENANCE
Fully insulated pressure vessel minimizes heat loss and maximizes energy savings.
• EASY CONTROL MAINTENANCE
All controls and components are easily accessible. Fully-louvered openings avoid
component heat build-up.
• RUGGED CONSTRUCTION
Performance is insured for all typical industrial applications.
•
Pressure vessel rated at 100PSIG to ASME Section I, Code M and
National Board registered.
•
UL listed, CSA certified, built to NEC.
•
All units are physically identical and have a packed shipping weight of 125 lbs.
•
Units are trimmed at 100PSIG as standard. 15PSIG trim also available.
•
Incoming water line pressure must be 10 PSIG greater than generator
operating pressure. If not, a motor/pump must be used. Specify Sussman
MBA38002A high pressure water feed motor/pump system.
•
When ordering specify Model No., KW, Volts/PH and motor/pump if required.
•
Water Connection is 1/4 NPT. Steam outlet is 1/2 NPT.
MBA Electric Steam Generator Installation, Operation and Maintenance Manual
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
2

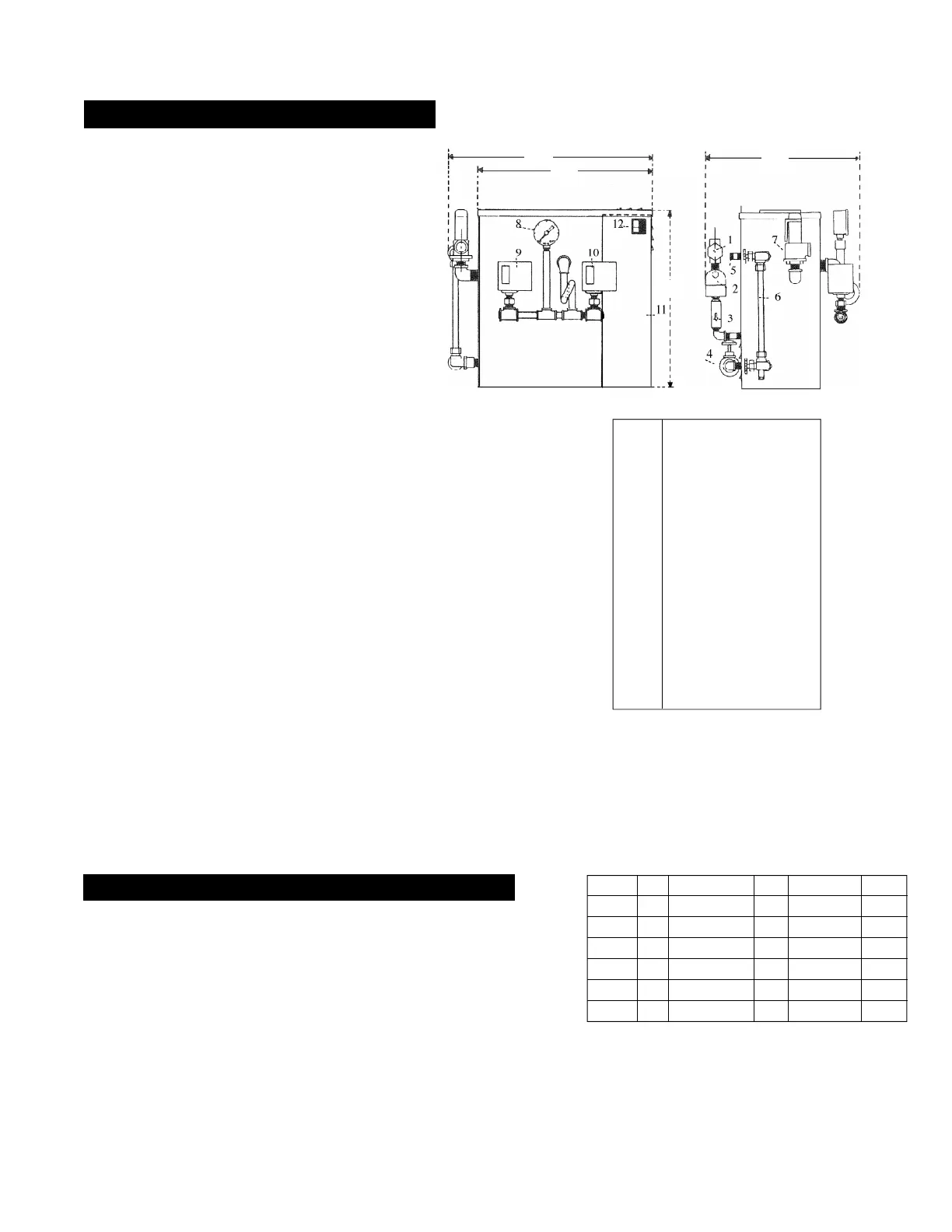

Standard Features
Meeting Code Requirements
Component Identification Dimensional Information
20
1
⁄
2
”
17
1
⁄
2
”
17
7
⁄
8
”
15
3
⁄
4
”
Symbol Description
_____________________________
1 Strainer
_____________________________
2 Water Solenoid
_____________________________
3 Check Valve
_____________________________
4 Drain Valve
_____________________________
5 Steam Outlet
_____________________________
6 Gauge Glass Assembly
_____________________________
7 Safety Valve
_____________________________
8 Pressure Gauge
_____________________________
9 Hi-Limit Pressure Control
_____________________________
10 Operating Pressure Control
_____________________________
11 Access Panel
_____________________________
12 On/Off Switch
Model KW Volts PH Amps PPH
MBA3 3 120,208,240 1 25, 15, 13 9
MBA6 6 208,240,480 3 17, 15, 8 18
MBA9 9 208,240,480 3 25, 22, 11 27
MBA12 12 208,240,480 3 34, 29, 15 36
MBA18 18 208,240,480 3 50, 44, 22 54
MBA20 20 208,240,480 3 56, 49, 25 60
