Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 pg. 81

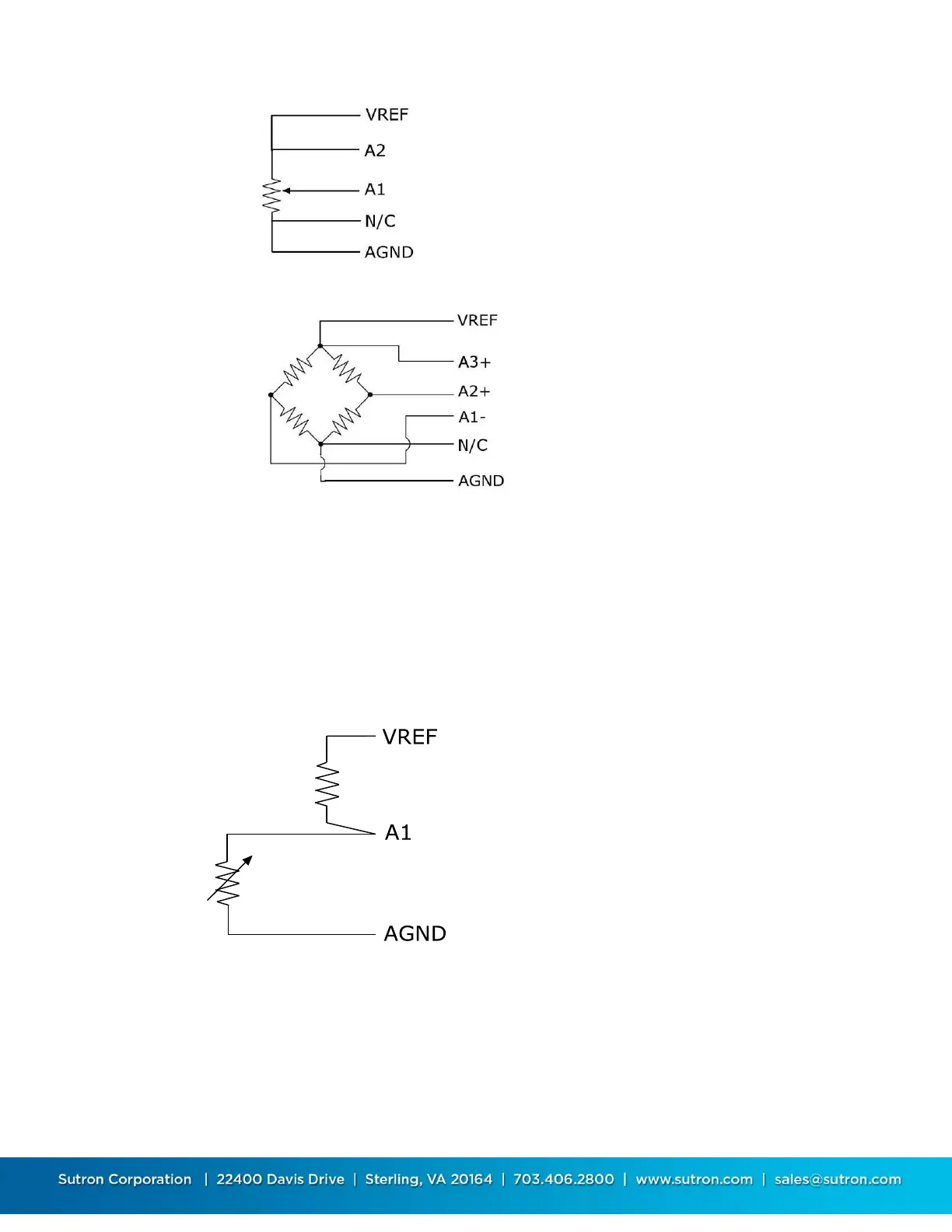

Figure 6 Single ended 4/5 wire potentiometer
Figure 7 Differential 5/6 wire bridge
Resistance
The Resistance input type is used for thermistors and other resistance devices where you want
to know the actual resistance of the device (rather than a voltage derived from the excitation
voltage). This resistance can then be converted into engineering units using one of the
processing types provided.
Figure 8 Resistance, single ended
