FI SYSTEM DIAGNOSIS 4-31
5) If OK, then check the continuity between each terminal and
ground.
$ CKP sensor continuity: ∞ Ω (Infinity)
(W – Ground)
(G – Ground)
! 09900-25008: Multi-circuit tester set
% Tester knob indication: Resistance (Ω)
Are the resistance and continuity OK?
6) After repairing the trouble, clear the DTC using SDS tool.
(#4-26)
Step 2

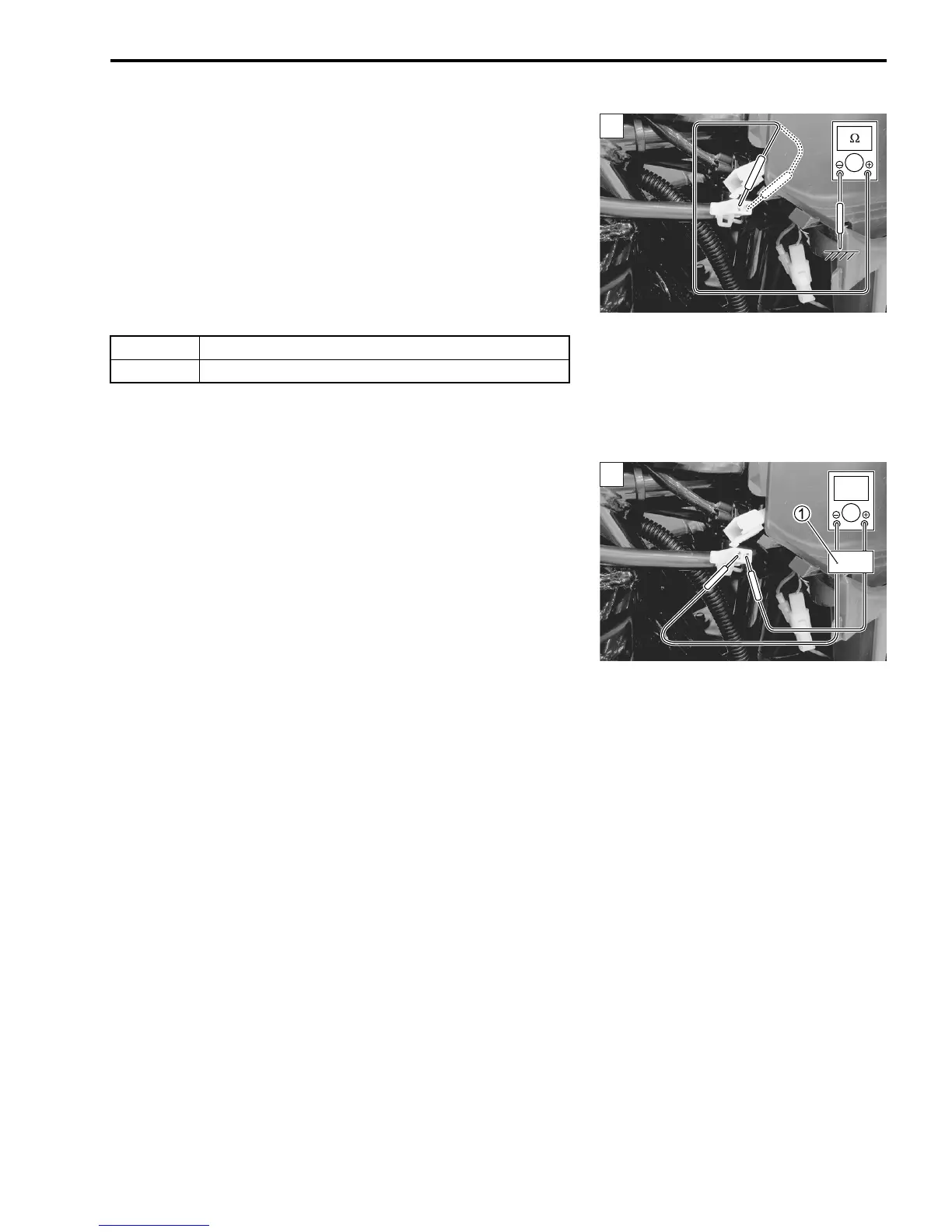

1) Crank the engine a few seconds with the starter motor, and
measure the CKP sensor peak voltage at the coupler.
2) Repeat the above test procedure a few times and measure
the highest peak voltage.
$ CKP sensor peak voltage: 2.0 V and more
(

+ W –

- G)

1 Peak volt adaptor
! 09900-25008: Multi-circuit tester set
& Tester knob indication: Voltage (')
YES Go to step 2.
NO Replace the CKP sensor with a new one.
1
2
V
