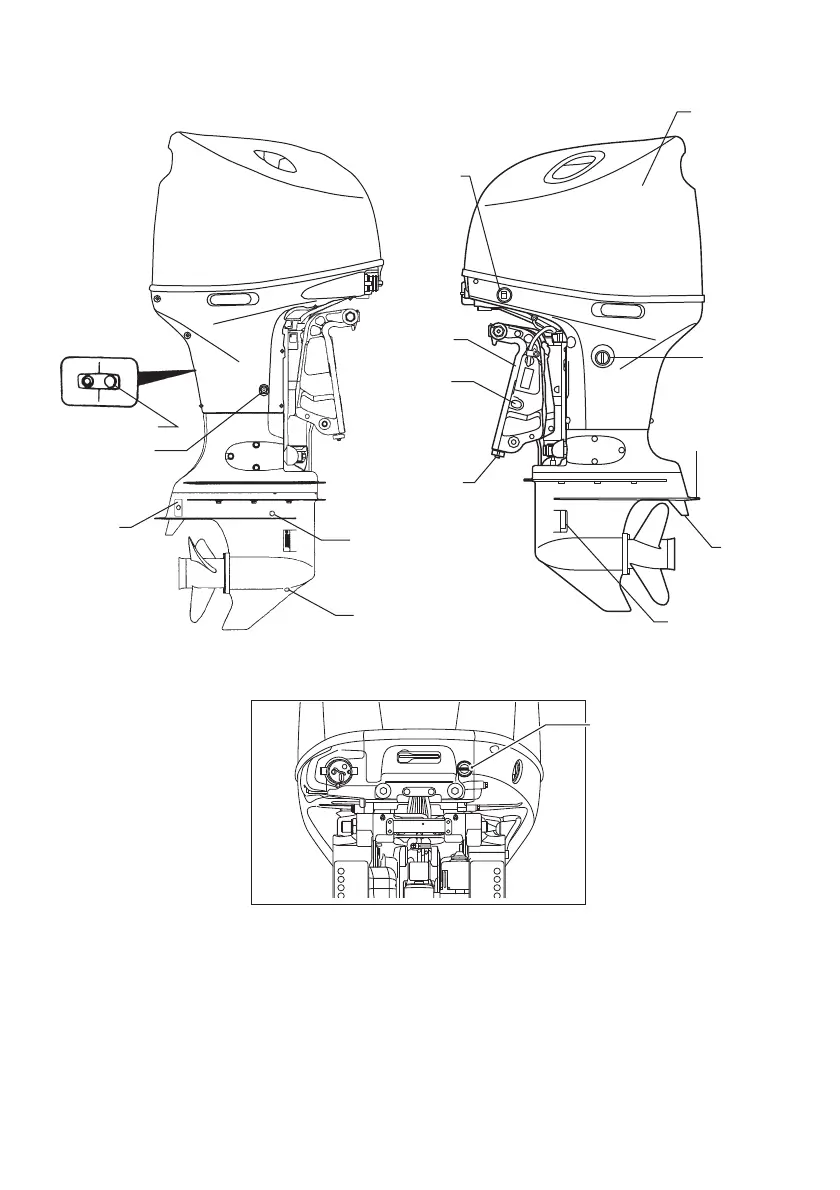

LOCATION OF PARTS
Pilot water hole
Gear oil level plug
Engine oil
drain plug
Gear oil drain plug
Anode
Anode
Power trim and tilt
(PTT) switch
Clamp bracket
Manual
release screw
Motor cover
Water intake hole
Trim tab
Anti-cavitation
plate
Flush plug
Flush plug (No.2)
