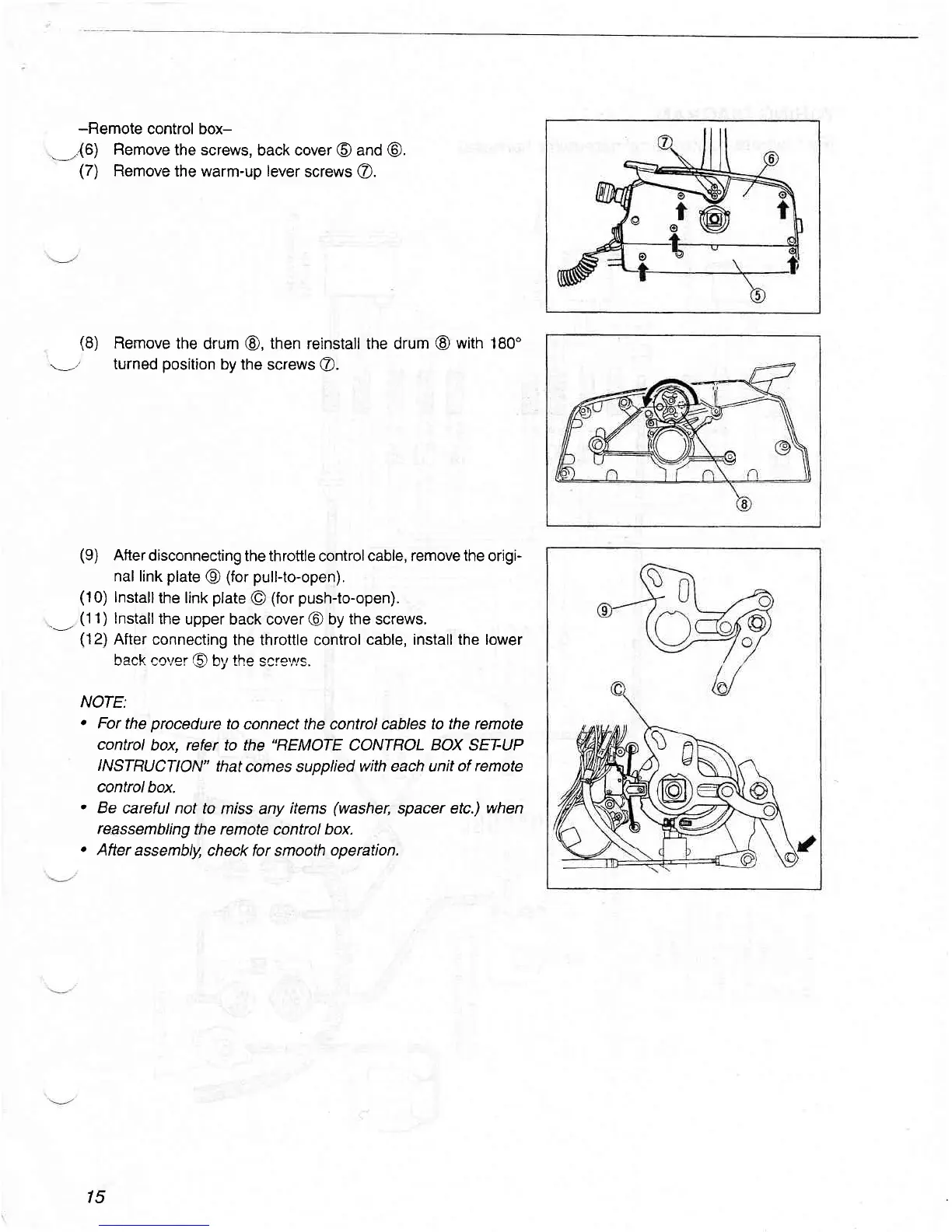

-Remote
control box-
_..(6)
Remove
the screws,
back cover
@
and
@.
(7)
Remove
the warm-up lever
screws
@.
(B)
Remove
the
drum
@,
then
reinstall
\-,' turned
position
by
the screws
@.
the drum
@
with
180'
(e)
(10)
..-
('t1)
(12)
After
disconnecting
the throttle
control
cable, remove the origi-
nal link
plate
@
(for pull-to-open).
Installthe
link
plate
@
(for
push{o-open).
lnstall
the
upper back
cover
@
by
the
screws.
After
connecting
the throttle control
cable, install the lower
|,l2p14
6rlryor
6
hrr fhe
e^rori/q
NOTE:
.
For
the
procedure
to
connect the control
cables
to the remote
control
box, refer to the "REMOTE CONTROL BOX SETUP
INSTRUCTION"
that
comes supplied
with each unit
of remote
controlbox.
.
Be
careful not
to
miss any
items
(washer,
spacer
etc.)
when
reassembling
the remote
control
box.
.
After assembly,
check for smooth
operation.
15
