Suzuki DF50A - Flowchart of Oil Change Reminder System

64
NOTE:
“0” of the first step indication signifies 0 time, “100” means 1 time (500 hours), “200” means 2 times
(1000 hours = 500 × 2), and “300” means 3 times (1500 hours = 500 × 3).
The total operating hours are the sum of hours indicated in the first step indication, and the indi-
cated hours of second step indication (indicated in units of 10 hours).

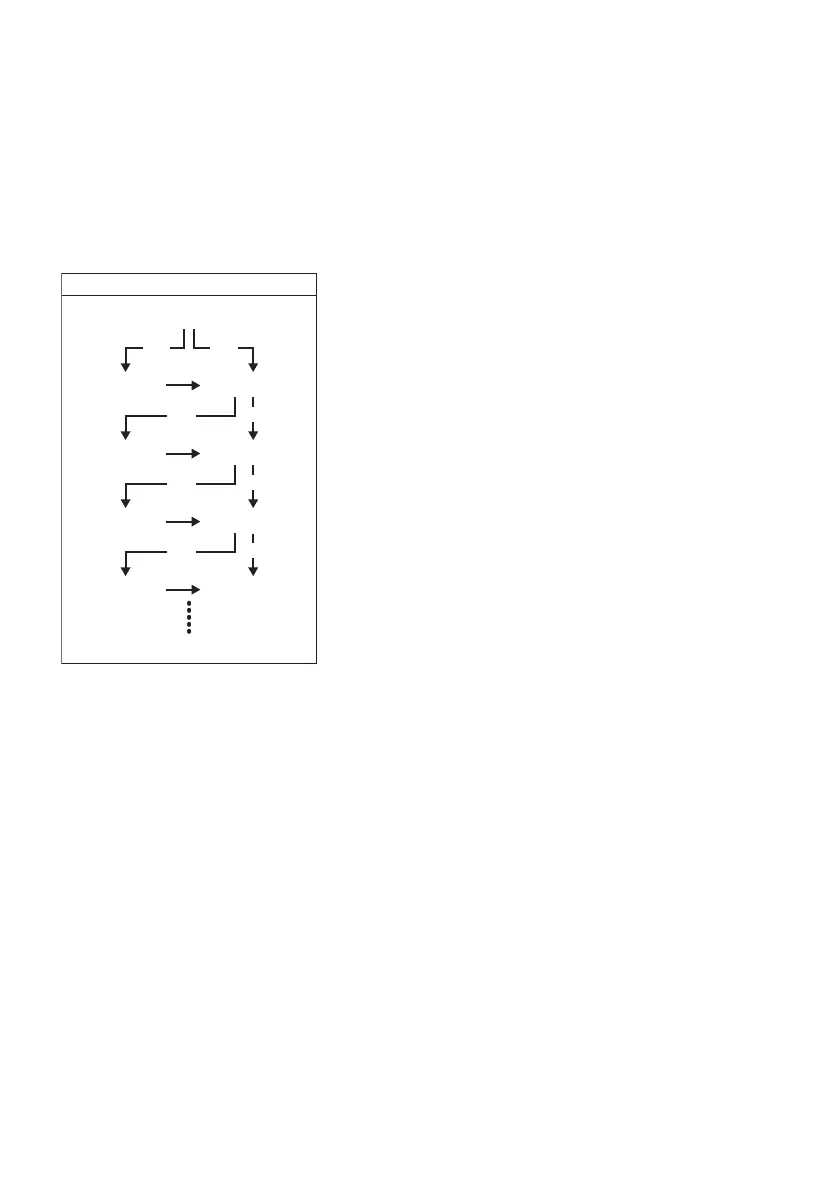

FLOWCHART OF OIL CHANGE REMINDER SYSTEM
*1: Lapse of initial 20 hour’s operation
*2: Lapse of 80 hour’s operation
*3: Lapse of 100 hour’s operation
*4: When performing cancellation before system activation
Action
Starting operation
CancellationIndication
(*1) (*4)
CancellationIndication
CancellationIndication
CancellationIndication
Repeat
(*2) (*4)
(*3) (*4)
(*3) (*4)
