1. Air flow

AIR CONDITIONING (OPTIONAL) 1B-35

CONDENSER COOLING FAN ASSEMBLY

INSPECTION

 Remove condenser assembly (Refer to “A/C CONDENSER AS-

SEMBLY REMOVAL” in this section).

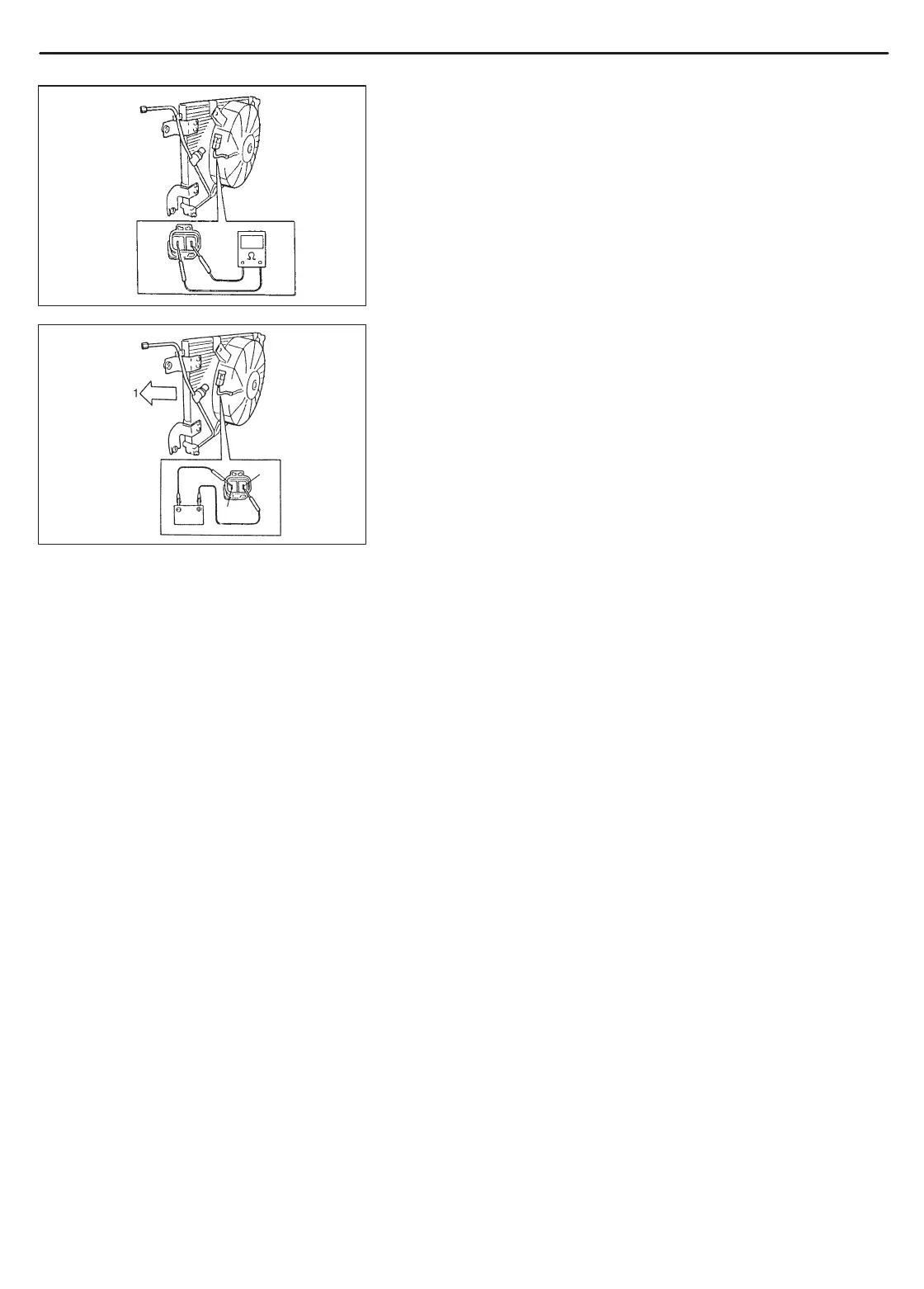

 Check continuity between terminal to terminal as shown.

If check results are continuity, proceed to next operation check.

If not, replace.

 Connect battery to condenser fan motor as shown, then check

that the condenser fan motor operates smoothly and specified

current.

Specified current: Maximum 12 A at 12 V
