YH4
GRAND
VITARA
1. Oil filler/level plug
2. Front drain plug
1. Circlip
2. Washer
1. Differential side joint
2. Tire lever
3. Front differential assembly
1. Oil seal
2
1

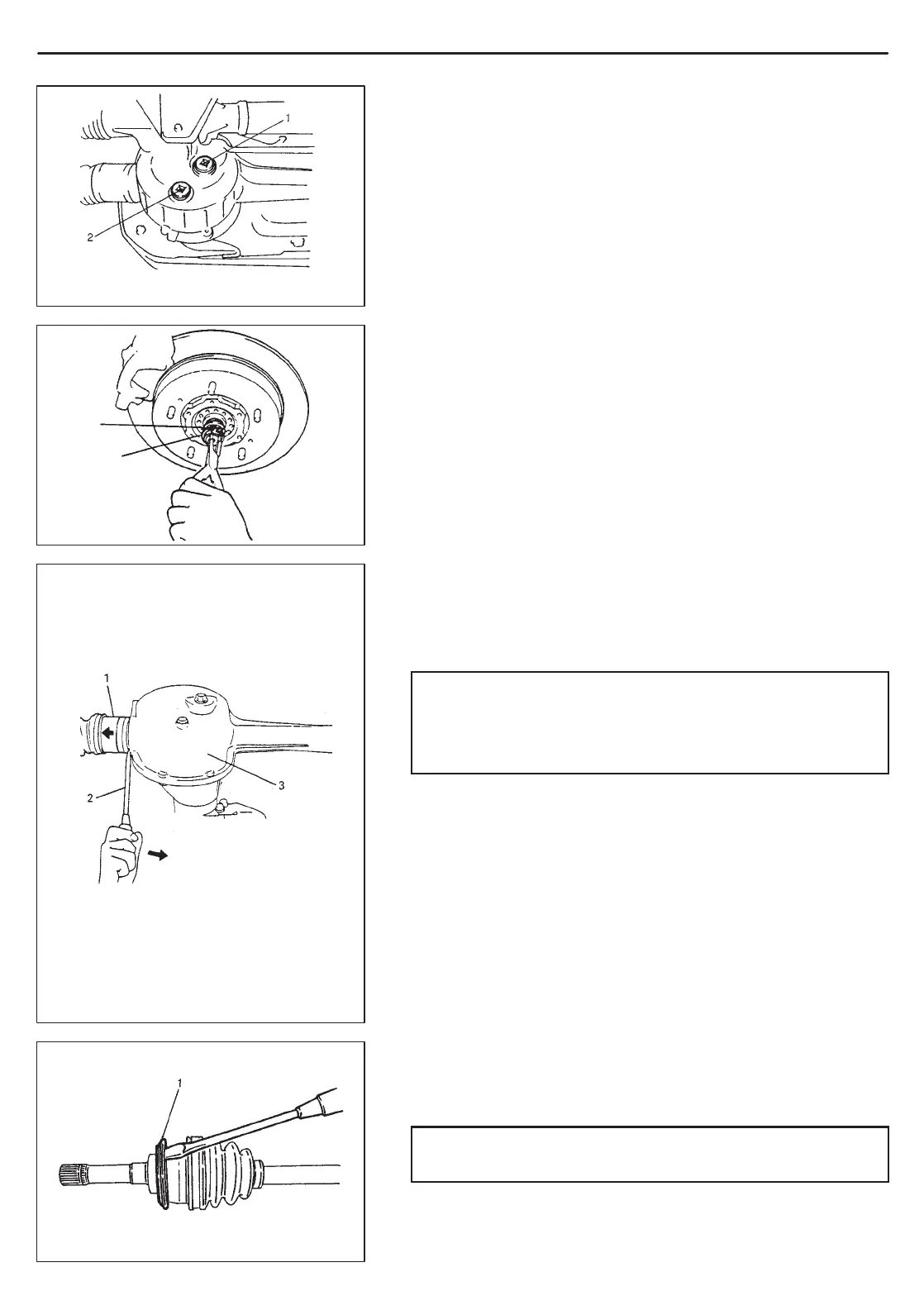

4A2-4 FRONT DRIVE SHAFT/SHAFT BEARING, OIL SEAL
REMOVAL (RIGHT SIDE)
1) Hoist vehicle and remove wheel.
2) Drain differential gear oil.
3) Remove axle shaft drive flange.
4) Remove circlip and front spindle thrust washer.
5) Remove knuckle and wheel hub comp, refer to steps 5) to 7) and
9) to 14) of item COIL SPRING REMOVAL in Section 3D.
6) Remove drive shaft assembly.
To detach snap ring fitted on the spline of differential side joint
(inboard joint) from differential side gear, pull inboard joint by us-
ing a tire lever.
CAUTION:
To prevent breakage of boots (wheel side and differential
side), be careful not to bring them into contact with other
parts when removing drive shaft assembly.
7) Remove drive shaft thrust washer (to vehicle with G16 or J20 en-
gine) from drive shaft and remove drive shaft oil seal as shown
in figure.
CAUTION:
Be careful not to cause damage to drive shaft joint.
To Next Page
