YH4
GRAND
VITARA

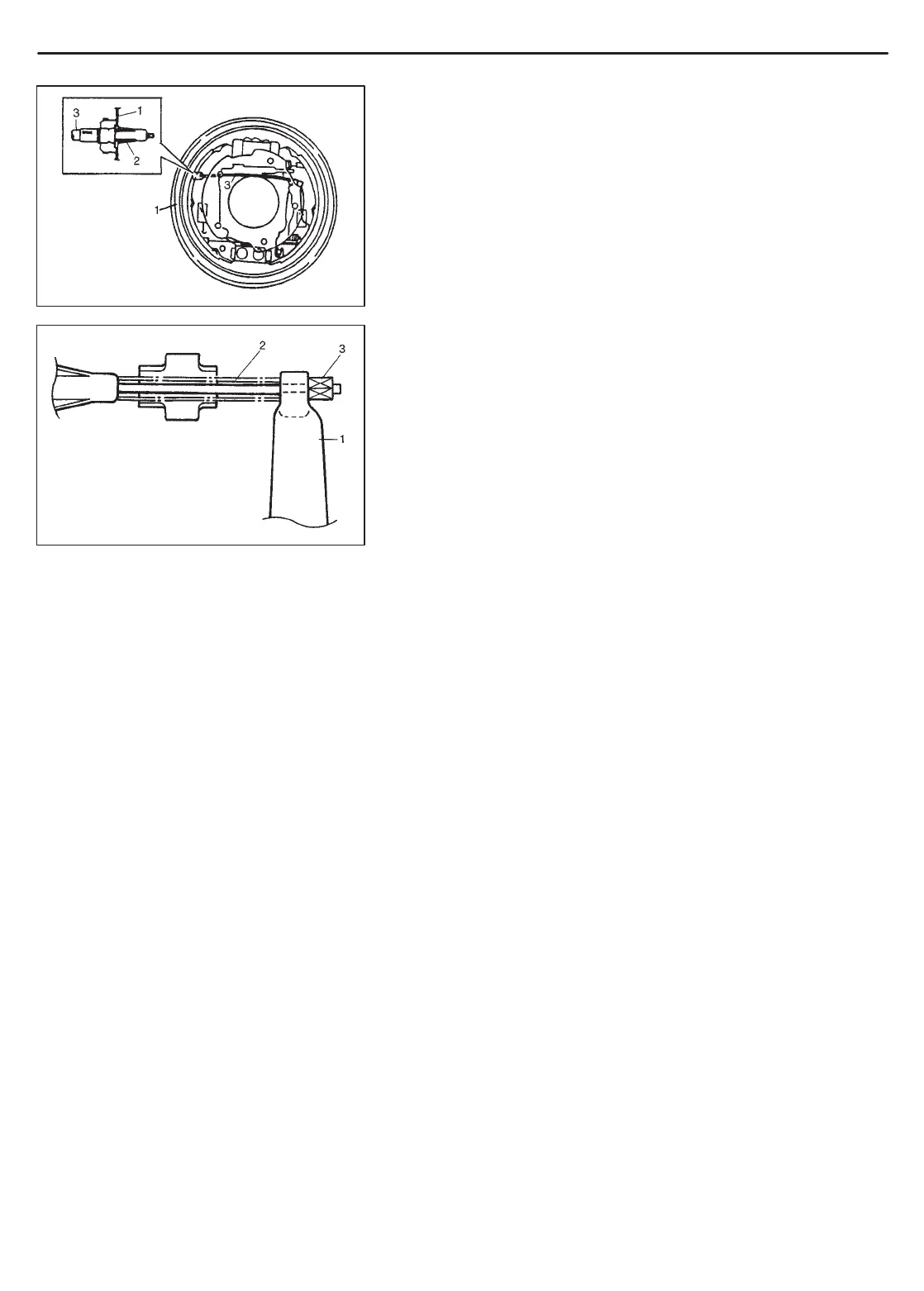

1. Brake back plate
2. Cable cap
3. Brake cable
1. Parking brake shoe lever
2. Spring
3. Nipple end
5C-6 PARKING AND REAR BRAKE
INSTALLATION
Install parts in reverse order of removal procedure, noting the fol-
lowing.
1) Install brake cable cap to brake back plate securely as shown in
figure.
NOTE:
Color ring or tape on brake cable is for the purpose of identi-
fication. Use cable with the same colored ring as before re-
moval.
2) Install brake cable spring and nipple end to parking brake shoe
lever securely as shown in figure.
3) For brake shoe installation, refer to steps 1) and 4) of BRAKE
SHOE INSTALLATION of this section.
4) For brake drum installation, refer to steps 1) and 3) of BRAKE
DRUM INSTALLATION of this section.
5) For proper routing and secure clamping of parking brake cable.
6) For installation of cable to parking brake lever, refer to PARKING
BRAKE LEVER INSTALLATION of this section.
7) Upon completion of installation, adjust cable. (Refer to PARK-
ING BRAKE CHECK AND ADJUSTMENT in Section 5.) Then
check brake drum for dragging and brake system for proper per-
formance. After removing vehicle from hoist, brake test should
be performed.
