YH4
GRAND
VITARA
5C-16 PARKING AND REAR BRAKE

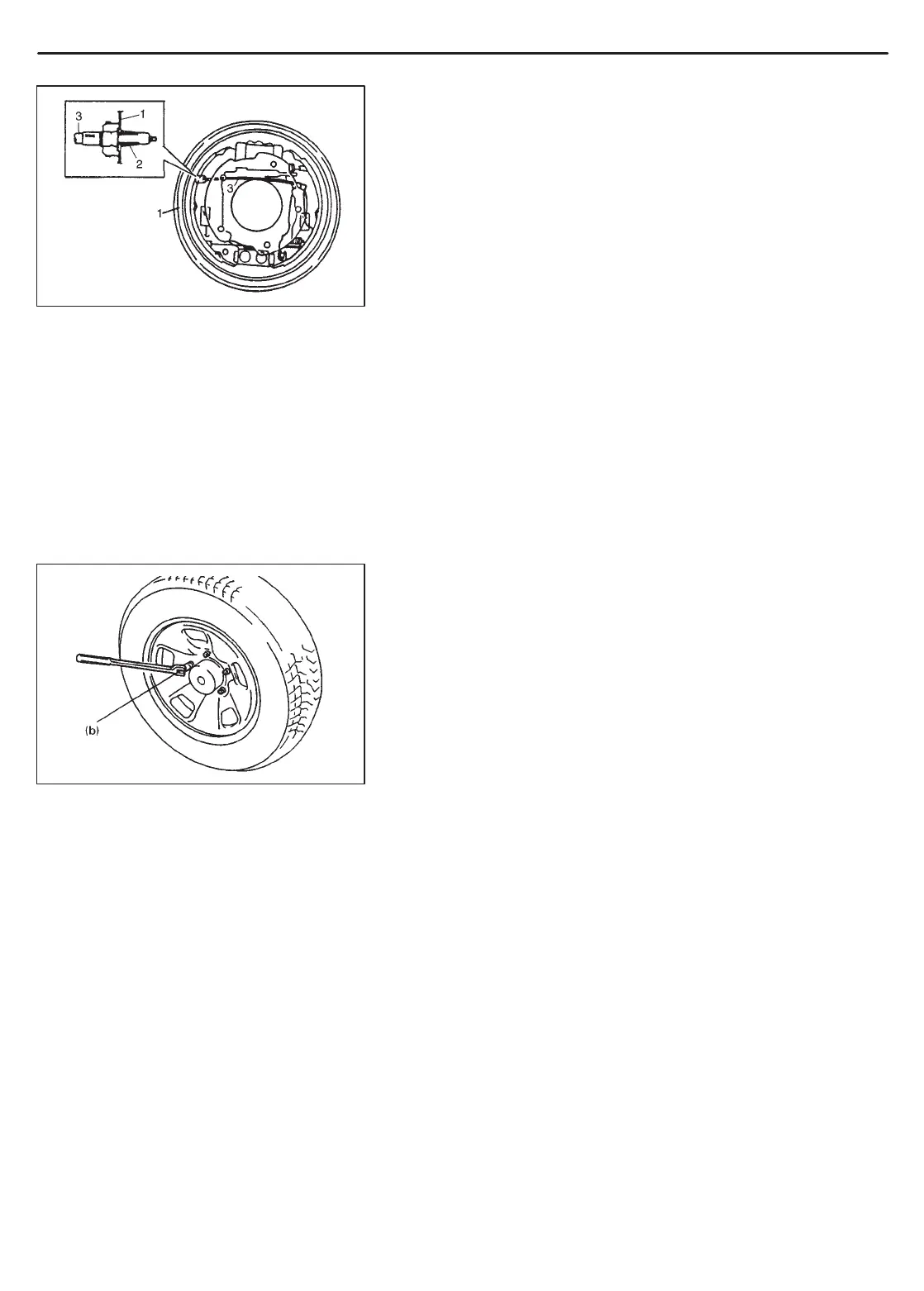

1. Brake back plate
2. Cable cap
3. Parking brake cable
6) Install wheel cylinder, and tighten wheel cylinder bolts and
brake pipe flare nut (or nuts) to specified torque. (Refer to steps
1) to 4) of WHEEL CYLINDER INSTALLATION of this section.)
7) Install parking brake cable to brake back plate.
8) Install brake shoes, referring to steps 1) to 4) of BRAKE SHOE
INSTALLATION.
9) Install brake drum. Refer to steps 1) to 2) of BRAKE DRUM
INSTALLATION in this section.
10) Refill differential housing with new specified gear oil. Refer to
“MAINTENANCE SERVICE” in Section 7E for refill.
11) Fill reservoir with brake fluid and bleed brake system. (For
bleeding operation, refer to BLEEDING BRAKES in Section 5.)
12) Install wheel and tighten wheel nuts to specified torque.
Tightening Torque
(b): 100 N
.
m (10.0 kg-m, 72.5 lb-ft)
13) Upon completion of all jobs, depress brake pedal with about 30
kg (66 lbs) load three to ten times so as to obtain proper drum-
to-shoe clearance.
Adjust parking brake cable. (For adjustment, refer to PARKING
BRAKE CHECK AND ADJUSTMENT in Section 5.)
14) Tighten rear center console box screws.
15) Check to ensure that brake drum is free from dragging and
proper braking is obtained. Then remove vehicle from hoist
and perform brake test (foot brake and parking brake).
16) Check each installed part for oil leakage.
