1J-10 Charging System:
Water Pump and Generator Drive Belt Removal
and Installation (For J20 Engine)
S5JB0A1A06014
Removal
WARNING
!
Disconnect negative (–) cable at battery
before removing and installing generator
belt.
1) Loosen tensioner by turning the tensioner pulley (2)
clockwise.
2) While holding the tensioner and belt loose, remove
generator belt (1).
Installation
1) Loosen tensioner by turning the tensioner pulley (2)
clockwise.
2) While holding the tensioner, install generator belt (1).
NOTE
• Make sure that the belt fits each pulley’s
groove properly.
• After installing generator belt, make sure
that tension indicator is within standard
range referring to “Water Pump and
Generator Drive Belt On-Vehicle Inspection
(For J20 Engine): ”.

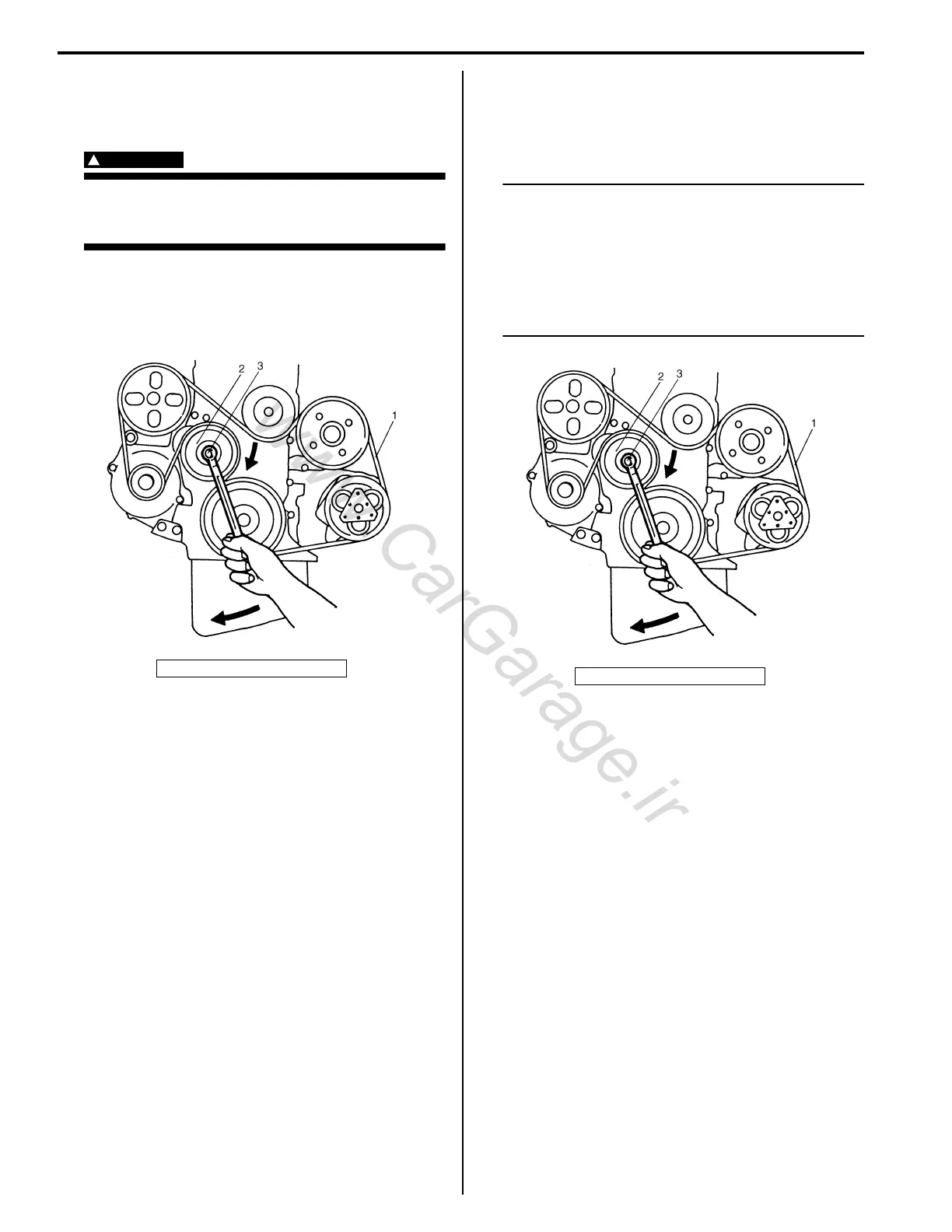

3. Tensioner pulley bolt
I3TR011A4001-01
3. Tensioner pulley bolt
I3TR011A4001-01
