1A-81 Engine General Information and Diagnosis:
DTC Troubleshooting
NOTE
Before this trouble shooting is performed, read the precautions for DTC troubleshooting referring to
“Precautions For DTC Troubleshooting: ”.
Step Action Yes No
1 Was “Engine and Emission Control System Check”
performed?
Go to Step 2. Go to “Engine and
Emission Control
System Check: ”.
2 MAP sensor and its circuit check
1) Connect scan tool to DLC with ignition switch turned
OFF.
2) Turn ON ignition switch.
3) Check intake manifold pressure displayed on scan tool.
Is it 0 kPa (0 in.Hg)?
Go to Step 3. Intermittent trouble.
Check for intermittent
referring to “Intermittent
and Poor Connection
Inspection: in Section
00”.
3 MAP sensor power supply voltage check
1) Disconnect connector from MAP sensor with ignition
switch turned OFF.
2) Check for proper connection of MAP sensor at “GRY/
RED”, “RED/WHT” and “GRY/GRN” wire terminals.

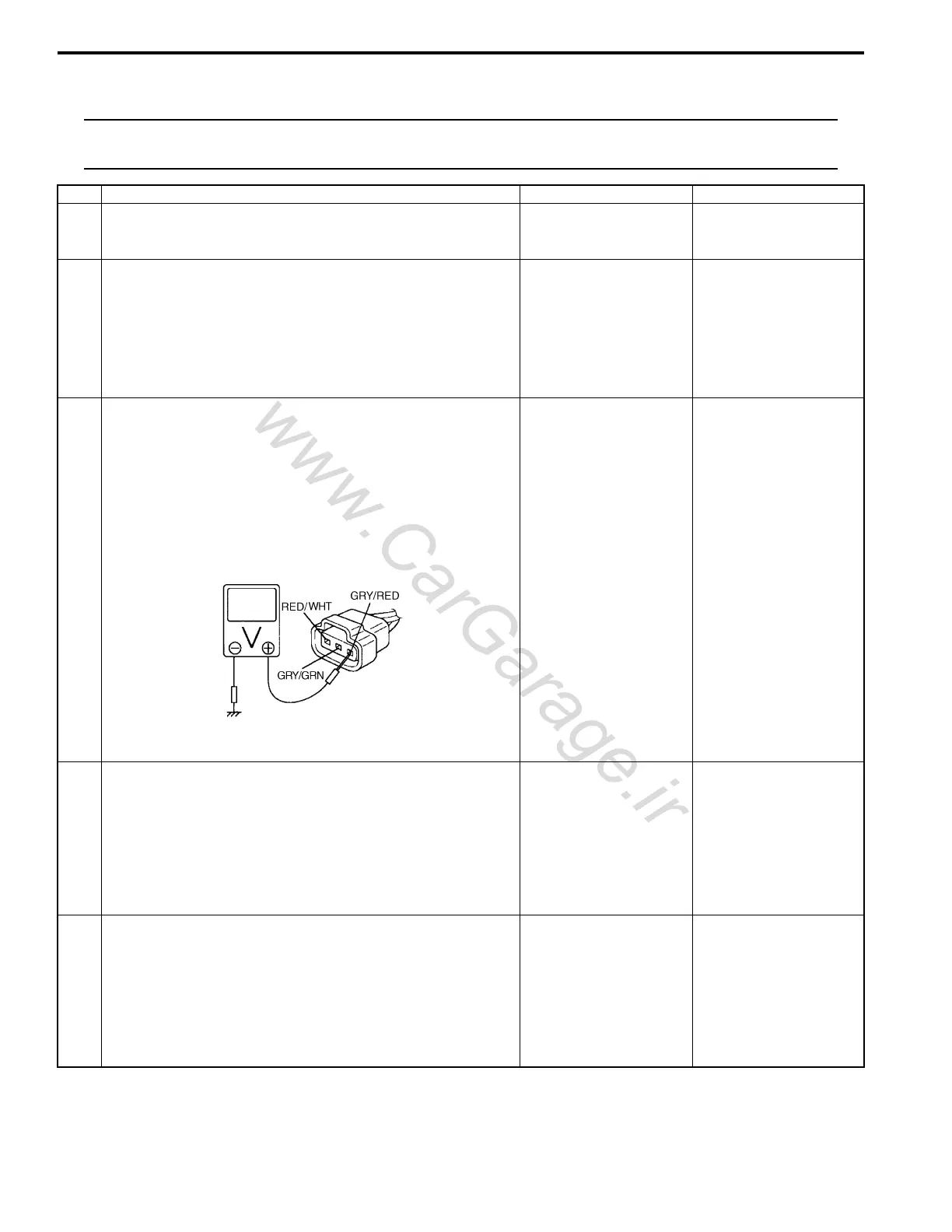

3) Turn ON ignition switch, measure voltage between
engine ground and “GRY/RED” wire terminal of MAP
sensor connector.
Is voltage 4 – 6 V?
Go to Step 5. Go to Step 4.
4 MAP sensor power supply circuit check
1) Disconnect connectors from ECM with ignition switch
turned OFF.
2) Measure resistance between “GRY/RED” wire terminal
of MAP sensor connector and “C37-14” terminal of ECM
connector.
Is resistance below 3
Ω
?
Go to Step 5. “GRY/RED” wire is open
circuit.
5 MAP sensor signal circuit check
1) Connect connectors to ECM with ignition switch turned
OFF.
2) Measure voltage between “RED/WHT” wire terminal of
MAP sensor connector and engine ground with ignition
switch turned ON.
Is voltage 4 – 6 V?
Go to Step 7. Go to Step 6.
I5JB0A110035-01
To Next Page
