Suzuki GSF650 Service Manual

Rear Suspension: 2C-12
Installation
CAUTION
!
The removed bearings must be replaced with
new ones.

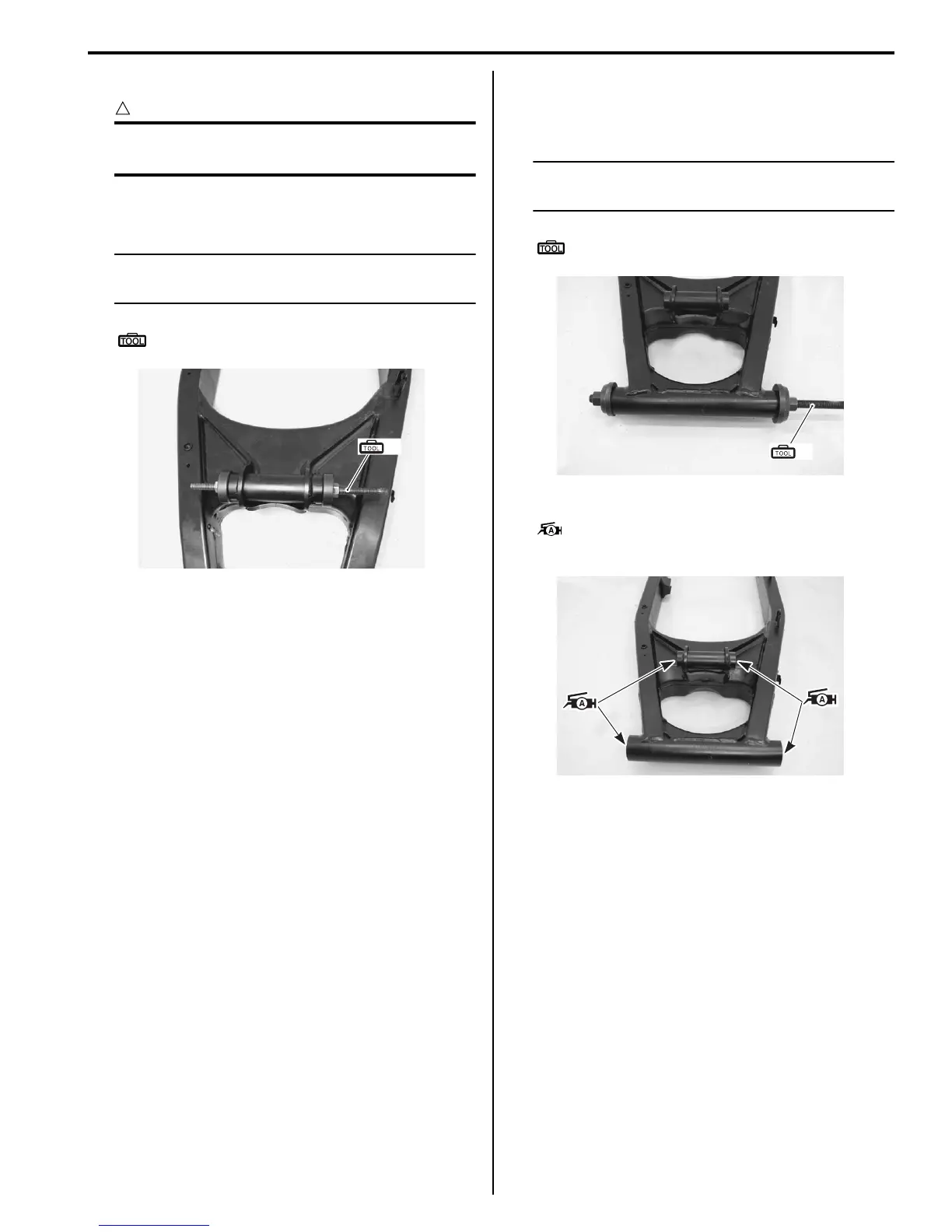

1) Press the swingarm cushion rod bearings with the
special tool.
NOTE
When installing the bearing, stamped mark
on the bearing must face outside.
Special tool
(A): 09924–84521 (Bearing installer set)
2) Install the bearing and center spacer.
3) Press the bearings into the swingarm pivot with the
special tool.
NOTE
When installing the bearing, stamped mark
on the bearing must face outside.
Special tool
(B): 09941–34513 (Steering race installer)
4) Apply grease to the bearings.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
5) Install the swingarm. Refer to “Swingarm / Cushion
Rod Removal and Installation (Page 2C-8)”.
6) Install the rear wheel assembly. Refer to “Rear
Wheel Assembly Removal and Installation (GSF650/
S/U/SUK7) in Section 2D (Page 2D-11)”.
(A)
I717H1230038-01
(B)
I717H1230039-01
I717H1230040-01
