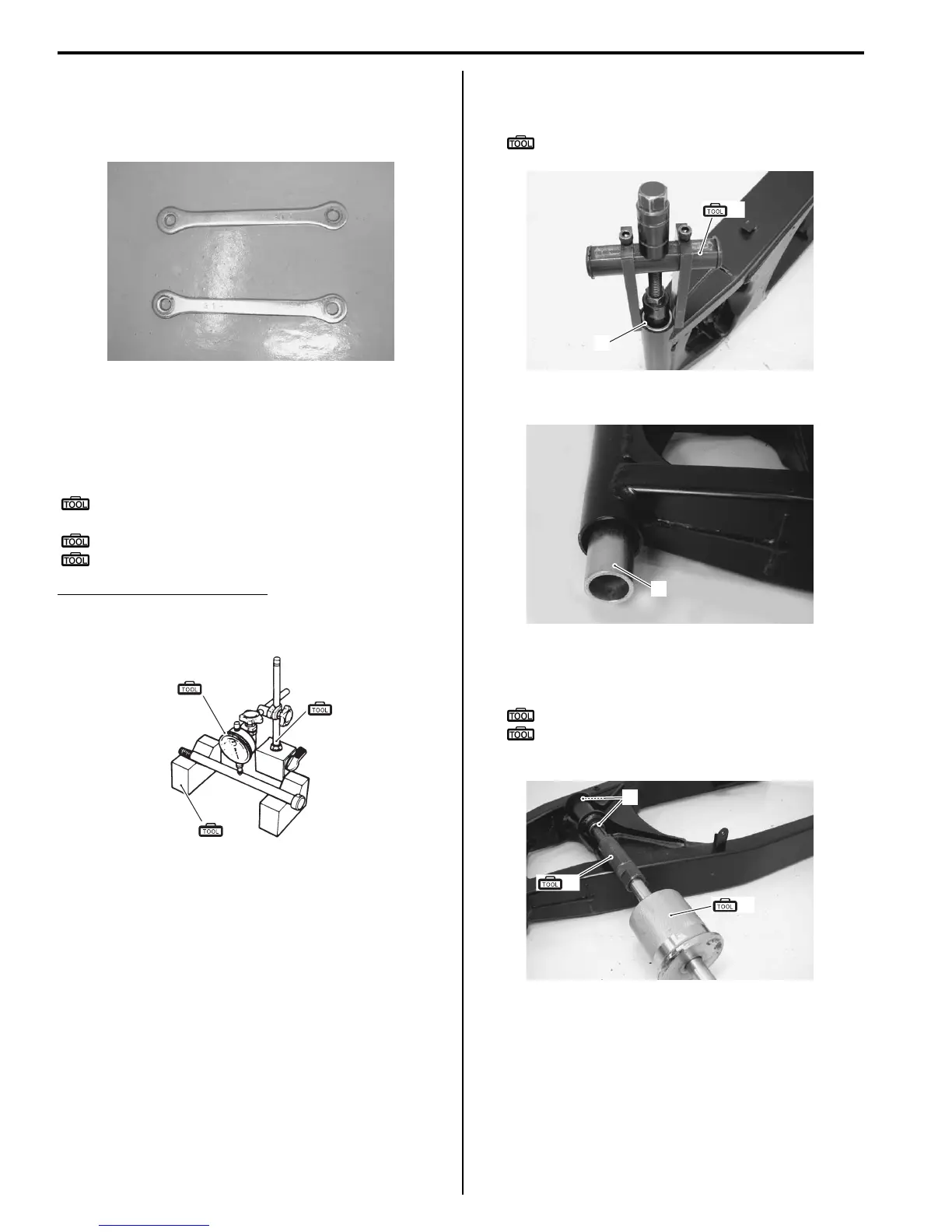

2C-11 Rear Suspension:
Cushion Rod
Inspect the cushion rods for damage and bend. If any
defects are found, replace the cushion rods with new
ones.
Swingarm Pivot Shaft
Measure the swingarm pivot shaft runout using the dial
gauge. If the runout exceeds the service limit, replace
the pivot shaft.
Special tool
(A): 09900–20607 (Dial gauge (1/100 mm, 10
mm))
(B): 09900–20701 (Magnetic stand)
(C): 09900–21304 (V-block (100 mm))
Swingarm pivot shaft runout
Service limit: 0.3 mm (0.01 in)
Swingarm Bearing Removal and Installation
B817H22306013
Removal
1) Remove the rear wheel assembly. Refer to “Rear
Wheel Assembly Removal and Installation (GSF650/
S/U/SUK7) in Section 2D (Page 2D-11)”.
2) Remove the swingarm. Refer to “Swingarm /
Cushion Rod Removal and Installation (Page 2C-8)”.
3) Draw out the swingarm pivot bearings (1) using the
special tool.
Special tool
(A): 09921–20240 (Bearing remover set)
4) Remove the center spacer (2).
5) Remove the swingarm cushion rod bearings (3)
using the special tools.
Special tool
(B): 09923–73210 (Bearing remover)
(C): 09930–30104 (Rotor remover sliding
shaft)
I717H1230034-01
(A)
(B)
(C)
I649G1230034-03
(A)
1
I717H1230035-01
2
I717H1230036-01
(B)
(C)
3
I717H1230037-03
