1D-36 Engine Mechanical:

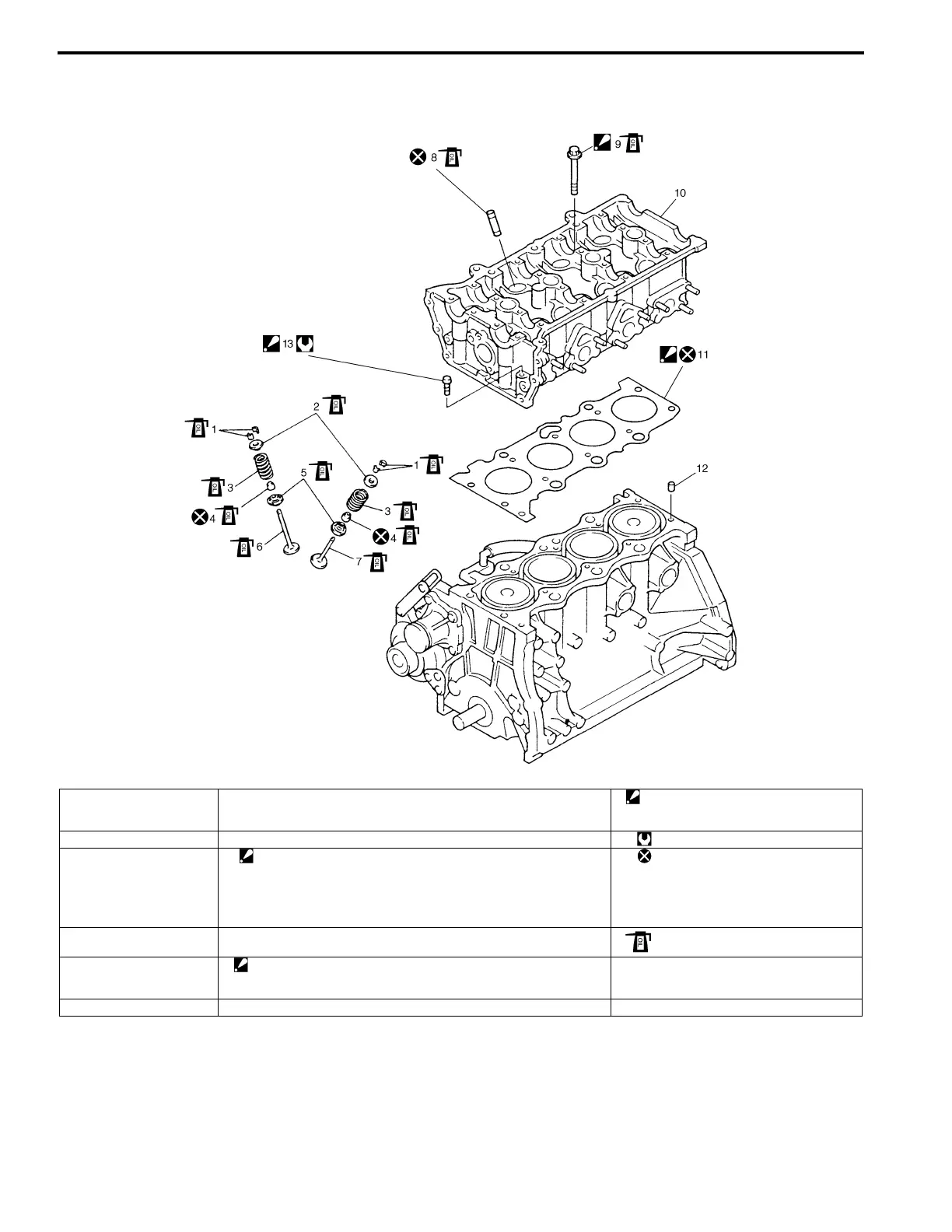

Valves and Cylinder Head Components
S3RH0B1406023
I3RH0B140044-01
1. Valve cotters 7. Exhaust valve 13. Cylinder head bolt for M8
: Tighten 25 N⋅m (2.5 kgf-m, 18.0 lb-ft)
by the specified procedure.
2. Valve spring retainer 8. Valve guide : Tightening torque
3. Valve spring 9. Cylinder head bolt for M10
: Make sure cylinder head bolt (M10) diameter when reuse it due to
plastic deformation tightening referring to “Valves and Cylinder Head
Removal and Installation”.
: Tighten 20 N⋅m (2.0 kgf-m, 14.5 lb-ft), 40 N⋅m (4.0 kgf-m, 29.0 lb-ft),
60° and 60° by the specified procedure.
: Do not reuse.
4. Valve stem seal 10. Cylinder head : Apply engine oil to sliding surface of
each part.
5. Valve spring seat 11. Cylinder head gasket
: “TOP” mark provided on gasket comes to crankshaft pulley side,
facing up.
6. Intake valve 12. Knock pin
To Next Page
