Maintenance and Lubrication: 0B-1
Maintenance and Lubrication
Repair Instructions
Automatic Transaxle Fluid Inspection
S3RH0B0206030
1) Inspect transaxle case for evidence of fluid leakage.
Repair leaky point, if any.
2) Make sure that vehicle is placed level for fluid level
check.
3) Pull out dipstick and check fluid level.
For fluid level checking procedure, refer to “A/T Fluid
Level Check in Section 5A” and be sure to perform it
under specified conditions. If fluid level is low,
replenish specified fluid.
Automatic Transaxle Fluid Replacement
S3RH0B0206031
1) Inspect transaxle case for evidence of fluid leakage.
Repair leaky point, if any.
2) Make sure that vehicle is placed level.
3) Change fluid. For its procedure, refer to “A/T Fluid
Change in Section 5A”.
Automatic Transaxle Fluid Cooler Hose
Inspection
S3RH0B0206032
Check automatic transaxle fluid cooler hose for fluid
leakage, cracks, damage and deterioration.
Replace hose and/or clamp if any faulty condition is
found.

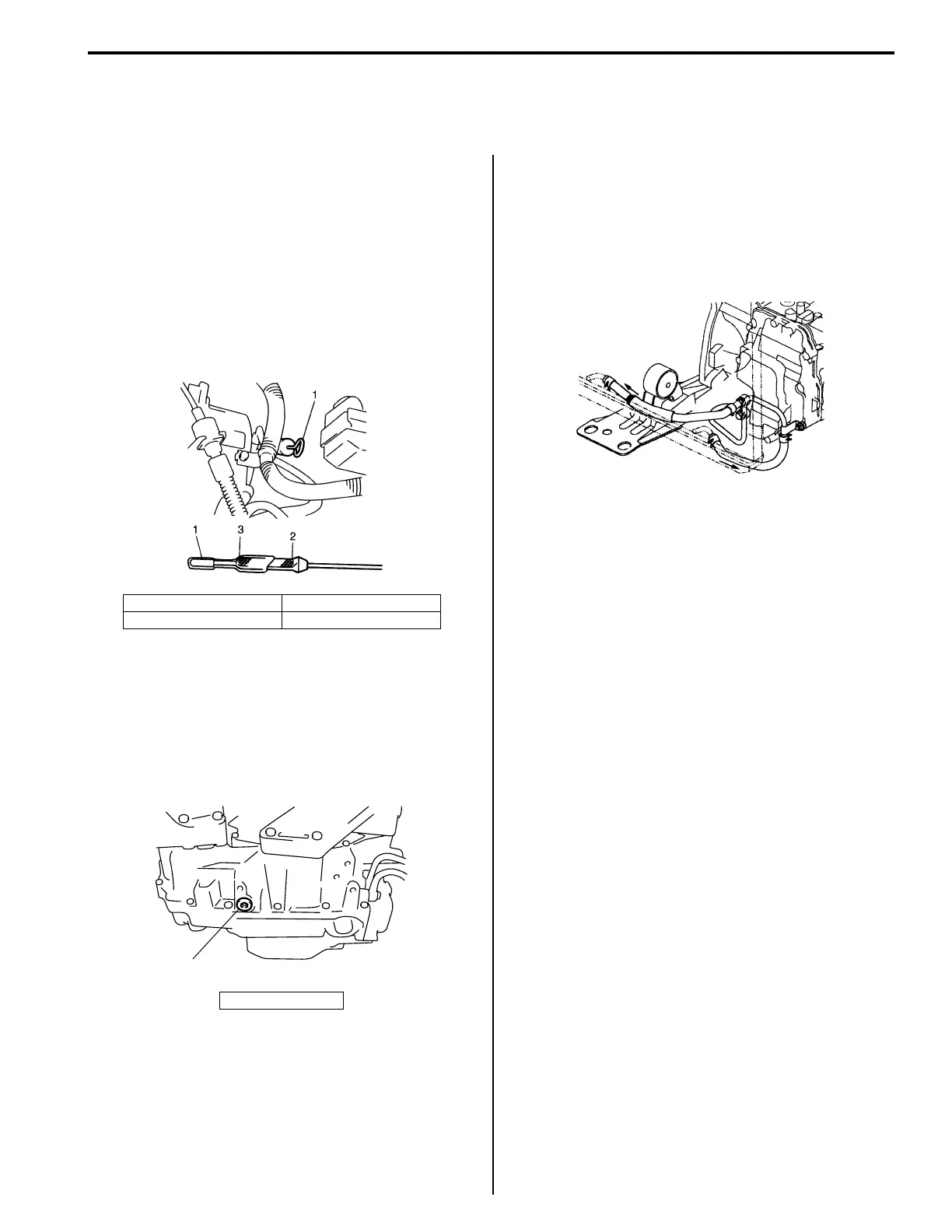

1. Dipstick 3. LOW HOT mark
2. FULL HOT mark
1. Drain plug
I2RH01020030-01
1
I2RH01020031-01
I3RH0B020001-01
