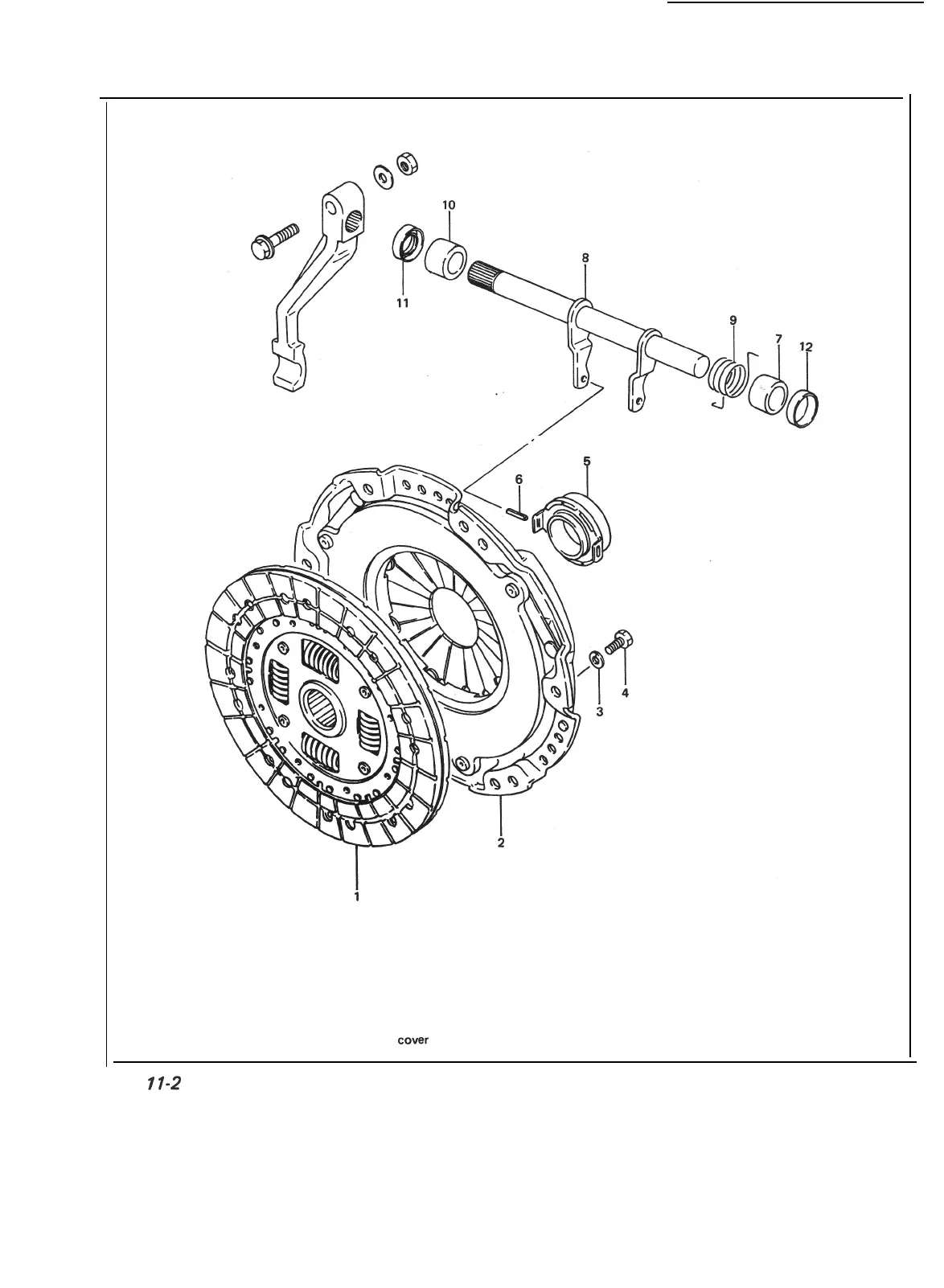

1.
Clutch disc
7.
No. 2 bushing
2. Clutch cover
8.
Clutch release
shaft
3. Lock washer
9.
Return spring
4. Cover bolt
10.
No. 1 bushing
5.
Clutch release
bearing
11.
Shaft seal
8. Clutch release fork pin
12. Shaft
cowr
Fig.
1
l-2
11-3
