SECTION 22
SERVICE DATA
CONTENTS
22-1. SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22-2. SERVICE DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

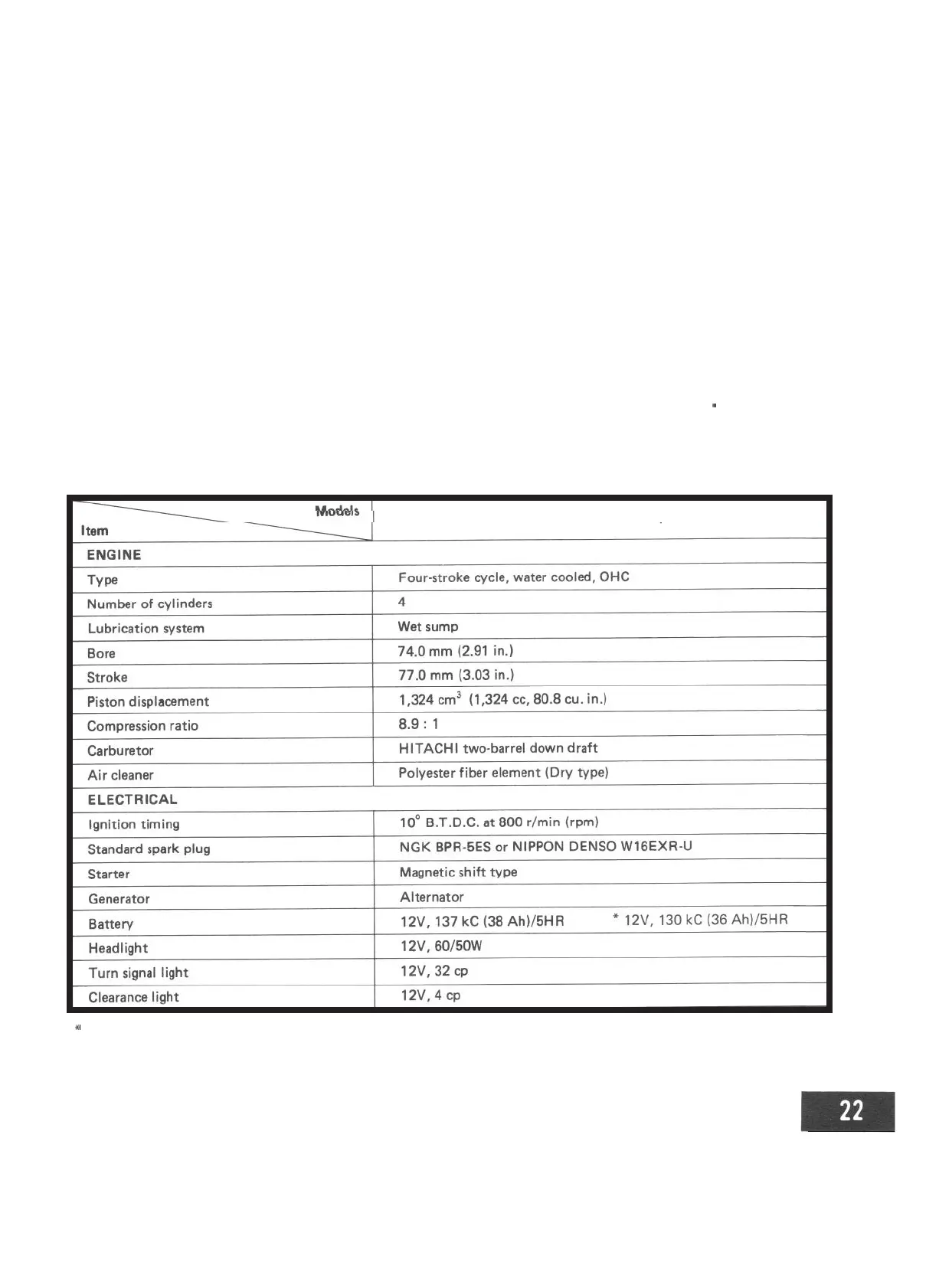

22-1. SPECIFICATIONS
Convertible/Hardtop
*
: For Canadian specification vehicle
22-1
22-4
22-1
470
472
Table of Contents
Table of Contents
3
General, Special Tools and Service Materials
4
Identification Number
4
Vehicle Identification Number
4
Engine Identification Number
4
Standard Shop Practices
5
Front Side
5
Rear Side
5
Rear Support Location
6
Front Support Location
6
When Using Frame Contact Hoist
6
Engine Cylinder Numbers
7
Special Tools
8
Required Service Materials
9
Metric Information
16
Metric Fasteners
16
Fastener Strength Identification
16
Standard Tightening Torque
17
Periodic Maintenance Service
18
Maintenance Recommended under Severe Driving Conditions
21
Severe Condition Code
21
Engine and Emission Control
22
Water Pump Belt Inspection and Replacement
22
Camshaft Timing Belt Inspection
22
Valve Lash Inspection
23
Cooling System Hoses and Connections Inspection
24
Proper Engine Oil Viscosity Chart
24
Engine Oil Capacity
24
Engine Coolant Change
24
Engine Oil and Filter Change
25
Exhaust Pipes and Mountings Inspection
26
Coolant Capacity
26
Bolts and Nut
26
Pcv Valve Replacement
27
Oxygen Sensor Replacement
27
Catalytic Converter Inspection
27
Charcoal Canister Replacement
28
Emission-Related Hoses and Tubes Inspection
28
Ecm and Associated Sensors Inspection
29
Wiring Harness and Connections Inspection
29
Spark Plugs Replacement
29
Plug Specification
30
Ignition Wiring Replacement
30
Distributor Cap and Rotor Inspection
30
Distributor Advancer Inspection
30
Fuel Filter Replacement
31
Carburetor Choke System Lubrication and Inspection
31
Air Cleaner Element
31
Fuel Tank Cap Gasket Inspection
31
Idle Speed Inspection
32
Idle Mixture Inspection
32
Mixture Adjusting Screw Pin
33
Carburetor Inspection
33
Chassis and Body
34
Clutch Pedal Inspection
34
Brake Discs, Pads, Brake Drums and Shoes Inspection
34
Brake Pedal Inspection
34
Free Wheeling Hub
35
Wheel Bearing Inspection
35
Tire Inspection and Rotation
35
Parking Brake Cable
35
Shock Absorbers Inspection
36
Propeller Shafts Inspection and Lubrication
36
Transfer Oil Change
37
Differential Oil Change (Front and Rear)
37
Transmission Oil Change
37
Steering System Inspection
38
Door Hinges Lubrication
38
Bolts and Nuts Tightening
38
Alignment Service Data
38
Final Inspection
39
Table of Contents
40
Trouble Shooting
40
Engine
41
Carburetor
48
Exhaust and Muffler
48
Clutch
48
Transmission
49
Differentials
50
Propeller Shafts
51
Brakes
51
Suspension, Steering System and Tires
53
Starting Motor
55
Alternator
56
Wiper Motor
57
Fuel Meter
57
Speedometer
58
Water Temperature Meter
58
Engine
59
General Description
60
Engine Lubrication
61
Crankshaft and Main Bearings
62
Cylinder Block
62
Cylinder Head and Valve Train
62
Pistons, Rings, Piston Pins and Connecting Rods
62
Engine Services Not Requiring Engine Removal
63
Engine Removal
64
Engine Disassembly
67
Inspection of Engine Components
75
Flatness of Gasketed Surface
76
Rocker-Arm Shaft and Rocker Arms
77
Runout of Rocker-Arm Shaft
77
Valve Guides
77
Valves
78
Seating Contact Width
79
Valve Seats
79
Exhaust Valve Seat
80
Valve Lapping
80
Valve Seat Repair
80
Measuring Free Length of Spring
81
Measuring Spring Preload
81
Spring Squareness
81
Valve Springs
81
Cam Wear
82
Camshaft
82
Journal Wear
82
Runout of Camshaft
82
Cylinder Bore
83
Distortion of Gasketed Surface
83
Positions to be Measured
83
Honing or Reboring Cylinders
84
Piston and Piston Rings
84
Measuring Piston Ring End Gap
85
Piston Pins
85
Piston Ring End Gap
85
Ring Groove Clearance
85
Connecting Rod Alignment
86
Crank Pin and Connecting Rod Bearings
86
Rod Bearing Clearance
86
Crankshaft Thrust Play
87
Measuring Rod Bearing Clearance
87
Crankshaft Main (Journal) Bearings
88
Out-Of-Round and Taper (Uneven Wear)
88
Upper Half of Bearing Installation
88
Paint on Standard Bearing
90
Faints on Undersize Bearing
91
Flywheel
92
Oil Pump
92
Radial Clearance
92
Rear Oil Seal
92
Engine Reassembly
93
Radial Clearances
93
Timing Belt End Tensioner
93
Crankshaft
94
Ins Tatting Thrust Bearing
94
Installing Bearing Half with Oil Groove
94
Cutting off Edges of Gasket
95
Oil Seal Housing
95
Piston, Connecting Rod and Piston Rings
96
Fitting Connecting Rod to Piston
97
Fitting Piston to Special Tool
97
14 Instatting Piston Pin
98
Line Marked on Driver Handle
98
Piston Ring End Gaps Positions
98
Guide Hoses Installation
99
Instailing Bearing Cap
99
Installing Piston to Cylinder
99
Applying Sealant to Oil Pan
100
Oil Level Gauge Guide
100
Oil Pan
100
Oil Pump Strainer
100
Cylinder Head
101
Reaming Guide Hole
101
Reaming Valve Guide Bore
101
Valve Guide Installation
101
Valve Installation
102
Valve Spring Installation
102
Valve Stem Seal Installation
102
Camshaft Installation
103
Valve Totters Installation
103
Intake Manifold and Carburetor
104
Rocker Arm Shafts Installation
104
Rocker-Arm Shafts
104
Water Inlet Pipe
104
Exhaust Manifold and Cover
105
Oil Filter
105
Water Pump
105
Installing Guide, Key and Pulley
106
Pulley Pin, Slot and Pulley Bolt
106
Timing Belt Inside Cover, Belt Pulleys
106
Lug and Hole
107
Timing Marks
107
Valve Adjusting Screw and Lock Nut
107
Installing Timing Belt
108
Tensioner Bolt and Nut
108
Distributor Case
109
Fuel Pump
109
Fuel Pump Rod Installation
109
Installing Crankshaft Pulley
109
Clutch Disc and Cover
110
Cylinder Head Cover
110
Transmission Assembly
110
Valve Lash (Clearance) Adjustment
110
Checking and Adjusting Procedures
111
Engine Installation
111
Engine Maintenance Service
111
Ignition Timing
111
Camshaft Timing Belt
112
Engine Oil Filter
112
Measuring Valve Lashes
112
Compression Pressure Measurement
113
Engine Coolant
113
Exhaust Line and Muffler
113
Oil Pump Discharge Pressure Measurement
113
Oil Pressure Gauge Installation
114
Oil Pressure Switch
114
Vacuum Measurement
114
Oil Filler Cap
115
Recommended Torque Specifications
116
Fuel System
117
Carburetor
118
General Description
118
Float System
121
Mixture Control Solenoid Valve
122
Primary Slow System
122
Primary System
122
Switch Vent Solenoid
122
Fuel Cut System
123
Secondary Slow System
124
Secondary System
124
Acceleration Pump System
125
Secondary Main System
125
Choke System
126
Operation of Choke System
126
When Coolant Temperature Is Low
126
When the Coolant Temperature Rises
126
Idle up System
127
Idle-Up System Operation
127
Unloader System
127
When Coolant Temp. Rises
127
Removal and Installation
128
Unit Repair Overhaul
129
Air Horn and Hoses, Etc
130
Needle Valve Seat and Filter
130
Drain Plugs
131
Throttle Chamber
131
Hooking Throttle Lever Return Spring
132
Installing Washer
132
Primary and Secondary Main Jets
132
Installing Drain Plugs
133
Installing Jets and Air Bleeders
133
Accelerator Cable Adjustment
135
Maintenance Services
135
Float Adjustment
136
Fuel Level
136
Idle up Adjustment
136
Idle-Up Adjusting Screw
136
Checking Actuator
137
Checking TWSV
137
Checking TWSV Circuit
137
Choke Adjustment
138
Choke Valve
138
Checking Choke Piston
139
Choke Lever
139
Choke Piston
139
Fast Idle Adjustment
140
Mark on Cam and Cam Follower
140
Unloader Adjustment
140
Checking Acceleration Pump
141
Checking Secondary System
141
VTV (Vacuum Transmitting Valve)
141
Idle Speed Adjustment
142
Idle Mixture Adjustment
143
Idle Mixture Inspection and Adjustment
143
Air Cleaner
145
General Description
145
Maintenance Services
145
Fuel Pump, Filter and Lines
147
General Description
147
Fuel Filter
148
Fuel Pulp
148
Fuel Filler Cap
149
Fuel Filler Cap Cross-Section
149
Removal and Installation
149
Fuel Tank
150
Fuel Filler (Tank) Cap
151
Fuel Lines
151
Fuel Tank Purging Procedure
151
Maintenance Services
151
Accelerator Pedal
152
Precautions to be Taken in Accelerator Pedal Installation
152
Emission Control System
153
Vehicle Emission Control Information Label
156
Positive Crankcase Ventilation (Pcv) System
157
TCAC System Operation
158
Thermostatically Controlled Air Cleaner (Tcac) System
158
(Tcac) System
159
Evaporative Emission Control System
159
Hot Idle Compensator (Hic)
160
Deceleration Mixture Control System
161
Computer Controlled Emission Control System
162
Electronic Control Module
162
Feed Back System
162
Engine Coolant Temperature
163
Engine Speed
163
Throttle Position
163
Altitude Compensation
164
Bowl Ventilation System
164
Gear Position
164
Three-Way Catalyst
164
Fuel Cut System
165
Exhaust Gas Recirculation (Egr) System
166
Diagnosis
167
Possible Causes of Emissions Test Failures
167
Pcv System Diagnosis
169
Checking PCV System
170
Checking PCV Valve for Sticking
170
General
170
Maintenance Service
170
PCV Hoses
170
Air Control Actuator
171
Checking TCAC System
171
Tcac System
171
Thermo Sensor
171
Checking Canister
172
Checking Check Valve
172
Checking Vapor Storage Canister
172
Evaporative Emission Control System
172
Deceleration Mixture Control System
173
Hot Idle Compensator (Hic)
173
Mixture Control Valve (MCV)
173
Feed Back System
174
System Check Flow Chart
174
Checking Feed Back System
175
Checking Idle and Wide Open Micro Switches
175
Idle Micro Switch
176
Checking Mixture Control Solenoid Valve
177
Checking Wide Open Micro Switch
177
Wide Open Micro Switch
177
Wide Open Micro Switch Lever
177
Checking Thermal Switch
178
Checking High Altitude Compensator
179
Checking Switch in Hot Water
179
Checking Thermal Engine Room Switch
179
Checking Oxygen Sensor
180
Connector of Oxygen Sensor
180
Disconnecting Vacuum Hose
180
Moving Lever
180
Checking ECM Ground Circuit
181
Checking ECM Ground Circuits
181
Checking Feed Back System Circuits
181
ECM and Coupler
181
Body Ground
182
Engine Ground
182
Checking ECM Power Circuits
183
Checking Sensors and Their Lead Wires
184
Checking Function of Oxygen Sensor and Feed Back System
185
Checking Idle-Up Signal
187
Checking Fuel Cut System
188
Checking Switch Vent Solenoid
188
Replacing ECMI
188
Checking EGR System
189
Checking EGR Valve Diaphragm
189
Movement of EGR Valve Diaphragm
189
Vacuum Hoses
189
Bi-Metal Vacuum Switching Valve (BVSV)
190
Checking EGR Modulator
190
Filter of EGR Modulator
190
Engine Cooling System
192
6-L. GENERAL DESCRIPTION
193
Cooling System Circulation
193
Radiator Cap
194
Water Reservoir Tank
194
Thermostat
195
Coolant Draining
196
Cooling Water Pipes or Hoses
196
Radiator
196
Water Pump Drive Belt
196
Inspection of Components
198
Water Pump
199
Important Steps for Reinstallation
200
Thermostat
200
Water Pump
200
Maintenance Service
201
Radiator
201
Water Pump Belt
201
Anti-Freeze Proportioning Chart
202
Coolant Level
202
Cooling System Service
203
Cooling System, Flush and Refill
203
Installation of Radiator Cap
203
Radiator Drain Plug
203
Cooling Fan Clutch
204
Car Heater
205
Electrical Circuit
207
Blower Resistor
208
Blower Switch
208
Heater Hoses
208
Heater Services
208
Heater & Ventilator Control Cable Routing
211
Ignition System
212
Distributor
213
General Description
213
Ignition Coil
215
Spark Plug
215
Distributor
216
High Tension Cord
216
Ignition Coil
216
Maintenance Service
216
Spark Plug
216
Signal Rotor Air Gap
217
Distributor Driven Gear
219
Ignition Timing
220
Checking Vacuum Advancer
221
Distributor Drive Gear
221
Distributor
222
High Tension Cords Distribution
222
Important Reminders for Installation
222
Cranking System
223
Cranking Circuit
224
General Description
224
Starting Motor
224
Specifications
226
Lubrication
227
Removal and Installation
227
Disassembly
228
Inspect Commutator
229
Starting Motor Inspection
229
Ground Test
230
Inspect Brush
230
Inspect Field Coil
230
Open Circuit Test
230
Inspect Armature Shaft Bush
231
Inspect Brush Holder and Spring
231
Inspect Drive Lever
231
Hold in Coil Open Circuit Test
232
Inspect Magnetic Switch
232
Pull-In Coil Open Circuit Test
232
Hold-In Test
233
No-Load Performance Test
233
Performance Test
233
Pull-In Test
233
Clutch Switch
234
Charging System
235
10-L. ALTERNATOR
236
General Description
236
Data and Specification
237
Diagnosis
237
Noisy Alternator
237
Faulty Indicator Lamp Operation
238
Undercharged Battery
238
Voltmeter
238
Load Check
239
Overcharged Battery
239
Alternator Service
240
Removal
240
Inspection
242
Rotor
242
Stator
242
Assembly
243
Brush and Brush Holder
243
Condenser
243
Rectifier
243
Care of the Battery
244
General Description
244
Built-In Indicator
245
Carrier and Hold-Down
245
Visual Inspection
245
Battery Cables
246
Remove and Replace
246
Clutch
247
11-L. GENERAL DESCRIPTION
248
Clutch Cover and Disc
250
Clutch Release Bearing
250
Clutch Release Shaft Bushes
250
Input Shaft End Bearing
250
Removal
250
Backlash in Disc Setration Fit
251
Clutch Cover
251
Clutch Disc Facing Surface Condition
251
Clutch Facing Wear
251
Inspection of Components
251
Input Shaft Bearing
252
Release Bearing
252
Clutch Disc and Clutch Cover
253
Installation
253
Clutch Pedal Height
254
Clutch Release Arm
254
Clutch Release Shaft Fork
254
Maintenance Services
254
Clutch Cable Lubrication
255
Clutch Cable Routing
255
Recommended Torque Specification
256
Gear Shifting Control
257
General Description
258
Gear Shift Lever Select Guide Pins
259
Removal
259
Gear Shift Fork Shaft
260
Gear Shift Lever
260
Inspection of Components
260
Reverse & Low Speed Select Guide Pins
260
Gear Shift Lever Case
261
Installation
261
Reverse & Low Speed Guide Pins
261
Gear Shift Control Lever Seat
262
Transmission
263
In Engine Room
266
In Passenger Compartment
266
Under Engine
266
Precautions on Bush Reinstallation
267
Replacing Clutch Release Shaft Bush
267
Separating Upper Case from Lower Case
268
Removing Countershaft
269
Removing Main Shaft and Input Shaft
270
Gear Shift Fork and Shaft
272
Gear Shift Yoke
272
Neutral Position
272
Removing Shift Yokes, Forks and Shafts
272
Bearings and Bushes
274
Gears
274
Main Shaft
274
Synchronizer Hubs, Sleeves and Keys
274
Chamfered Tooth Ends of Ring
275
Combination of Gear and Synchronizer Ring
275
Input Shaft
275
Fork Shaft Locating Springs
276
Synchronizer Rings
276
Extension Case Bush
277
Gear Shift Shafts
277
Main Shaft and Input Shaft
277
Gear Shift Fork
282
Yokes
283
Transmission Lower Case and Upper Case
284
Extension Case
285
Input Shaft Bearing Retainer
286
Transmission Oil
287
Transfer Gear Box
289
General Description
290
2-Wheel Drive (Rear-Wheel Drive)
291
4-Wheel Drive HIGH (All-Wheel Drive on HIGH)
291
Selective Flows of Transfer Drive
291
4-Wheel Drive LOW (All-Wheel Drive on LOW)
292
Gear Ratio Data
292
Transfer Services Not Requiring Transfer Removal
293
Removal
294
Disassembly
296
Speedometer Driven Gear
296
Transfer Front Case
296
Universal-Joint Yoke Flanges
296
Transfer Center Case
297
Gear Teeth
300
Inspection of Components
300
Locating Spring
300
Transfer Rear Case
300
Output High Gear
301
Output Low Gear
301
Side Clearance of Gears
301
4WD Gear Shift Lever
302
Reassembly
302
Output Rear Shaft
303
Shim Adjustment of Input and Output Shafts
304
Center Case
306
Center and Rear Cases
308
Front Case
309
Maintenance Services
310
Oil and Oil Capacity
310
Oil Level
310
Tightening Torque
311
Propeller Shafts
312
General Description
313
Installation
314
Removal
314
Maintenance Services
315
Universal Joint Noise
315
Bolts & Nuts
316
Tightening Torque
316
Disassembling on Flange Yoke Side
317
Reassembly
318
Differential
320
General Description
321
Removal
322
Disassembly
325
Inspection and Adjustment of Components
326
Side Gear Thrust Play
326
Determination of Shim Thickness for Bevel Pinion
327
Bevel Pinion Bearing Preload Adjustment
328
Bevel Gear Backlash Adjustment
329
Drive Bevel Pinion Bearing Starting Torque (Preload)
329
Pinion-To-Gear Tooth Contact Pattern Check and Adjustment
330
Differential Pinion Shaft (Shorter)
332
Differential Side Bearings
332
Drive Bevel Gear Bolts
332
Reassembly
332
Bevel Pinion Bearings
333
Brake Circuit Air Purging
334
Differential Gear Oil
334
Installation
334
Rear Brake Drum
334
Side Bearings Caps
334
Maintenance Services
335
Oil Change
335
Recommended Torque Specifications
335
Suspension
336
Front Suspension
337
Barfield Joint Construction and Operation
339
Leaf Spring
340
Shock Absorber
340
Stabilizer
340
Front Wheel Hub 81 Bearing
341
Circlip Remover
342
Steering Knuckle
343
Front Axle Shaft Joint
344
Barfield Joint
345
Front Wheel Bearing
345
Leaf Spring Bushes
345
Stabilizer and Its Bush
345
Kingpins and Bearings
346
Steering Knuckle Oil Seal
346
Rear Suspension
350
Rear Axle Shaft
351
Leaf Spring and Bumper
355
Bolts and Nuts
359
Rear Wheel Bearing
359
Front Free Wheeling Hub
362
Steering System
365
General Description
366
Right-Hand Steering Vehicle
366
Left-Hand Steering Vehicle
367
Specifications and Data
368
Removal
369
Steering Column
369
Steering Hand Wheel
369
Gear Box
372
Steering Lock
372
Tie Rod and Tie Rod End
372
Adjustment of Worm Shaft Starting Torque
373
Inspection of Components
373
Left Hand Steering Vehicle
373
Steering Gear Box
373
Checking Steering Column for Accident Damage
375
Important Steps in Reinstallation
376
Steering Damper
377
Steering Handwheel
380
Toe Setting
380
Wheel Alignment
380
Camber
381
Camber and Caster Adjustment
381
Reference Information
381
Toe Adjustment
381
Maintenance Services
382
Steering Handwheel Play
382
Steering Rubber Joint
382
Steering Shaft Joint
382
Tire Wear Indicato
383
Tires
383
Inflation of Tires
384
Tire Rotation
384
Wheels
384
Tire Demounting and Mounting
385
Tire Repair
385
Recommended Torque Specifications
386
Brakes
387
General Description
388
Master Cylinder Assembly
390
Master Cylinder OPERATION
390
Normal Operation
390
One-Circuit Operation
391
Disc Brake Caliper Assembly
392
Clearance Correction
393
Single Piston Floating Caliper Type
393
Drum Brake Assembly
394
Rear Brake Operation
395
Booster Assembly
397
Booster
398
Vacuum Booster Assembly
398
When Foot Brake Pedal Is Not Depressed
398
When Foot Brake Pedal Is Depressed
399
When Foot Brake Pedal Is Released
399
Brake Pad
400
Front Disc Brake
400
Caliper
401
Disc
402
Brake Disc
403
Bush Dust Boot and Cylinder Boot
403
Cylinder Slide Bush
403
Piston and Boot
404
Piston Seal
404
Precautions on Installation
404
Front Brake Disc and Pad
405
Front Brake Flexible Hose
405
Front Wheel Spindle
405
Brake Drums
406
Inspection for Front Brake after Installing
406
Rear Drum Brake
406
Brake Drum
407
Brake Shoes and Strut
407
Cracked, Scored, or Grooved Drum
407
Brake Shoe and Rim
408
Brake Strut
408
Wheel Cylinder
408
Self Shoe Clearance Adjusting System
409
Springs
409
Master Cylinder
413
Master Cylinder Inner Parts
414
Reservoir
414
Precaution of Installation
415
Brake Booster
416
Inner Parts
419
Metal Parts
419
Rubber Parts
419
Booster Inspection Table
420
Parking Brake
424
Brake Pipes and Hoses
425
B-Way Joint
426
Brake Flexible Hose and E-Ring
426
Clamp
426
Upper Side
426
Brake Pipes (Right
427
Brake Fluid Leaks
428
Brake Fluid Level Inspection
428
Fill Reservoir
428
Maintenance Service
428
Road Testing Brakes
428
Brake Pedal Free Height Adjustment
429
Excessive Pedal Travel Check
429
Stop Light Switch Adjustment
429
Brake Hose and Pipe Inspection
430
Disc Inspection
430
Hose
430
Rear Brake Shoe & Lining Inspection
430
Brake Pedal Play Inspection
431
Flushing Brake Hydraulic System
431
Parking Brake Lever Stroke Adjustment
431
Rear Drum Brake Shoe Adjustment
431
Bleeding Brakes
432
Check Air Tightness
433
Inspect Booster Operation
433
Inspection Without Tester
433
Check Air Tightness under Load
434
Check Operation
434
Torque Specification
435
Body Service
436
Description
437
Front Door
437
Door Window Glass
438
Door Glass
440
Door Window Glass or Regulator
440
Door Window Regulator
440
Front Door Lock
440
Installation
440
Door Outside Open Rod
441
Regulator Handle
441
Water Proof Film
441
Door Lock Inside Handle
442
Door Lock Rod Pin
442
Door Lock Striker
442
Cleaning
443
Windshield
443
Installation
444
Back Door (Applicable to Hard Top Vehicle)
446
Door Lock and Stricker Adjustment
446
Door Lock Stricker
447
Handling of Back Door Balancer
447
Chassis Dimensions
448
Body Electrical Equipment
449
Combination Meter
450
Combination Meter Circuit and Components
450
Combination Meter with Tachometer
451
Combination Meter Without Tachometer
451
Head Light
452
Wiring Circuit
452
Beam Alignment
453
Headlight Beam Setting (Standard Procedure)
453
Headlight Inspection
453
Combination Switch (Lighting Switch Circuit)
454
Head Light Dimmer Switch
454
Headlight Adjustment
454
Switch Connector
454
Turn Signal Light and Hazard Warning Light
455
Hazard Warning Switc
456
Turn Signal & Hazard Warning Switch
456
Turn Signal Switch
456
2-Speed Type
457
Interval Wiper Relay Circuit
457
Windshield Wiper Motor
457
No-Load Run Test
458
Wiper Trouble Diagnosis
458
Automatic Stop Action Test
459
Internal Wiper Relay Test
459
Water Temperature Meter and Gauge
459
Fuel Level Meter and Gauge
460
Gauge Unit
460
Resistance- Temp. Relationship
460
Brake Warning Lamp
461
Resistance-Fuel Level Relationship
461
Brake Fluid Level Switch
462
Oil Pressure Lamp
462
4WD Switch
463
Seat Belt Warning Lamp/Buzzer
463
Wheel Drive Lamp
463
Ilumination Controller
464
Main Switch Key Warning Buzzer
464
REAR DEFOGGER ( Hard-Top )
464
Checking Wire for Damaged Place
465
Defogger Circuit
465
Defogger Wire
465
Repair
465
Fuse Box
466
Engine Room Wiring
467
Wiring Harness Routing
467
Instrument Panel Wiring
469
Wiring Diagram
470
Service Data
471
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Suzuki Samurai 1986 and is the answer not in the manual?
Ask a question
Suzuki Samurai 1986 Specifications
General
Brand
Suzuki
Model
Samurai 1986
Category
Automobile
Language
English
Related product manuals
Suzuki Samurai 1987
482 pages
Suzuki Samurai 2 WD 1991
49 pages
Suzuki SX4
46 pages
Suzuki Swift
557 pages
Suzuki SF413
674 pages
Suzuki 2009 SX4
50 pages
Suzuki Swift 2015
336 pages
Suzuki 1999 SY418
355 pages
Suzuki Swift Sport
358 pages
Suzuki SX4 S-Ccross
454 pages
Suzuki SX4/SX4 SEDAN
278 pages
Suzuki sq-416-420-625
801 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
