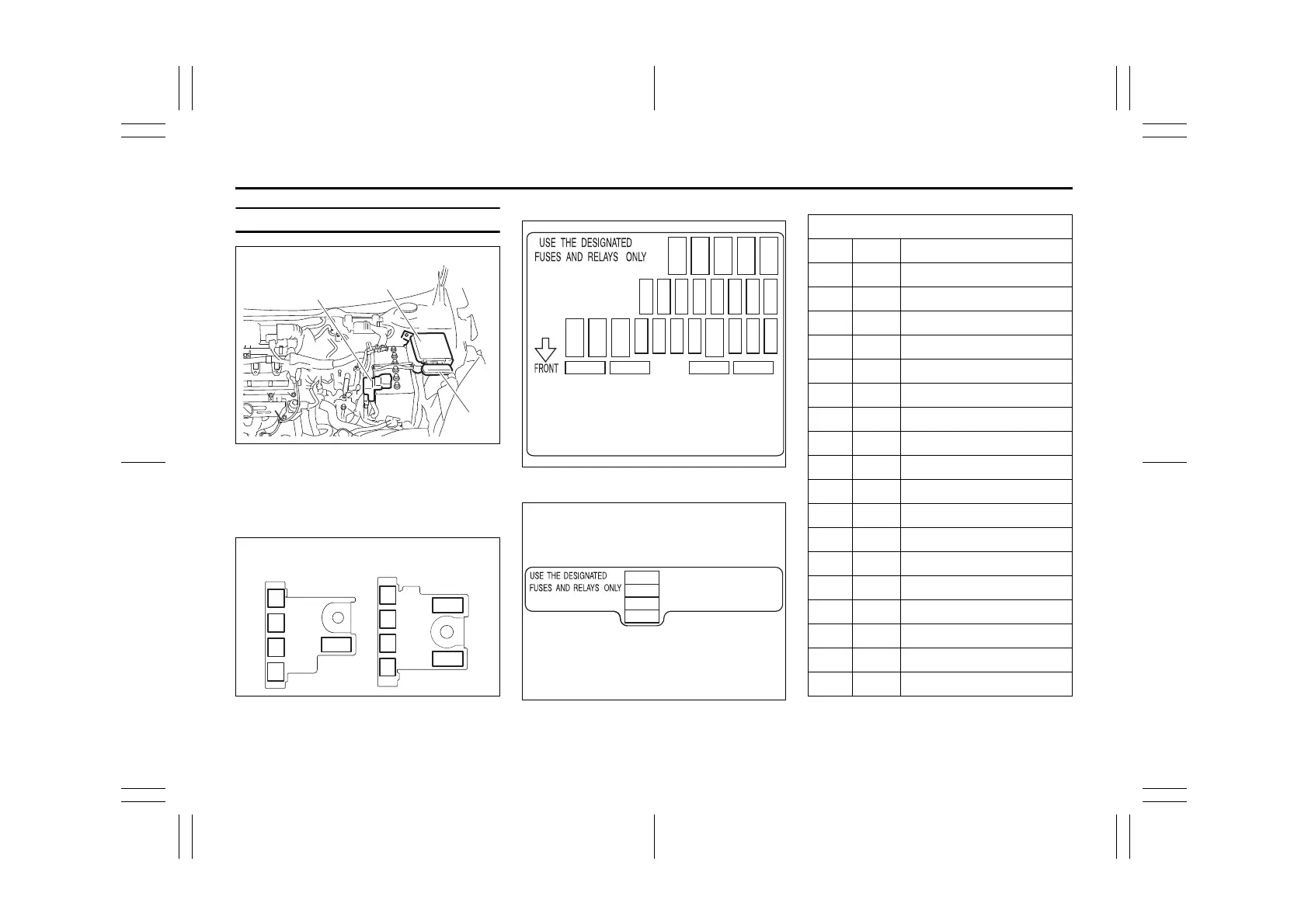

Fuses in engine compartment
52RM70310
(1) Main fuse box
(2) Relay box
(3) Sub relay box
Main fuse box
74LHT0715
Relay box
52RM70050
Sub relay box
52RM70060
(1)
(2)
(3)
EXAMPLE
(5)
(3)
(4)
(2)
(1)
(5)
(4)
(3)
(2)
(1)
(6)
without SHVS with SHVS
(7)
(12) (13) (14) (15) (16) (17) (18) (19)
(20) (21) (22) (24) (25) (26) (27) (28) (29) (30) (23)
(8) (9)
(10) (11)
(31) (32) (33) (34)
(35)
(36)
(37)
(38)
MAIN FUSE / PRIMARY FUSE
(1) 120 A FL1
(2)
100 A FL2
(3) 80 A FL3
(4) 100 A FL4
(5)
50 A FL5
(6) 150 A FL6
(7) 30 A Starting motor
(8)
30 A Blower fan
(9) 40 A Battery
*3
(10) 40 A ABS motor
(11) 40 A Ignition switch
(12) 30 A B/U
(13)
30 A Sub battery
*4
(14) – Blank
(15) – Blank
(16)
25 A ABS control module
(17) 15 A Headlight (Left)
(18) 15 A Headlight (Right)
(19) – Blank
