7-36
INSPECTION AND MAINTENANCE
52RM0-01E
*1: K12C engine models
*2: K10C engine models
*3: Models with Auto-on headlight system
or LED headlights
*4: Models with ENG A-STOP
*5: Models with air conditioning system
*6: Models with automatic transaxle or
CVT
*7: CVT models with ENG A-STOP

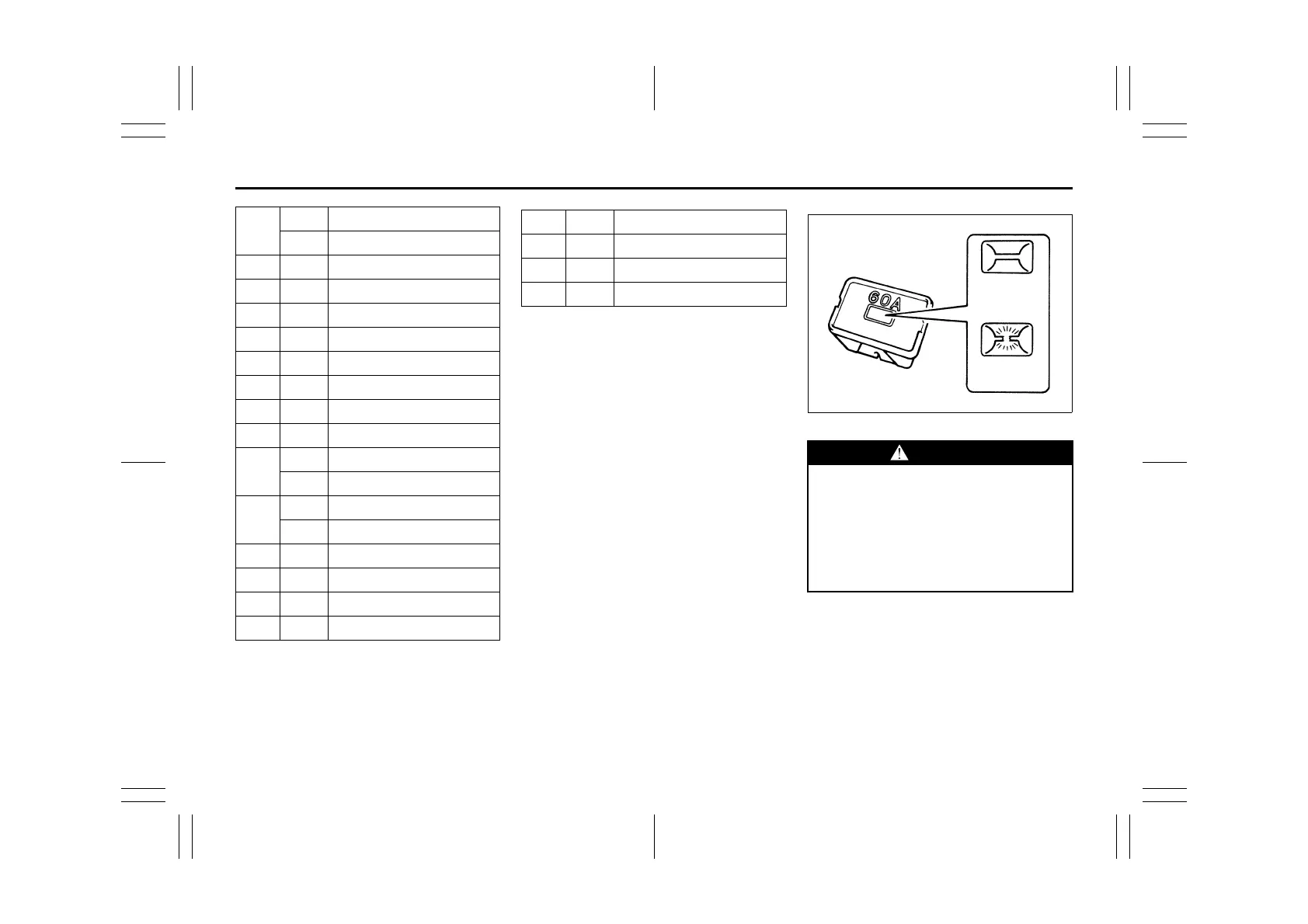

The main fuse, primary fuses and some of
the individual fuses are located in the
engine compartment. If the main fuse
blows, no electrical component will func-
tion. If a primary fuse blows, no electrical
component in the corresponding load
group will function. When replacing the
main fuse, a primary fuse or an individual
fuse, use a genuine SUZUKI replacement
parts or equivalent for individual fuses.
To remove a fuse, use the fuse puller pro-
vided in the fuse box. The amperage of
each fuse is shown in the back of the fuse
box cover.
60G111
NOTE:
Check that the fuse box always carries
spare fuses.
(20)
30 A
Radiator fan
*1
40A Radiator fan
*2
(21) – Blank
(22)
60 A
Power steering
(23) – Blank
(24) – Blank
(25)
20 A
Front fog light
(26)
10 A
Air compressor
*5
(27)
50 A
Ignition switch 2
(28)
15 A
Transaxle
*6
(29)
15 A
FI
*1
30 A
FI main
*2
(30)
15 A
T/M Pump
*7
20 A
Fuel Pump
*2
(31) – Blank
(32) – Blank
(33)
5 A
Starting Signal
(34) – Blank
(35) – Blank
(36)
25 A
Headlight high
*3
(37)
15 A
Headlight high (Right)
*3
(38)
15 A
Headlight high (Left)
*3
WARNING
If the main fuse or a primary fuse
blows, have your vehicle inspected
by an authorized SUZUKI dealer.
Always use a genuine SUZUKI
replacement. Never use a substitute
such as a wire even for a temporary
repair, or extensive electrical damage
and a fire can result.
