25
the wall surfaces surrounding the hob.
When you have installed the hob, make sure that
• the power supply cable is not accessible through cupboard doors or drawers
• there is adequate flow of fresh air from outside the cabinetry to the base of the
hob
• if the hob is installed above a drawer or cupboard space, a thermal protection
barrier is installed below the base of the hob
• the isolating switch is easily accessible by the customer
Before locating the fixing brackets
The unit should be placed on a stable, smooth surface (use the packaging). Do
not apply force onto the controls protruding from the hob.

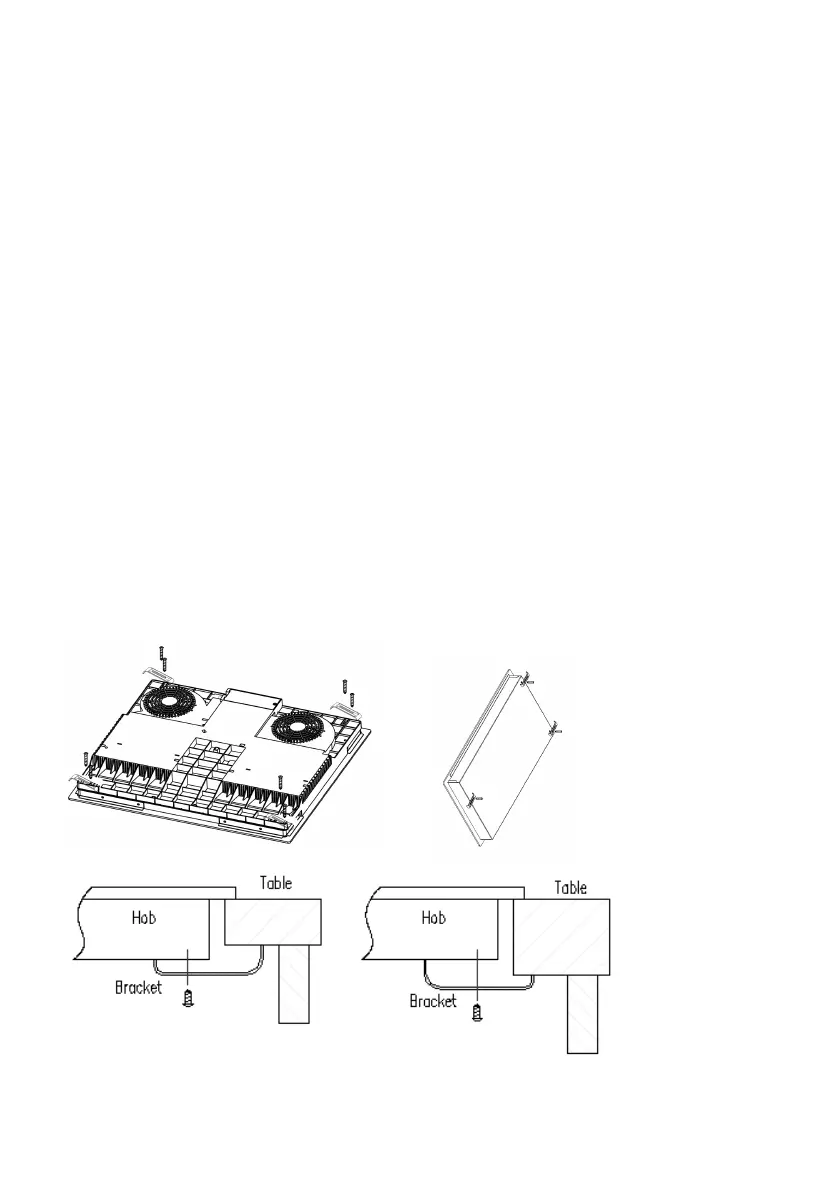

Adjusting the bracket position
Fix the hob on the work surface by screw 2 brackets on the bottom of hob(see
picture) after installation.
Adjust the bracket position to suit for different table top thickness.
SVI6391 SVI200
