Swagelok VCR Split-Nut - Male VCR Split-Nut Installation; Position Male Split Nut Halves; Slide Male Split Halves; Separate Male Split Halves for Removal

Swagelok, Split-Nut, VCR–TM Swagelok Company
© 2001 Swagelok Company
Printed in U.S.A.
5-01, CP
MS-CRD-0083, R2
Male VCR Split-Nut
1.
Place two male split nut halves
➀
around the VCR
gland shaft so their ends are flush and press the two
halves together.
2. Slide the split halves against the back of the gland
flange.
3. To remove, use a flat-blade screwdriver to separate
the two halves.
➀
You must use a set with one split nut half marked with
the Swagelok logo and one split nut half marked with
the words “VCR PAT’D.”

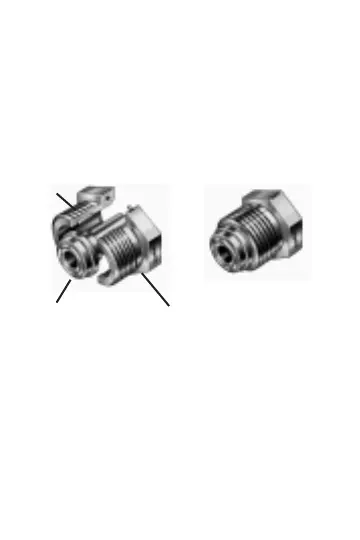

Split Half
Split Half
VCR Gland
