INSTALLATION
CAUTION
Never
remove
the
cabinet
or
bottom
cover
when
power
line
voltage
is
connected.
Highly
lethal
voltage
is
used
in
this
amplifier.
Allow
at
least
one
minute
for
capacitors
to
discharge
after
turning
the
amplifier
off
and
pulling
the
plug.
GENERAL:
i
nN
Refer
to
the
pictorial
in
Figure
1
when
making
the
instal-
lation.
Connect
a
short
length
of
coaxial
cable
(RG-58
or
RG-8)
from
the
transceiver
or
exciter
to
the
coaxial
input
jack
on
the
1200-X.
A
PL-259
type
connector
is
required
at
the
amplifier
end
of
the
cable.
This
cable
should
be
as
short
as
practical
and
preferably
not
more
than
5
feet
long.
.
Connect
the
relay
control
cable
to
the
auxiliary
relay
jack
on
the
Swan
270B.
When
using
the
1200-X
with
other
Swan
transceivers,
it
will
be
necessary
to
perform
the
following
steps:
Remove
bottom
of
transceiver
and
install
RCA
type
phono
jack
on
the
back
of
the
transceiver.
Be
sure
to
insulate
the
jack
from
the
chassis.
1200
X
IN
UT
ALC
:
ADJ
(b)
Locate
Relay
K1,
and
connect
a
wire
from
the
+12
volt
side
of
the
relay
coil
to
the
center
conductor
of
the
phono
jack.
Connect
another
wire
from
the
other
side
of
the
relay
coil
to
the
common
side
of
the
Phono
Jack.
By-pass
both
terminals
of
the
Phono
jack
with
.01
mfd
disc.
capacitors.
(TVI
suppression.)
Install
phono
plug
from
1200-X
into
phono
jack
on
transceiver
for
relay
control
of
the
amplifier.
On
On
2)
©
Connect
the
antenna
coax,
or
dummy
load,
to
the
output
jack.
If
a
low
pass
filter
is
to
be
installed
to
reduce
TVI,
connect
it
between
the
output
jack
and
the
antenna.
.
For
transceivers
or
exciters
other
than
Swan,
refer
to
the
inset
detail
on
the
1200-X
schematic
for
the
necessary
changes
to
the
relay
circuit.
Locate
the
terminal
strip
with
the
black
ond
red
wires
from
the
control
cable.
The
Terminal
strip
is
located
near
the
rear
of
the
chassis
next
to
where
the
relay
control
cable
exits
from
the
chassis.
.
See
the
special
instructions
at
the
back
of
the
manual
for
connecting
and
operating
the
ALC
with
the
270B
or
500CX
Transceivers.
COAX
TO
ANT

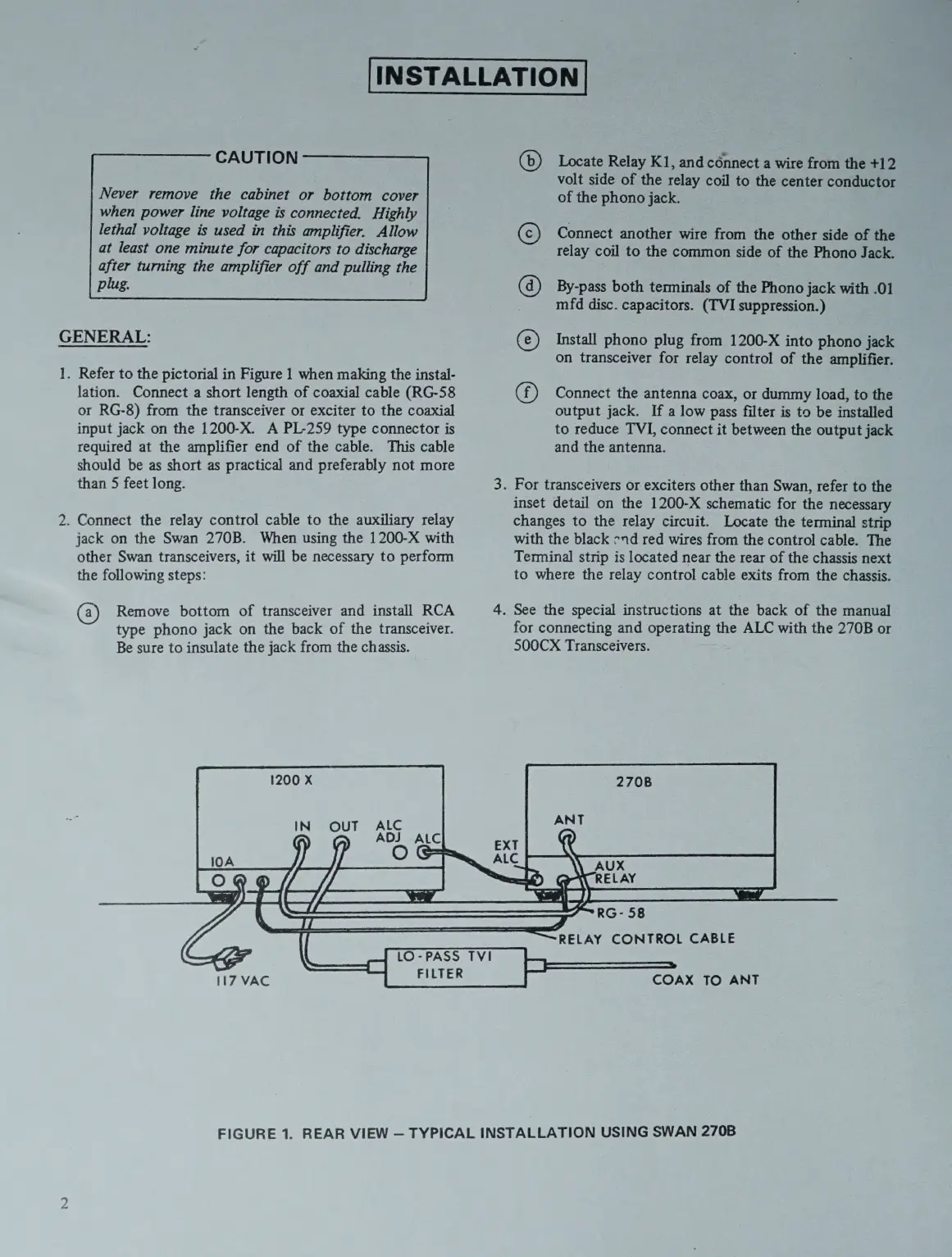

FIGURE
1.
REAR
VIEW
TYPICAL
INSTALLATION
USING
SWAN
270B
