Swann A850 - Connecting your Camera

3

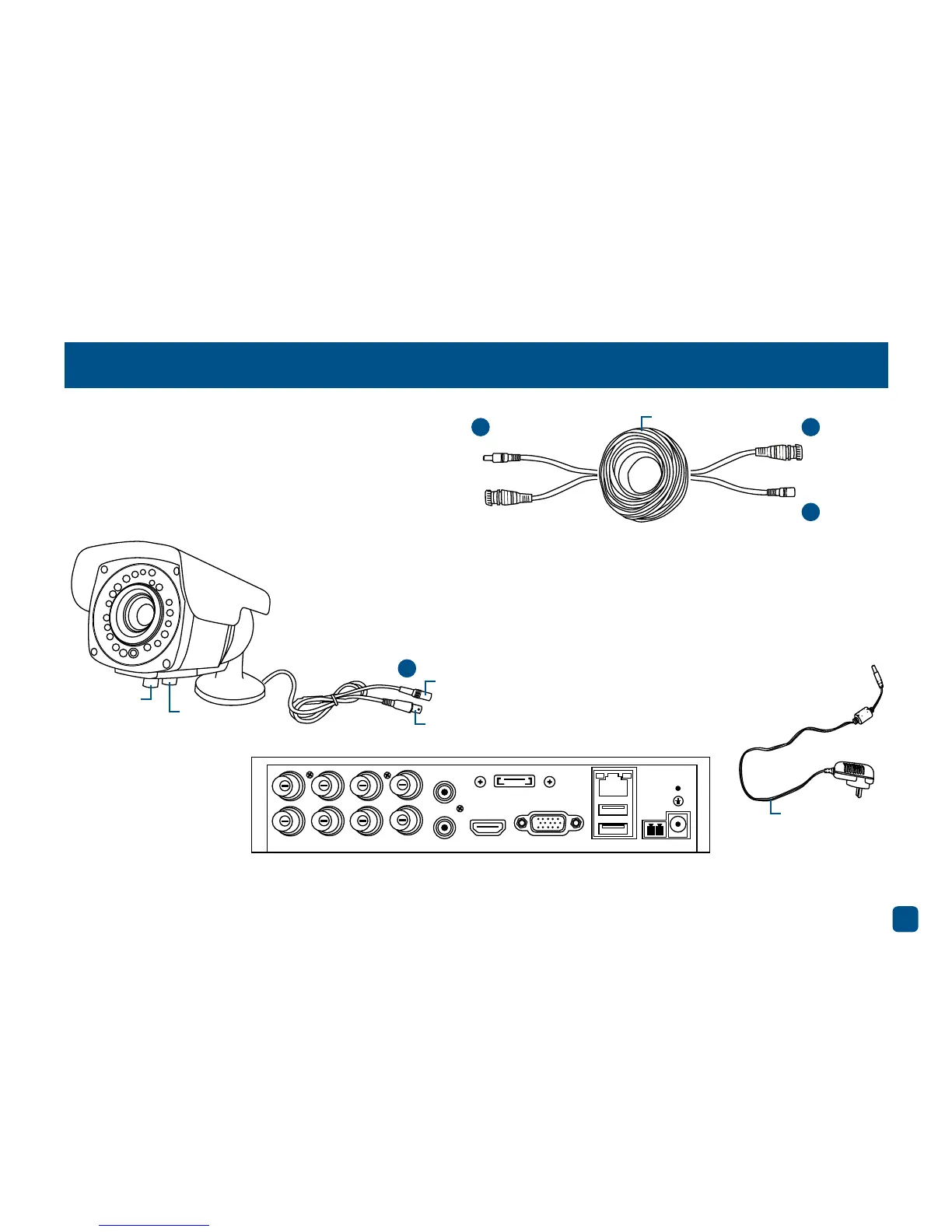

Connecting your Camera
1. Connect the video output and power
input connection on the camera to the
corresponding connections on the video
& power cable.
2. Connect the video connection on the
other end of the video & power cable
to one of the video inputs on the DVR.
Twist the connection to lock it in place.
3. Connect the power
adapter to the power input
on the video & power cable
then connect the power
connection to a spare wall
socket.
4. Use the zoom
function to adjust the
viewing angle and
the focus function to
sharpen the image.
PTZ
7
5 3
1
8
6 4
2
eSATA
HDMI LAN & USB B A
DC 12V
IN
VGAVIDEO IN AUDIO OUT
AUDIO IN
Video & Power Cable
Power Adapter
Power Input
Focus
Zoom
Video Output
1
21
3
