Swann Enforcer - Connecting the Camera

Connecting the Camera2

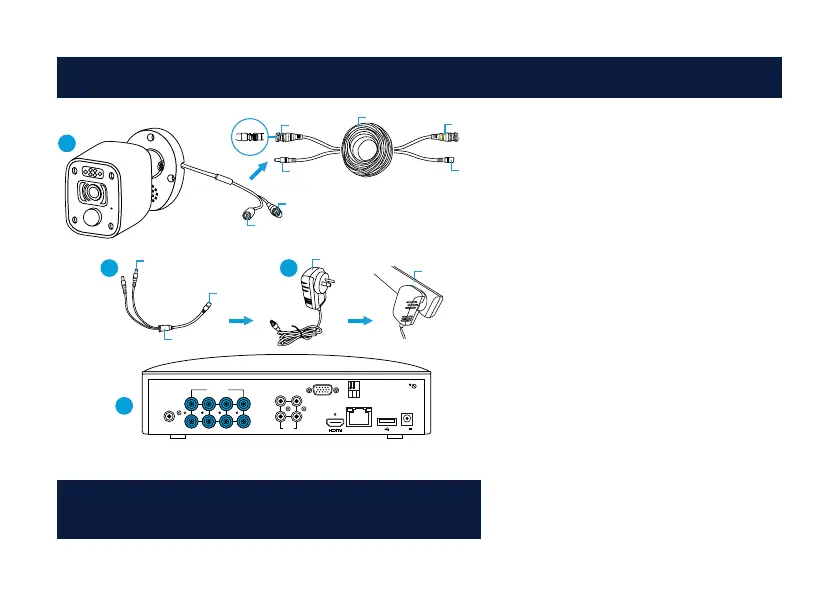

1. Connect the video output and pow-
er input connections on the camera
to the corresponding connectors on
the supplied video & power cable.
2. Connect the supplied power split-
ter to the power input on the video &
power cable (repeat this step if mul-
tiple cameras are included).
3. Connect the supplied power
adapter to the other end of the pow-
er splitter then connect the power
adapter to a spare wall socket.
4. Connect the video output on the
video & power cable to an available
camera input on your DVR. Twist the
connection to lock it in place.
For single camera packs, connect the supplied power adapter
directly to the power input on the video & power cable.
2 3
Twist to lock
connectors
Video Input
Video & Power Cable
Connect this to your DVR
Power Splitter
connects here
Power Output
Power Adapter
connects here
Power Splitter
Power Adapter
Video & Power Cable
connects here
Connect to a spare
power outlet
