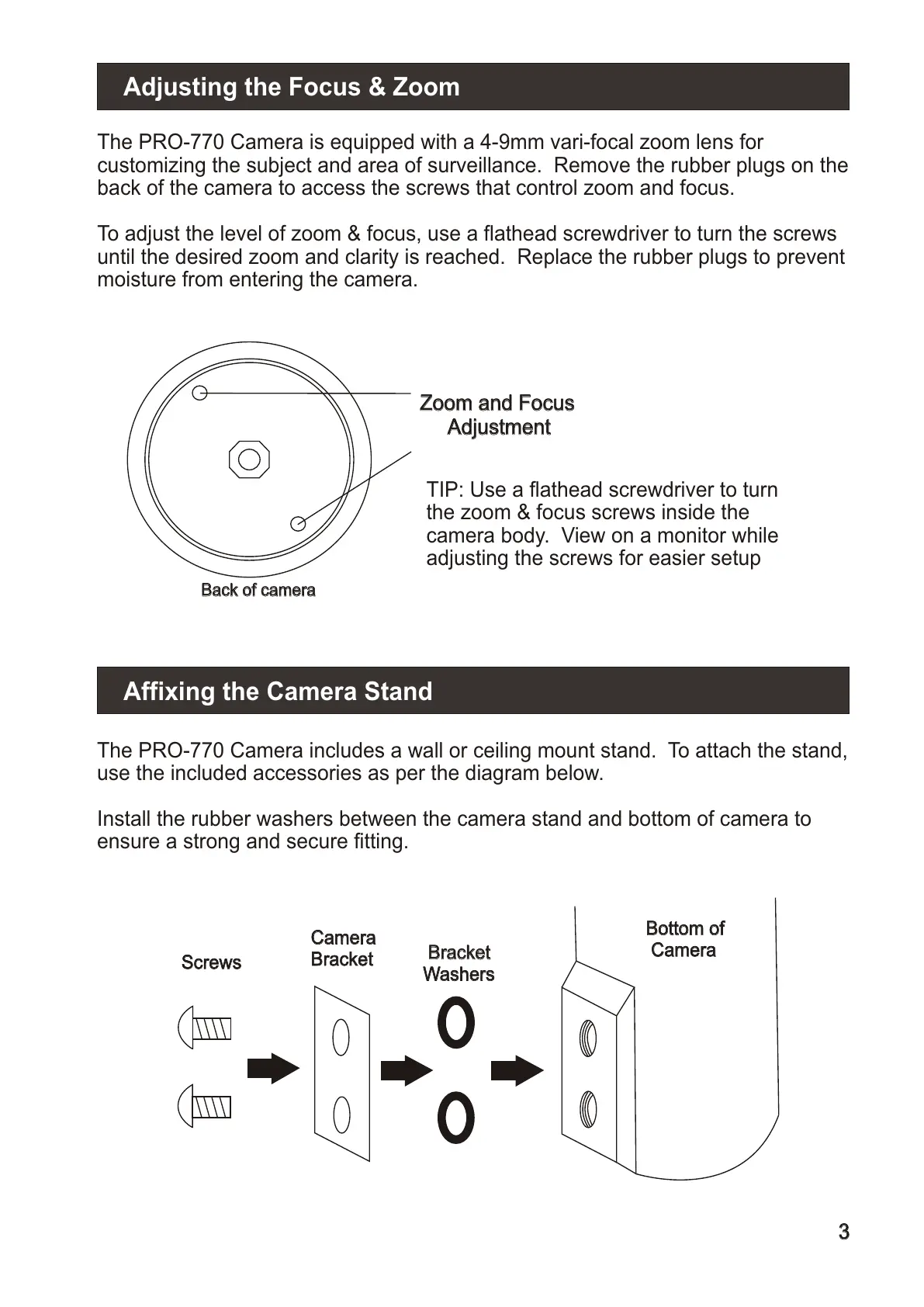

Adjusting the Focus & Zoom
The PRO-770 Camera is equipped with a 4-9mm vari-focal zoom lens for
customizing the subject and area of surveillance. Remove the rubber plugs on the
back of the camera to access the screws that control zoom and focus.
To adjust the level of zoom & focus, use a flathead screwdriver to turn the screws
until the desired zoom and clarity is reached. Replace the rubber plugs to prevent
moisture from entering the camera.
The PRO-770 Camera includes a wall or ceiling mount stand. To attach the stand,
use the included accessories as per the diagram below.
Install the rubber washers between the camera stand and bottom of camera to
ensure a strong and secure fitting.
Zoom and Focus
Adjustment
Zoom and Focus
Adjustment
TIP: Use a flathead screwdriver to turn
the zoom & focus screws inside the
camera body. View on a monitor while
adjusting the screws for easier setup
Back of cameraBack of camera
Affixing the Camera Stand
33
Camera
Bracket
Camera
Bracket
Bracket
Washers
Bracket
Washers
Bottom of
Camera
Bottom of
Camera
ScrewsScrews
