Swarovski Optik EL - Attaching the Strap

54
EL / ENEL / EN

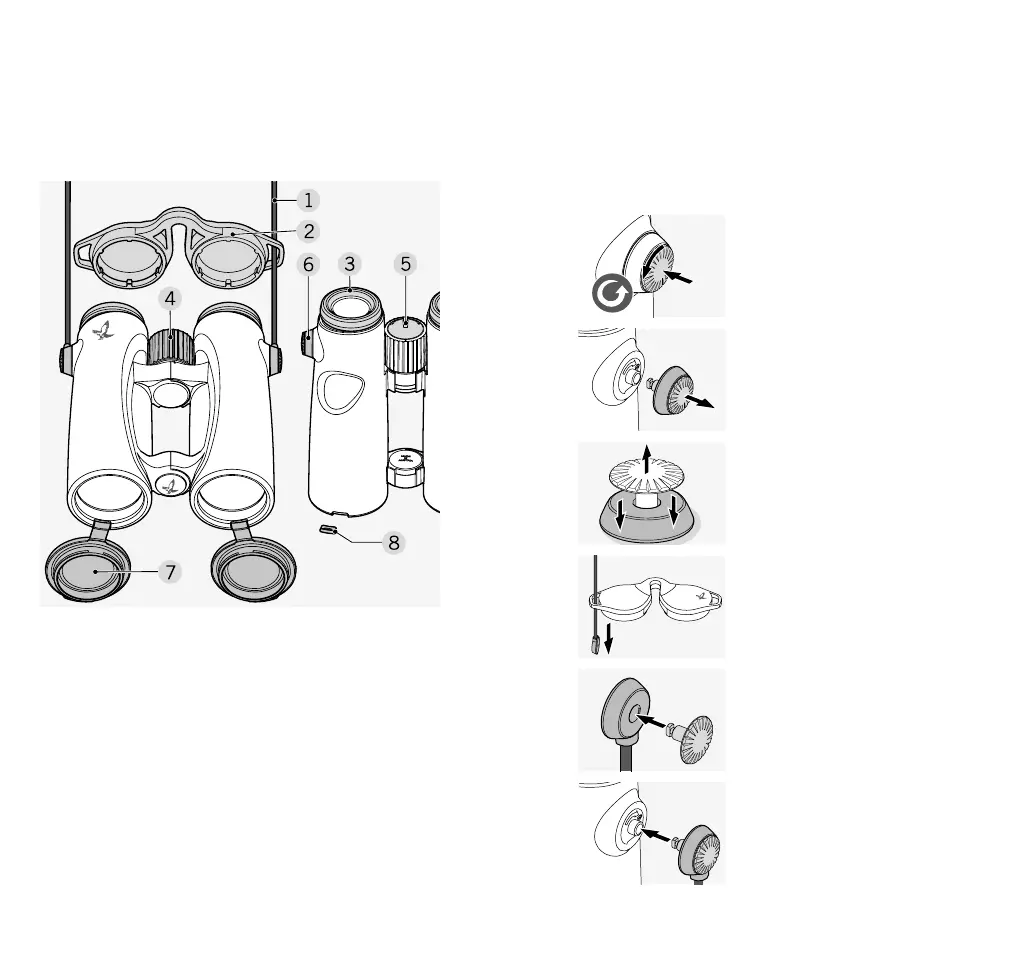

1. OVERVIEW
Supplied with the EL:
storage bag, cleaning cloth, soap, brush.
1 Carrying strap
2 Eyepiece cover
3 Twist-in eyecup
4 Focusing wheel
5 Diopter lock
6 Strap connector cover
7 Objective lens cover
8 Objective lens cover cap
2. ATTACHING THE STRAP
Press on the knob and rotate it coun-
terclockwise (90°).
Pull the knob out.
Remove the pin from the ring.
If you want to fit an eyepiece cover
or other accessory, pull the strap
through the eyelet of the cover.
Then press the pin into the strap until
it clicks.
Insert the knob in the designated
place on the binoculars.
The strap is not attached to the EL during delivery. You can
easily attach the strap or special accessories.
click
