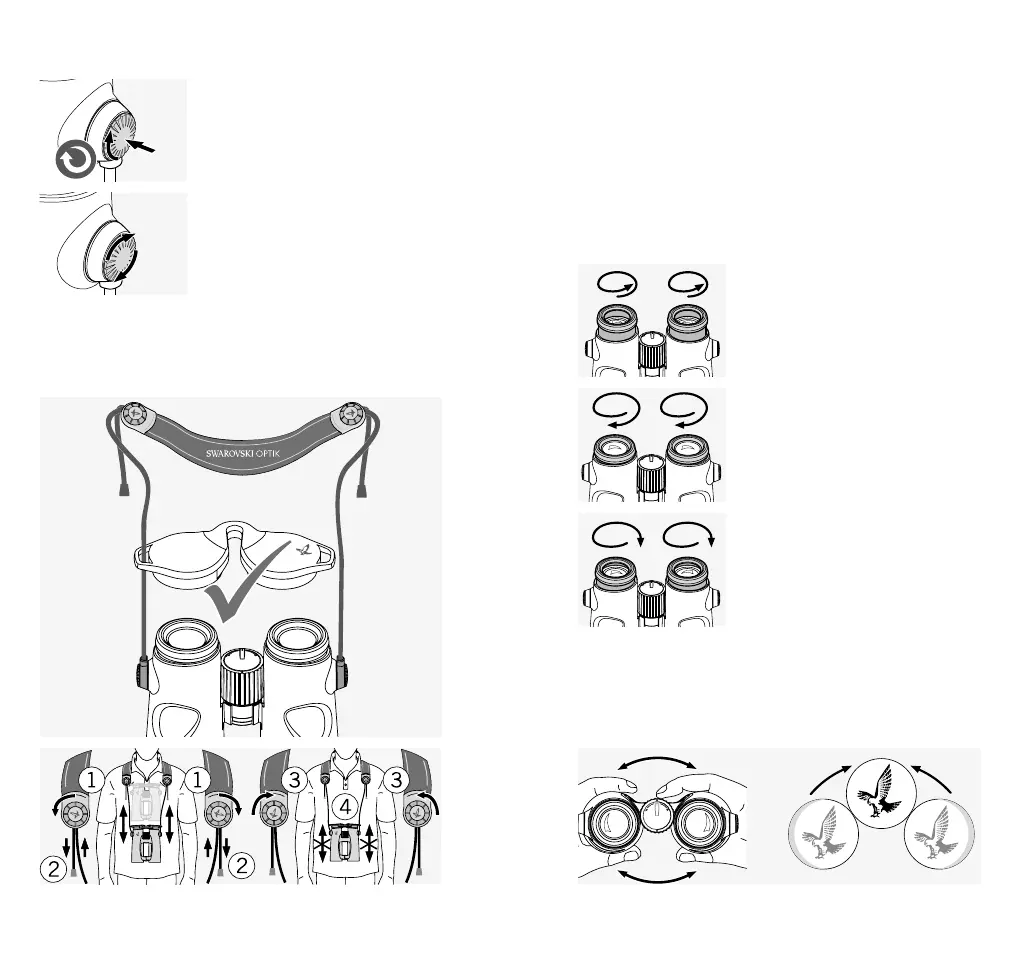

3.1 ADJUSTING THE TWIST-IN EYECUP
There are different setting positions to choose from, offering
a different distance from the eye to the eyepiece lens. This
allows you to adjust the eyecups separately to the position
that suits you.
Pos. A: Starting position without
eyeglasses: Turn the eyecups counter-
clockwise to the full extent.
Pos. B: Starting position with eye-
glasses: Turn the eyecups clockwise
as far as they will go.
Pos. C and D: There are two alterna-
tive intermediate stages for observing
with and without eyeglasses.
3.2 ADJUSTING THE DISTANCE BETWEEN
THE EYEPIECES
To see a single round image, adjust the two halves of the
binoculars until no irritating shadows can be seen.
EL / ENEL / EN
Press the pin in firmly and turn slightly
clockwise.
Release the pressure on the pin and
continue to turn it clockwise until it
clicks (approximately ¼ turn).
Note:
If the pin can no longer be turned without pressing it, it is
securely in place.
3. OPERATION
