GLOBAL
We reserve the right to alter specifications. 20170744
2

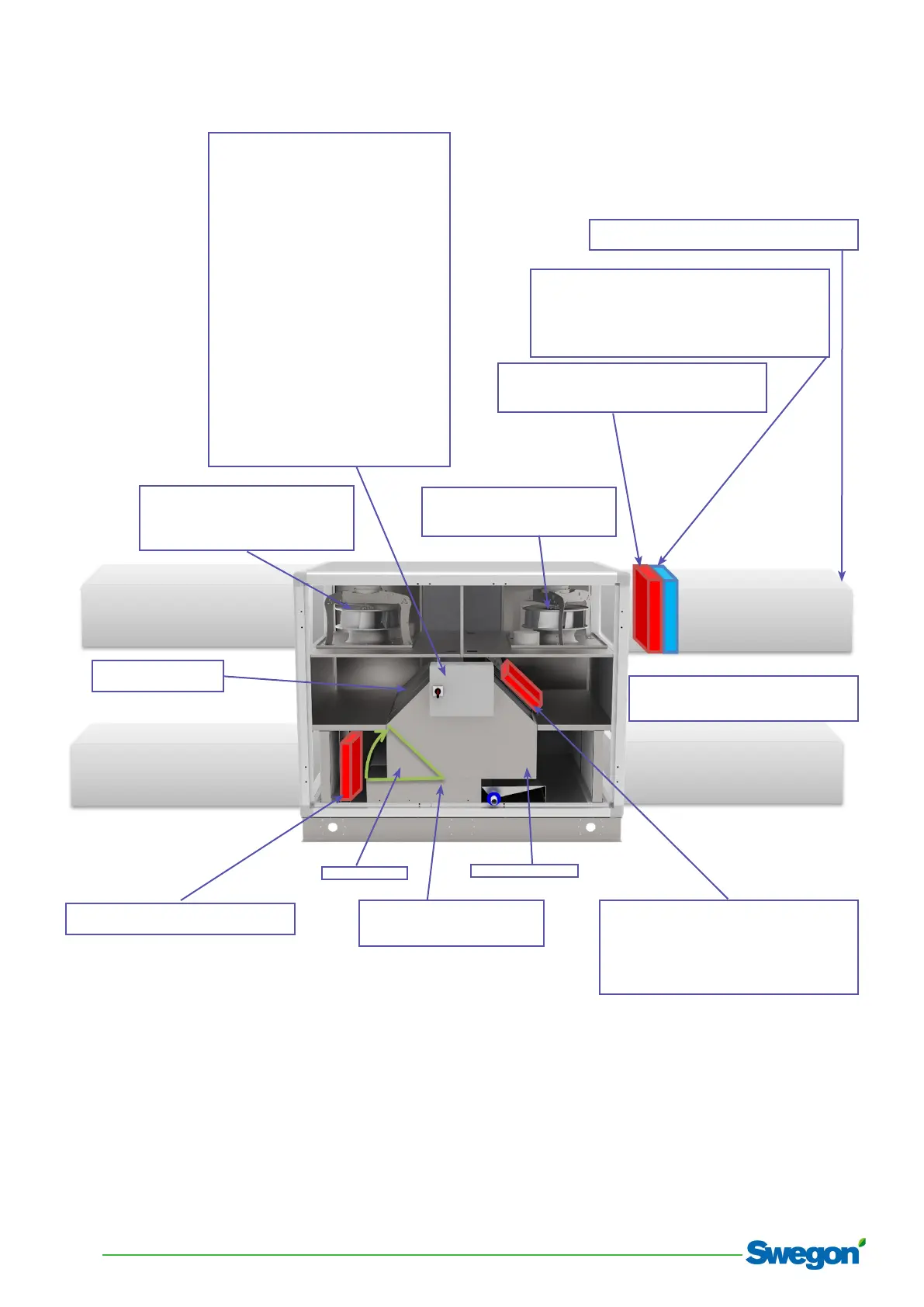

Setpoint - Supply Flow IV R4
Actual Supply Flow IV R7
Set Speed Supply IV W4
K2 Analog input AI1
K3 Analog input AI2
Working Mode IV R1
Speed Selection I II III IV R2
Type of unit for ow IV R3
Running Hours IV R9
Antifrost Status IV R10
Dampers Status IV R12
Postventilation IV R13
Control Mode IV R14
Filters Hours IV R16
Digital Outputs Status IV R19
CPs - Voltage reference 1 AV W2
CPs - Voltage reference 2 AV W4
Speed Mode IV W1
Speed Select - I II III IV W2
MANU/AUTO IV W3
BOOST IV W7
Control Board Reset IV W10
Running Hours Reset IV W11
Filters Hours Reset IV W 2
Setpoint - Exhaust Flow IV R5
Actual Exhaust Flow IV R8
Set Speed Exhaust IV W5
Exhaust/Supply ratio IV R6
T° exhaust AI5
Defrost Status IV R18
Setpoint – Preheat Temperature AVR1
OUT INT ELECT PREHEAT IV R20
T° out AI3
T° extract AI4
Bypass Status IV R11
Setpoint – T° Freecool AV W5
Force Bypass IV W6
Current Postheat setpoint AV R3
Setpoint – T° Postheat AV W1
Heat Stop IV W9T° antifrost internal
hydraulic postheater AI6
OUT INT HYDRAULIC POSTHEAT AV R5
OUT INT ELECT POSTHEAT IV R21
Setpoint – Comfort Temperature AV R2
Changeover Status IV R17
External coils Antifreeze Status IV R15
T° antifrost external hydraulic postheater AI8
OUT EXT HYDRAULIC POSTHEAT AV R6
OUT EXT ELECT POSTHEAT IV R22
T° antifrost external hydraulic postcooler AI9
Current Postcool setpoint AV R4
OUT EXT HYDRAULIC POSTCOOL AV R7
Setpoint – T° Postcool AV W3
Cool Stop IV W8
T° supply AI7
CP SENSOR MODBUS SUPPLY IV R23
