CB4 TAC4 REC

Installation manual

(v.08/2015)

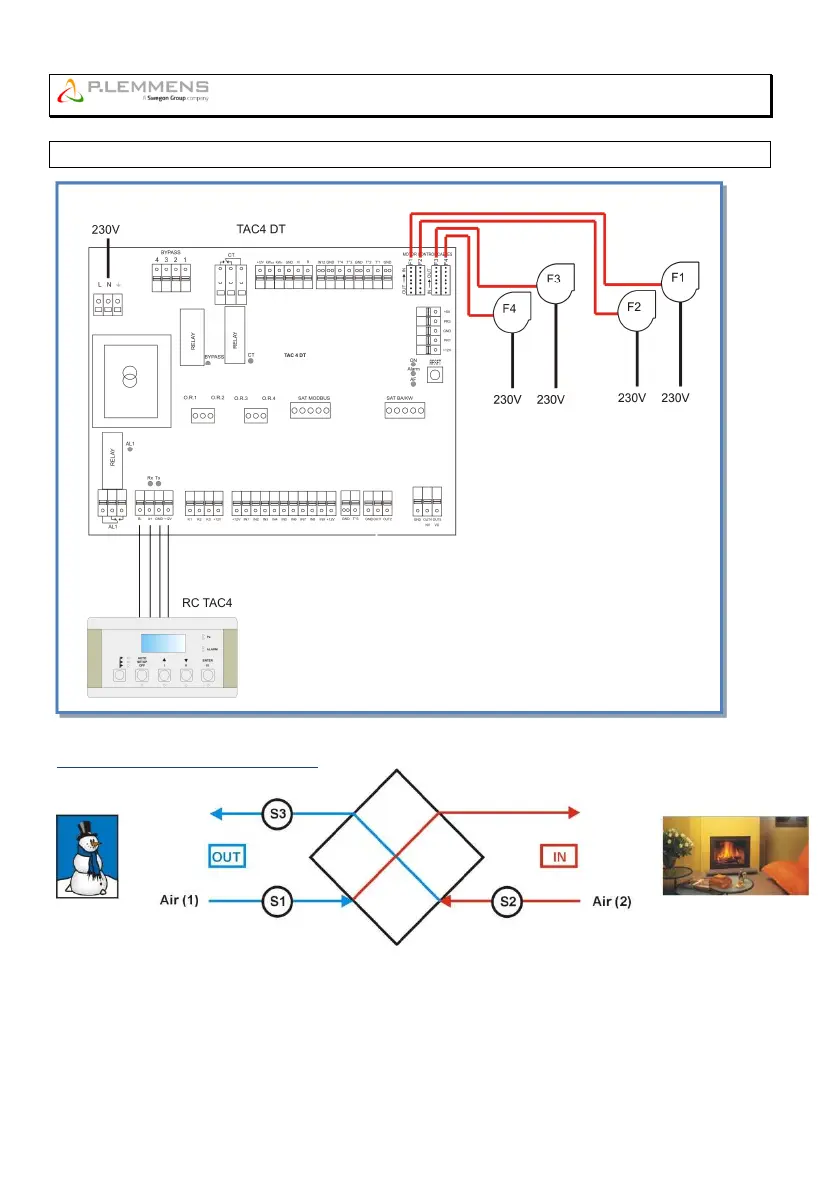

1) Principle of wiring

Positioning of the temperature sensors

Air (1) = fresh air (outside → inside) Air (2) = inside air (inside → outside)

A fixation bracket is mounted in the unit at the 3 corresponding locations.

EXHAUST FANS

SUPPLY FANS
