12
FB160 / FB170 / FB175 / FB235 / FB255 / FB265
spac110a
Dok: 101497C-GB 2126
OPERATING INSTRUCTIONS
The machine’s vibration elements start when the
throttle is increased. The best packing is achieved at
full engine RPM. Avoid running the engine at other
RPM. The machine’s vibration element stops when the
throttle lever is switched to stop.

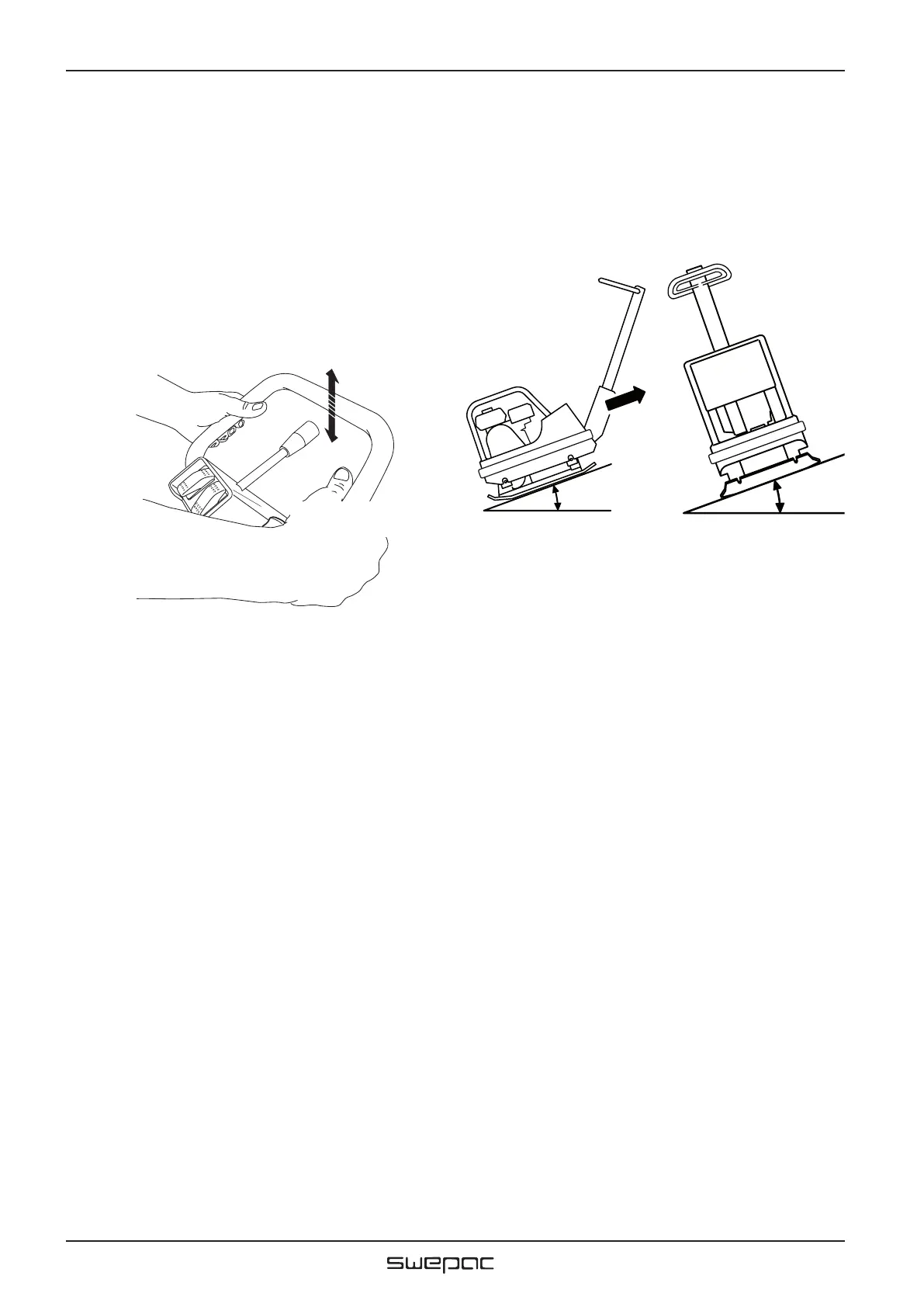

To move forwards, do not touch the forward/reverse
control. To reverse, pull the hoop towards the control
handle.
The machine is only designed to be used outdoors.
Work with the machine in daylight or other adequate
lighting. Ballast must be wetted or naturally damp. All
other use is discouraged.
NOTE! When moving up a slope, the machine should
be reversed.
The machine may not incline more than 20º when in
use or parked.
Reversing
Moving forwards
